Williams Sound ANT 024 Setup Instructions

Dipole antenna

Dipole Antenna Set Up Instructions

Model ANT 024

ONTAINS

1 - Antenna Bracket (BKT 016) with connectors

2 - 16" Antenna Rods (ANT 017)

20' - RG59 Coax Feedline with "F" Connectors

6 - Self-tapping screws (FSS 668 BK)

6 - 5/16" nylon cable clamps (PLC 006)

ESCRIPTION

The ANT 024 is a 75 Ohm, shortened dipole, designed for operation at 72-76 MHz. It is

intended for use with Williams Sound Receivers and the T4 or T35 Transmitters.

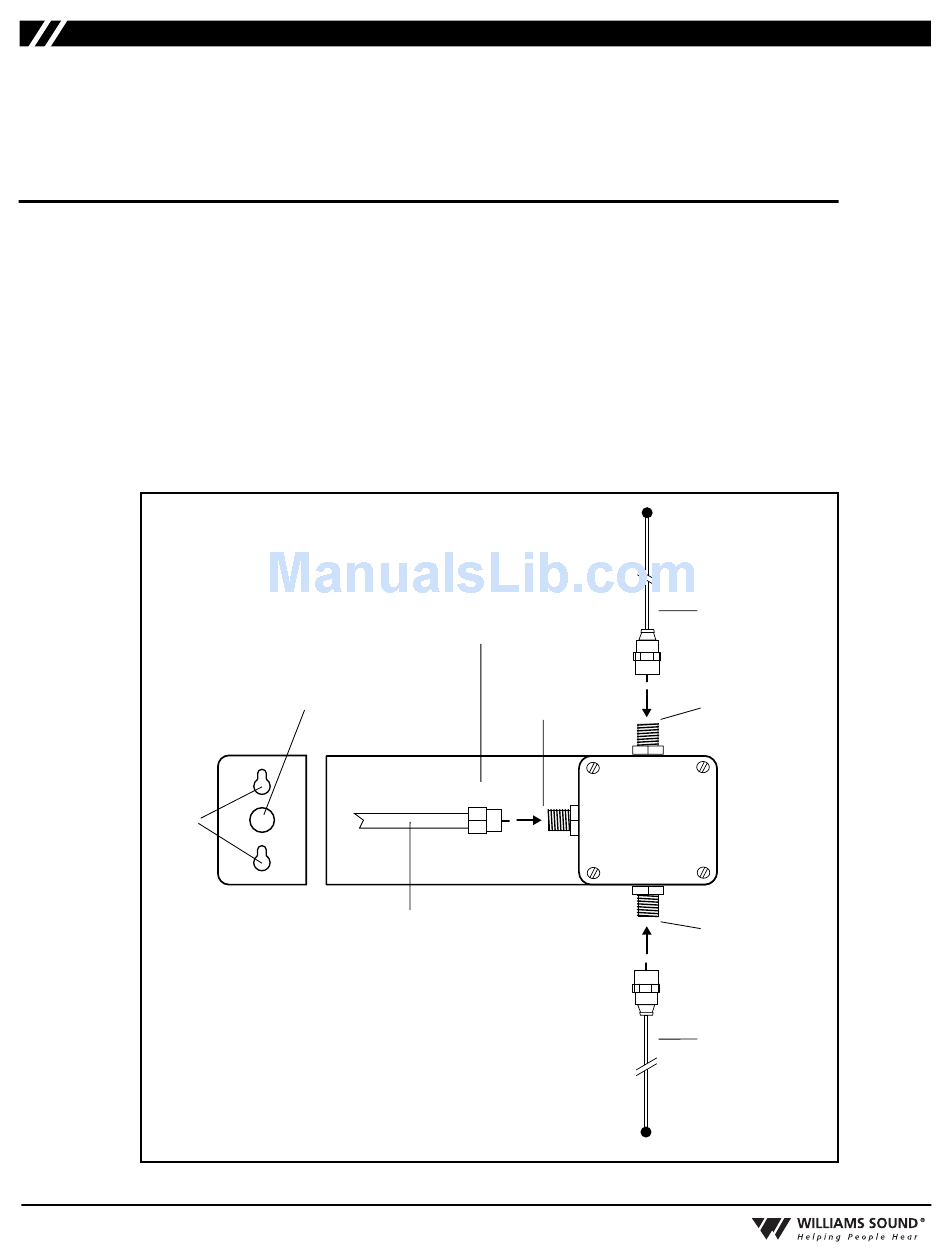

ANT 024 S

Mounting

Holes

Pass-Through Hole

(For Conduit Installations)

Coax Feedline

(Cable should exit

antenna at right angle

as shown.)

MAN 073G

Antenna Bracket

Finger-tight

Connection

Antenna Rod

Finger-tight

Connection

Finger-tight

Connection

Antenna Rod

Table of Contents

Need help?

Do you have a question about the ANT 024 and is the answer not in the manual?

Page 1 6 - 5/16" nylon cable clamps (PLC 006) ESCRIPTION The ANT 024 is a 75 Ohm, shortened dipole, designed for operation at 72-76 MHz. It is intended for use with Williams Sound Receivers and the T4 or T35 Transmitters. ANT 024 S...
Page 2 RACKET NTENNA SSEMBLY ROCEDURE Step 1: Select a mounting location for the Antenna Bracket. It is best to locate the antenna high on a wall, within line-of-sight of the area where the receivers will be used. Do not mount the antenna behind steel beams or other metal structures. Radio signals will generally pass through non-metal structures.
Page 3 Product Recycling for Customers in the European Union: Please do NOT dispose of your Williams Sound equipment in the household trash. Please take the equipment to a electronics recycling center; OR return the product to the factory for proper disposal.
Page 4 ® 10321 West 70th St., Eden Prairie, MN 55344 U.S.A. 800.843.3544 | 952.943.2252 | FAX: 952.943.2174 © 2006, Williams Sound Corp. MAN 073G www.williamssound.com...
