Williams Sound ANT 024 Installation Instructions

Dipole Antenna
ANT 024
The ANT 024 is a 75 Ohm, shortened dipole, designed for operation at 72-76 MHz. It is intended for use with Williams AV
receivers and the T55, T45, T35, or T27 transmitter.

Bracket-Antenna Installation Procedure:

1. Select a mounting location for the Antenna Bracket.
It is best to locate the antenna high on a wall, within line-of-sight of the area where the receivers will be used. Do not mount
the antenna behind steel beams or other metal structures. Radio signals will generally pass through non-metal structures. The
antenna can be mounted on a wall, in a corner, or behind a wooden beam. Antenna elements should be positioned vertically
for proper polarity and best coverage. If possible, avoid placing the antenna within four feet of steel beams or near structural
steel elements. Metal studs, duct work, and foil-backed insulation can absorb radio energy, greatly reducing the range of the
system.
2. Use the antenna bracket as a template to mark the position of the mounting holes.
3. Attach the antenna bracket to the mounting surface. Use appropriate wall anchors (not included) if necessary. If you need to
run the feedline through a wall, a 1/2" hole is necessary to pass the connector through.

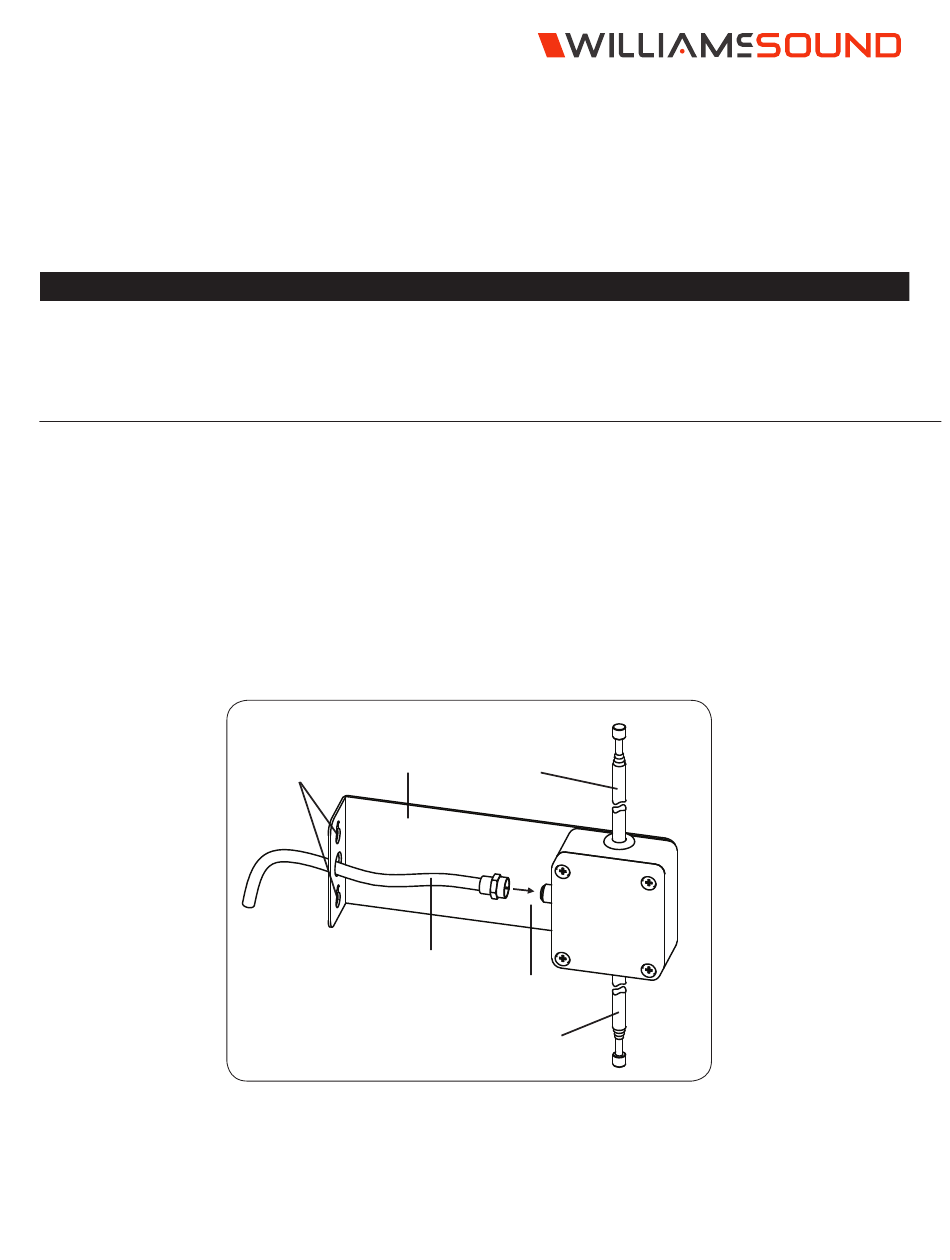

FIG. 1: ANT 024 Setup
Bracket
Mounting
Holes
Pass-Through Coax Feedline
Hole (For Conduit
Installations)
INSTALLATION INSTRUCTIONS
Extendable
Antenna
Finger-tight
Connection
Extendable
Antenna
MAN 073J
