Model ANT 034
Remote rubber duckie antenna for RPK-005 mounting

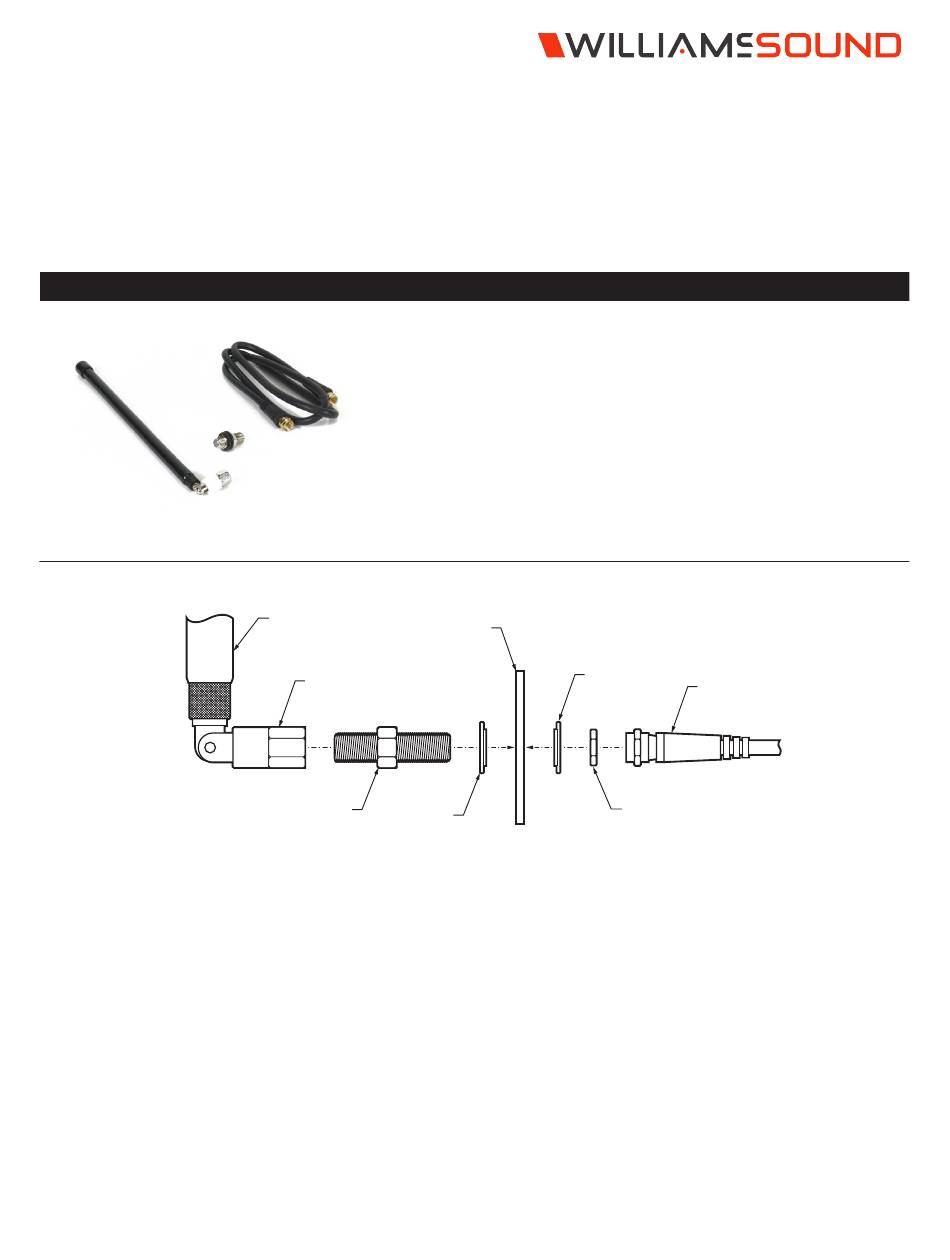

ANT 034 Assembly & Installation Procedure
1. The ANT 034 can be mounted to an audio rack with the RPK 005 (a 1/2-width, single-space rack bracket, ordered
separately). This solution is most commonly used when the transmitter will also be mounted in the rack.
2. Thread the ANT 021 rubber duckie on to the ANT 035. Turn the F-connector on the ANT 021 clockwise by hand until
connection is tight.
3. Install the washers with the smaller side facing the RPK 005 rack bracket as shown. Correct orientation of the washers is
crucial to maintaining antenna isolation. Tighten the nut with moderate pressure using the proper size wrench.
4. Thread one end of the WCA 086 3' coax cable on to the back of the assembled bracket-antenna unit. Use fingers only to
tighten.
5. Attach other end of WCA 086 3' coax cable to the F-Connector "Antenna" jack on the Williams AV 72-76 MHz transmitter
(i.e. PPA T35, T27). Use fingers only to tighten.
NOTE: Do not bend coax cable sharply at any point. The ANT 034 rubber duckie antenna should be vertical for best
performance, and to comply with FCC rules.
The ANT 034 is a 75 Ohm rack mountable remote antenna designed for 72-76
MHz operation. It is intended for use with Williams AV FM transmitters (i.e. PPA T35,
PPA T27).
ANT 021 RUBBER
RPK 005
DUCKIE ANTENNA
RACK-MOUNT BRACKET
(NOT INCLUDED)
ANT 035 RIGHT ANGLE
F CONNECTOR
CNR 004
(RF CONNECTOR)
FSW 500
WASHER
INSTALLATION INSTRUCTIONS
FSW 500
WASHER
WCA 086
3 FT.COAX CABLE
WITH F CONNECTORS
NUT (FNW001)
A308
MAN 174B
