Reliable 1500FR Instruction Manual

Reliable 1500FR Instruction Manual

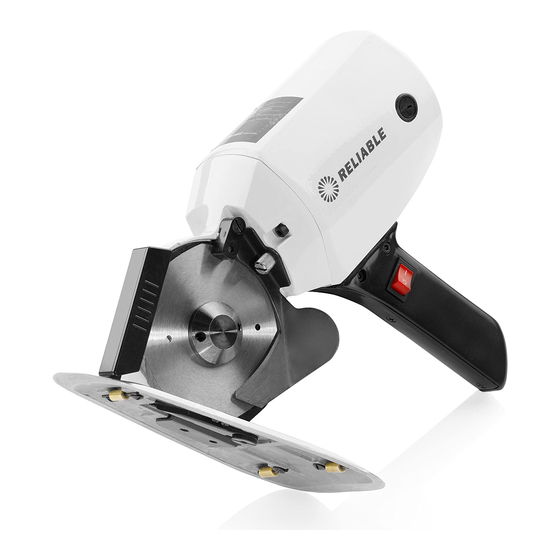

Electric cloth cutter

Advertisement

Quick Links

1500FR
ELECTRIC CLOTH CUTTER
INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1500FR and is the answer not in the manual?

Questions and answers

Summary of Contents for Reliable 1500FR

  • Page 1 1500FR ELECTRIC CLOTH CUTTER INSTRUCTION MANUAL...
  • Page 2 We would like to thank you, and congratulate you for purchasing the 1500FR octagonal cutting knife from Reliable. The Reliable 1500FR can cut from a single ply of fabric right up to 1” thick, making it a very versatile, lightweight machine. Ideal for sample making or other light-duty operations.
  • Page 3 INSTRUCTIONS Before cutting, connect the power cord to the machine and sharpen the knife-edge by pushing the spring loaded projection-grinding switch (B) several times. Lubrication 1. Every 50 hours: Add a small quantity of grease through the grease cup and turn the cap (A) in. 2.
  • Page 4: Specifications

    SPECIFICATIONS KNIFE SIZE 100MM KNIFE SHAPE: OCTAGON CUTTING CAPACITY: 25MM (1") NET WEIGHT: 2.9KGS VOLTAGE: SINGLE PHASE 100V – 120V / 220V – 240V POWER: 100W OPERATION – LUBRICATION CARE...
  • Page 5 MOTOR ASSEMBLY & ACCESSORIES Other standard accessOries: KNIFE (S135) – 1 PC. CARBON BRUSH (S104) – 1 SET GRINDING WHEEL (S150) – 1 PC. KNIFE OIL FELT (S140) – 1 PC. S-101 STATOR S-122 CONNECTING TERMINAL S-102 ROTOR S-123 GROUND SCREW CONDENSER DRIVE GEAR S-103...
  • Page 6 STANDARD & BASE ASSEMBLY S-163 S-143 SCREW FOR SPRING FRONT ROLLER S-144 SAFETY PLATE S-164 ROLLER SHAFT (FRONT) S-165 ROLLER SHAFT(REAR) S-145 SCREW FOR PLATE S-146 SPRING WASHER FOR PLATE S-166 SCREW FOR ROLLER SHAFT S-147 GREASE CUP S-169 OILER S-148 CAP FOR GREASE CUP S-170...
  • Page 7 GRINDING WHEEL REPLACEMENT GUIDE Hold the grinding wheel by hand. Insert the attached lock shaft to the hole provided in the grinder shaft and turn to arrow indiation. Remove used wheel and replace with a new one. GRINDERSHAFT LOOSEN LOCK SHAFT ALLEN KEY FASTEN EMERY WHEEL...
  • Page 8 Reliable on an exchange basis, and will be either new or refurbished to be functionally equivalent to new. If Reliable is unable to repair or replace a Reliable Product, it will refund the current value of that Reliable Product at the time the warranty claim is made.
  • Page 9 1 800 268 1649 www.reliablecorporation.com...
