Myryad MDV 300 Owner's Manual

Progressive scan dvd-video player
Hide thumbs Also See for MDV 300:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
MDV 300
Progressive Scan
DVD-Video Player
Owner's manual
DVD Player

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDV 300 and is the answer not in the manual?

Questions and answers

Related Manuals for Myryad MDV 300

Summary of Contents for Myryad MDV 300

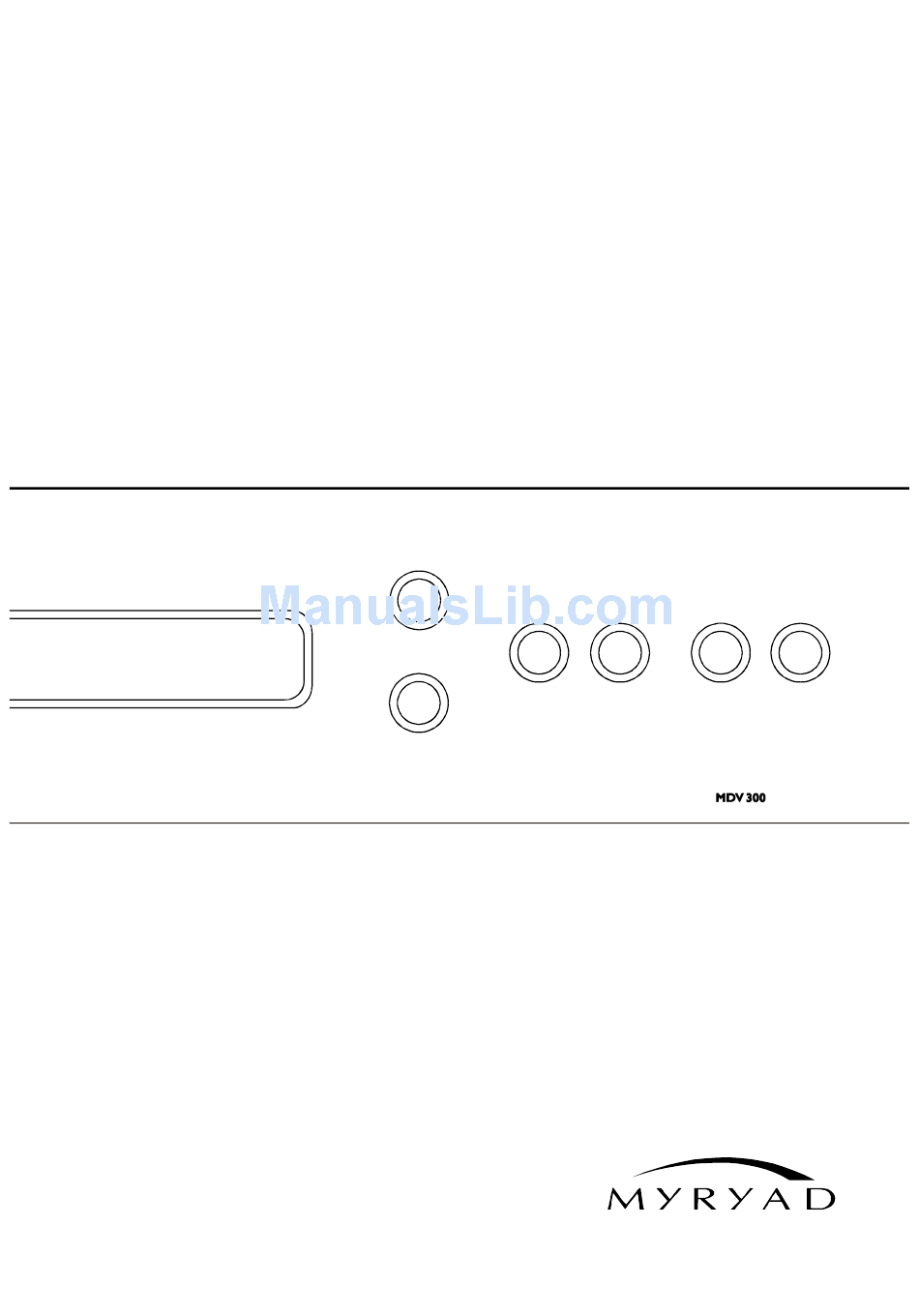

  • Page 1 MDV 300 Progressive Scan DVD-Video Player Owner’s manual DVD Player...

  • Page 2: Important Safeguards

    SAFETY INFORMATION TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. CAUTION risk of fire and electric shock, do not remove the cover (or back) of the unit. Refer s ervicing only t o qualified service personnel. The lightning flash with arrowhead symbol, within anequilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...

  • Page 3: Table Of Contents

    Connecting to stereo amplifier Connecting to digital amplifier Connecting to 5.1 readyamplifier GETTING STARTED Play a disc OSD - DVD OSD - VCD/CD MP3 mode Kodak Picture mode FUNCTION BUTTONS SETUPMENU SMART MY-LINK MYRYAD A/V REMOTES TROUBLESHOOTING SPECIFICATIONS Page 15-21...

  • Page 4: Essential Setup

    ESSENTIAL SETUP Video outputs The player is equipped with the following video output ports: Interlaced scan output: Composite video (CVBS), S-Video, Y Pb Pr, SCART Y P b Pr Progressive scan output: The factory default video output DEFAULT setting is S-Video (interlaced scan) In this mode the active video output ports are: Composite video (CVBS) and S-Video.
  • Page 5 Audio outputs (analogue) The player can provide either stereo (Left and Right) output or 5.1 channel decoded output (from Dolby Digital Sources). Factory default audio output is: DEFAULT Stereo Left and Right only (Downmix) For 5.1 decoded output connection, the following setup is required: After system connection is completed (see "...
  • Page 6 Accessories Your MDV 300 is supplied w i t h the following accessories: - Separatemains power cord to suit country of sale.

  • Page 7: About Dvd

    About DVD DVD (Digital Versatile Disc) is a digital video medium using the MPEG II format and featuring a variety of revolutionary entertainment capabilities. The MPEG II video compression technology provides capacity for an excellent picture of at least 500 lines of resolution on screen, up to 8 language soundtracks, up to 9 views from different camera angles and up to 32 language subtitles (provided the DVD disc itself supports these features).

  • Page 8: About Mp3

    INTRODUCTION This player is compatible with the following disc types: single sided / double sided single layered / double layered CD-DA CD-MP3 VCD/SVCD Photo CD CD-R / CD-RW* DVD-R/DVD+R* *NOTE: Some PC application files on CD-R or CD-RW CANNOT be accepted by the unit, e.g. CD-ROM under PC Windows, etc.

  • Page 9: About The Player

    About the player Front panel Remote sensor Display panel Standby button Rear panel Down Mix Audio 2 Channel L/R Composite (CVBS) Video Coaxial Digital Audio STEREO DIGITAL 5 . 1 C H A N N E L S U R R O U N D ANALOGUE COAX FRONT...

  • Page 10: Remote Control

    INTRODUCTION Remote control Some features of the player can only be performed by the remote control. Some features described in this owner'smanual are related to the disc's encoding. Some features m a y n o t be available, if the disc encoding does not support the feature.

  • Page 11: System Connection

    SYSTEM CONNECTION connect theACpower socket to the w all outlet before the system connection is completed Connecting to a TV (Interlaced) STEREO ANALOGUE CVBS Y / G Pb/B Pr/R COMPONENT VIDEO OUTPUTS Green Blue Audio L/R & video (CVBS) to TV audio L/R &...

  • Page 12: Connecting To Progressive T V

    Connecting to progressive scan TV White STEREO ANALOGUE CVBS P b / B Pr/R C O M P O N E N T VIDEO OUTPUTS Green Blue Audio L/R to TV audio L/R input After connection completed, press Y Pb Pr progressive scan connection provides the best picture quality.

  • Page 13: Connecting To Digital Amplifier

    SYSTEM CONNECTION SYSTEM CONNECTION Connecting to digital amplifier STEREO DIGITAL 5 . 1 C H A N N E L S U R R O U N D ANALOGUE C O A X FRONT CVBS L E F T OPTICAL Pb/B Pr/R S-VIDEO...

  • Page 14: Getting Started

    GETTING STARTED Unpack the unit. Read through thisowner's manual before installation and use. Load batteries into the remote control unit. Connect the system. Connect the power cable to the p layer and then to the A C power outlet. Set the POWER switch on the rear panel to the ON position.

  • Page 15: Osd - Dvd

    Press button. An On Screen Display (OSD) indicator will appear in the upper part of the T V screen w ith the d isc information and o perating status. The first press o f the OSD button will bring up just t h e Playback time/remain time display.

  • Page 16: Mp3 Mode

    GETTING STARTED MP3 mode Disc Track Disc type current track / total tracks Play Track 01 Track 02 Track 03 Track 04 Track 05 Now Play: Track 02.MP3 Artist: _ Song: _ Genre: _ Selection high light (Press ENTER button to play this track) Auto playback The player will load the MP3 disc and will play all tracks in the root directory.

  • Page 17: Kodak Picture Cd Mode

    Advanced Photo System (APS) color print film) at the time o f processing in Kodak Express store displaying "Kodak Picture CD" sign. W h e n y o u r order is returned, you receive your prints, negatives, and your full roll of pictures safely stored on you KODAK Picture CD.

  • Page 18: Important Note

    BUTTON FUNCTIONS Standby ON / OFF STANDBY Open / Close disc tray OPEN Progressive/Interlaced ScanMode To switch the player into or out of standby mode: Press STANDBY button STANDBY button on the front panel (Always switch the player into standby mode after use) To open and close the disc tray: Press OPEN/CLOSE button OPEN/CLOSE button on the front panel...
  • Page 19 Video EQ Volume level / Mute Play / Pause / Step/ Stop The player has a built in video equalizer, to allow the picture to be adjusted a s necessary: VIDEO E Q Press button, Video Equalizer menu appears: Video Equalizer Brightness Sharpness Color...

  • Page 20: Slow Motion Playback

    Skip Forward / Backward Scan Forward / Backward The unit is m uted i n SCAN mode. Slow motion playback The unit is m uted when in SLOW mode Press to skip to the next chapter Press to skip to the previous chapter Player will not advance o r reverse during "WARNING"...

  • Page 21: Setupmenu

    BUTTON FUNCTIONS Select an item in a menu On Screen Display Menu Disc Title / Menu Disc MENU Disc menu is a DVD disc feature, allowing users to select functions on screen.When playing a VCD or SVCD disc, the MENU key switches the PBC function “on”...
  • Page 22 GOTO a specific point NOTE Some DVD discs do not allow the GOTOfunction. GOTO does NOT function during Program playback. Repeat NOTE Some DVDs do not allow the repeat function. A-B repeat NOTE Some DVD discs do not allow A-B function. BUTTON FUNCTIONS To start playback at a particular point (Time, Title o r Chapter) Press the GOTO button...

  • Page 23: Numeric Key Pad / Direct Program Access

    BUTTON FUNCTIONS Numeric Key Pad / Direct Program access Multi-Audio Soundtrack NOTE In many case, Audio Language selection will be available in the D VD disc start menu. Multi-Angle Note: Many DVDs do not contain multiple camera angles so theANGLE button will have no effect will be displayed briefly in the top left corner of the screen.
