Myryad MDV 300 Owner's Manual

Progressive scan dvd-video player
Hide thumbs Also See for MDV 300:
Table of Contents

Advertisement

Quick Links

MDV 300
Progressive Scan
DVD-Video Player
Owner's manual
DVD Player

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDV 300 and is the answer not in the manual?

Questions and answers

Related Manuals for Myryad MDV 300

Summary of Contents for Myryad MDV 300

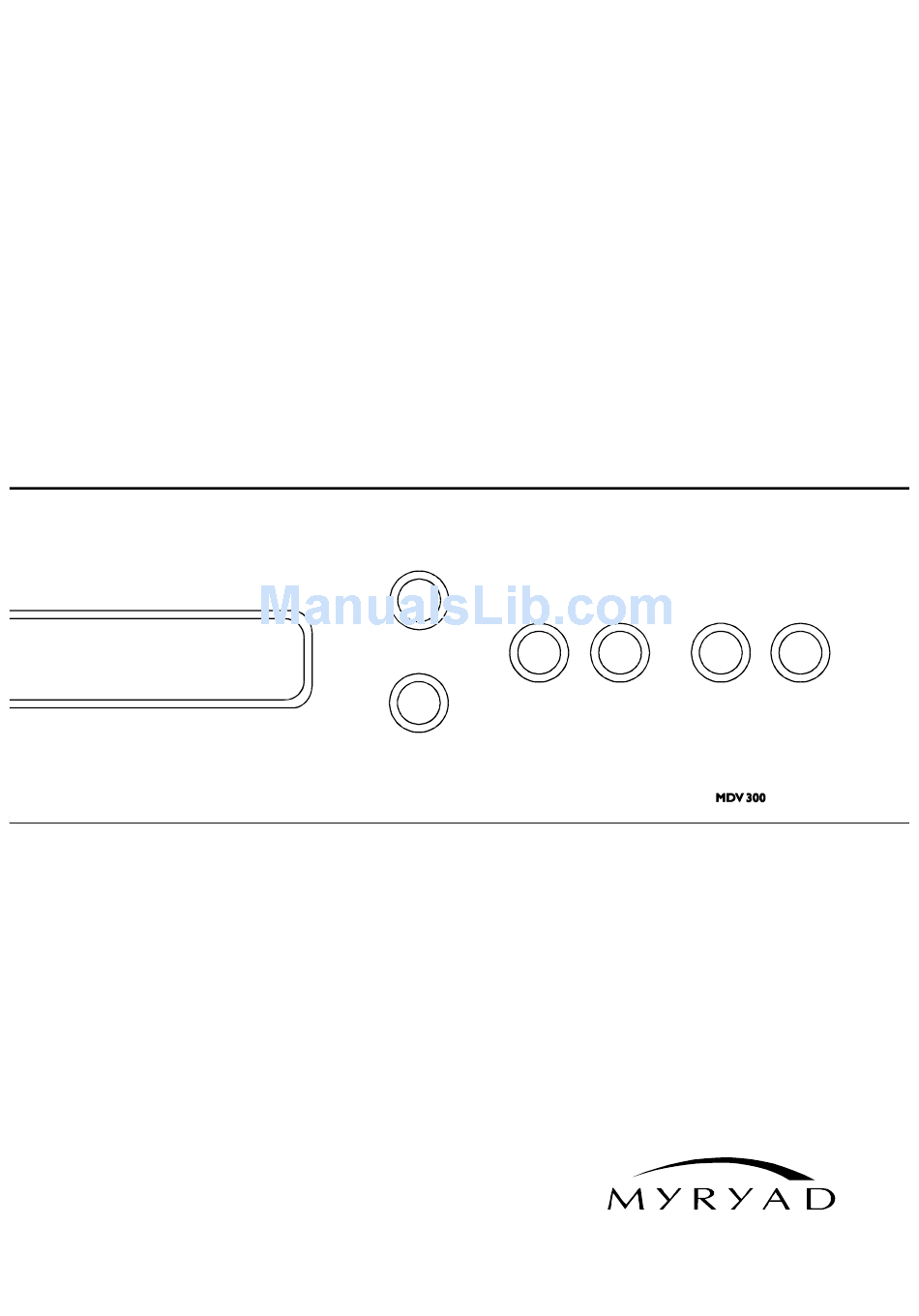

  • Page 1 MDV 300 Progressive Scan DVD-Video Player Owner’s manual DVD Player...

  • Page 2: Program Mode

    BUTTON FUNCTIONS Subtitles A DVD may contains up to 32 subtitles. SUBTITLE When playing a disc, press the button repeatedly to select the desired language. The status will be displayed on screen....... 1 3 Eng ......
  • Page 3 SETUP MENU Various features of the player can be adjusted in Video SETUP menu: In STOP or STOP RESUME mode, press Enter this menu to alter the video setting SETUP button. SETUP menu appears. SETUP Press button ENTER Highlight the "Video" icon press ..

  • Page 4: Important Note

    If your TV is “single standard” set “TV system” to PAL or NTSC as appropriate. The LPCM Bitstream MDV 300 will convert PAL to NTSC or NTSC to Bitstream PAL when required but the best picture quality will Bitstream...
  • Page 5 SETUP MENU (Press SETUP button) Test Mode Audio 2 (analogue audio) With no disc in the player and the tray closed the Test Mode option will appear in the Audio 2 menu. Enter this menu to alter the analogue audio Highlight “Test Mode”...
  • Page 6 MUTE on the amplifier’s remote control pressing MUTE on the amplifier’s remote control “Smart My-Link” the MDV 300 has a number of will mute the amplifier and pause the DVD. When will mute the amplifier and pause the DVD. When...
  • Page 7 Learning mode (described in the Home (such as the Myryad A/V Learning Remote) can Theater Master’s Operating Manual) to teach it be used to control the MDV 300 in one of the all the commands that you use most regularly. following ways: 1.
  • Page 8 TROUBLESHOOTING Should your DVD player develop a problem, please check below before requesting service: Symptom Check and Action No Power Check that the power cord has been properly connected to the power outlet. Check that power has been switched on at the socket and on the rear panel. Does not play No disc, load a disc.
  • Page 9 "AUDIO" button, or by using setup in the disc menu. Connect the digital audio output to a digital amplifier (or pre-amplifier such as, for example, a Myryad MDP 500 G6 Pre-amplifier Processor). No surround If digital output has been activated:...
  • Page 10 SPECIFICATIONS Type of Disc CD-MP3 VCD/SVCD Kodak Picture CD CD-R / CD-RW DVD-R/DVD+R Disc capacity 120 or 80mm Programming 12 tracks Capacity Video Format MPEG 2 Audio Format MPEG 1, LAYER 1, LAYER 2 , LAYER 3 Output Terminals Composite (CVBS) output X 1 S-Video output X 1 Y Pb Pr Component Video output X 1(Interlaced or Progressive Scan)
  • Page 11 SPECIFICATIONS Video outputs Composite 1 Vp-p / 75 (interlaced scan only) S-Video, Y 1 Vp-p / 75 S-Video C 0.3 Vp-p / 75 (PAL) 0.286 Vp-p / 75 (NTSC) 0.7 Vp-p /75 (plus 0.3V sync on Green) Interlaced or Component - Y / Pb / Pr 1 / 0.52 / 0.52 Vp-p / 75 Progressive Scan Audio outputs...
  • Page 12 NOTES...
  • Page 13 NOTES...
  • Page 14 Myryad Systems Ltd. 2 Piper’s Wood Waterberry Drive Waterlooville Po7 7XU Tel: +44 (0) 23 9226 5508 Fax: +44 (0) 23 9223 1407 info@myryad.co.uk For further information, please contact Myryad direct or visit: www.myryad.co.uk...

  • Page 15: Important Safeguards

    SAFETY INFORMATION TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. CAUTION Water and Moisture- do not use this video product near water for example, To reduce the near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, risk of fire and electric shock, do or near a swimming pool and the like.

  • Page 16: Table Of Contents

    Auto screen saver 22-24 SETUPMENU SMART MY-LINK Manufacturedunder license from Dolby Laboratories. MYRYAD A/V REMOTES Dolby and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. 1992-1997 Dolby Laboratories. All rights reserved. This product incorporates copyright protection technology that is protected by method claims of certain U.S.

  • Page 17: Essential Setup

    ESSENTIAL SETUP Video outputs The player is equipped with the following video output ports: Interlaced scan output: Composite video (CVBS), S-Video, Y Pb Pr, SCART Y P b Pr Progressive scan output: The factory default video output DEFAULT IMPORTANT NOTE setting is S-Video (interlaced scan) In this mode the active video output ports are: The composite video (CVBS) output...
  • Page 18 ESSENTIAL SETUP Audio outputs (analogue) The player can provide either stereo (Left and Right) output or 5.1 channel decoded ............output (from Dolby Digital Sources). Language Video Audio 1 Audio2 Rating ..........
  • Page 19 (such the battery compartment cover. as the Myryad M DP 500 G6) or amplifier or direct to Always replace both batteries. Do not mix new a TV. In addition the MDV 300 has coax and...

  • Page 20: Select A Dvd Disc

    INTRODUCTION Select a DVD disc About DVD DVD Region Code DVD (Digital Versatile Disc) is a digital video medium using DVD discs and DVD players are manufactured the MPEG II format and featuring a variety of revolutionary under the worldwide agreed DVD Regional entertainment capabilities.

  • Page 21: About Mp3

    INTRODUCTION Discs that cannot be played This player is compatible with the following The following discs cannot be played disc types: in theDVDplayer: single sided / double sided DVDs with region codes that do single layered / double layered not m a t c h t h e player's region code CD-DA (Check the region code printed on the CD-MP3...

  • Page 22: About The Player

    INTRODUCTION About the player Front panel Open/Close button Skip Forward Remote sensor Pause/Step Button Display panel Disc tray Standby button OPEN/CLOSE PLAY PAUSE SKIP STOP DVDPlayer Skip Backward Stop button Play button Rear panel Down Mix Audio Power 2 Channel L/R Switch Composite (CVBS) Video...

  • Page 23: Remote Control

    Return to DVD Title Play Skip backward and forward Scan backward and forward Zoom (on Myryad amp or pre-amp, only in REMARK Mute a My-Linked system) Some features contained in this DVD p layerare related to the DVD disc's software.

  • Page 24: System Connection

    SYSTEM CONNECTION connect theACpower socket to the w all outlet before the system connection is completed Connecting to a TV (Interlaced) DIGITAL 5 . 1 C H A N N E L S U R R O U N D STEREO ANALOGUE COAX...

  • Page 25: Connecting To Progressive T V

    SYSTEM CONNECTION Connecting to progressive scan TV White STEREO DIGITAL 5 . 1 C H A N N E L S U R R O U N D ANALOGUE C O A X FRONT SURR LEFT LEFT CENTRE CVBS OPTICAL P b / B Pr/R S-VIDEO...

  • Page 26: Connecting To Digital Amplifier

    SYSTEM CONNECTION SYSTEM CONNECTION Connecting to digital amplifier Center Front Left FrontRight STEREO DIGITAL 5 . 1 C H A N N E L S U R R O U N D Subwoofer ANALOGUE C O A X FRONT SURR SurroundLeft SurroundRight CVBS...

  • Page 27: Getting Started

    GETTING STARTED Unpack the unit. Read through thisowner's manual before installation and use. Load batteries into the remote control unit. Connect the system. Connect the power cable to the p layer and then to the A C power outlet. Set the POWER switch on the rear panel to the ON position.

  • Page 28: Osd - Dvd

    GETTING STARTED Press button. An On Screen Display (OSD) The OSD i s a user friendly interface designed indicator will appear in the upper part of the T V for displaying the status o f the playing d isc. screen w ith the d isc information and o perating status. When a different disc is loaded (DVD, CD or MP3), the OSD indicator will change.

  • Page 29: Mp3 Mode

    GETTING STARTED MP3 mode Playback time Disc Track Brow Disc / Disc type current track / total tracks Program Icon ..00:02:43 ..Play Track 2/133 ........Brow Disc ............Track 01 Track 06 ..

  • Page 30: Kodak Picture Cd Mode

    GETTING STARTED Kodak picture CD mode ............Picture01.jpg Picture06.jpg ........Picture02.jpg Picture07.jpg ........Picture03.jpg Picture08.jpg ........Picture04.jpg Picture09.jpg ........Picture05.jpg Picture10.jpg ......
  • Page 31 BUTTON FUNCTIONS Standby ON / OFF To switch the player into or out of standby mode: STANDBY Press STANDBY button on the remote STANDBY button on the front panel (Always switch the player into standby mode after use) Open / Close disc tray To open and close the disc tray: Press OPEN/CLOSE button on the remote...
  • Page 32 To turn the audio output o ff, press MUTE button once. Press the MUTE button again to resume audio output. Note: The volume and mute controls will only be active if the player is used with Myryad amplifiers in a My-Linked system. Play / Pause / Step/ Stop Press PLAY button to play the disc.

  • Page 33: Slow Motion Playback

    BUTTON FUNCTIONS Skip Forward / Backward Press to skip to the next chapter Press to skip to the previous chapter Player will not advance o r reverse during "WARNING" section of any disc. Scan Forward / Backward Press to scan forward Press the button repeatedly to change scan speed X100 Press...

  • Page 34: Setupmenu

    BUTTON FUNCTIONS Select an item in a menu In the disc menu or setupmenu press ARROW button to m o v e between menu items. Press ENTER to confirm a selection. Press to cancel an entry. Press to return to the previous menu. On Screen Display Menu Press OSD button to switch the OSD indicator on o r off.
  • Page 35 BUTTON FUNCTIONS GOTO a specific point To start playback at a particular point (Time, Title o r Chapter) Press the GOTO button Search menu appears o n screen. In DVD mode: Search 00:12:33 01:36:25 Time --:--:-- Title Chapter In CD mode: Track Search Time --:--:--...
  • Page 36 BUTTON FUNCTIONS Numeric Key Pad / Direct Program access Direct Program access During DVD or CD playback, enter the desired Chapter o r track number using the number buttons. The player will skip directly to the Chapter (DVD) o r Track ( CD) chosen. If a CD has 10 tracks or more press ENTER after selecting track 1, if 20 tracks or more, press ENTER after selecting tracks 1 or 2 and so on.
