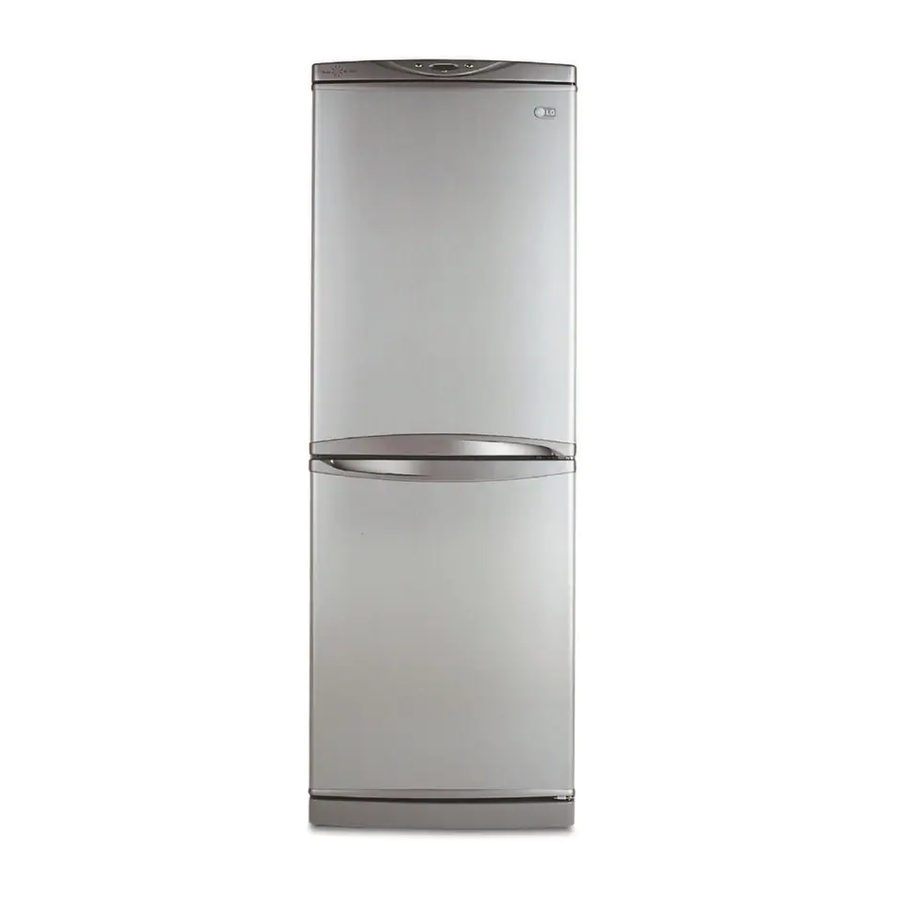

3828JD8400B(O/M)˙ ¥` 02.2.26 2:52 PM ˘ ` 1 website: http://www.lgservice.com e-mail: http://www.lgeservice.com/techsup.html LRBP1031T LRBP1031W LRBP1031NI REFRIGERATOR- FREEZER User's Guide (2~16) Please read this User's Guide carefully before operating and keep it handy for reference at all times. REFRIGERATEUR- CONGELATEUR Manuel de l’utilisateur (18~32) Lisez avec attention ce Manuel de l’utilisateur...
3828JD8400B(O/M)¿ (2~17) 02.2.26 2:54 PM ˘ ` 3 REFRIGERATOR SAFETY Your safety and the safety of others is very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol.
3828JD8400B(O/M)¿ (2~17) 02.2.26 2:54 PM ˘ ` 4 w w WARNING INSTALLING YOUR REFRIGERATOR w w WARNING Explosion Hazard Keep flammable materials and vapors, Excessive Weight Hazard such as gasoline, away from refrigerator. Use two or more people to move and Failure to do so can result in death, install refrigerator.
3828JD8400B(O/M)¿ (2~17) 02.2.26 2:54 PM ˘ ` 5 Electrical Requirements Registration The model and serial number are found on the w w WARNING rear of this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.
3828JD8400B(O/M)¿ (2~17) 02.2.26 2:54 PM ˘ ` 6 FEATURES CHART Freezer Temperature Control Egg Tray Removable Glass Shelf (2) Rotatable Door Basket Lamp Multi-air Flow Duct Utility Corner (movable) Fresh Meet Keeper Refrigerator Temperature Control Bottle Holder Vegetable Drawer Used to keep fruits 2-liter Bottle and vegetables, etc Door Basket...
3828JD8400B(O/M)¿ (2~17) 02.2.26 2:54 PM ˘ ` 7 FREEZER OPERATION Freezer temperature control is on the top of the Refrigerator-Freezer. Initially set the Freeze Temp at mid-point. By pressing the Starting Freezer Temp button, you can adjust the temperature of the Freezer as indicated by When your refrigerator is first installed, allow to the numbers of lamps lit.(The setting is run 2-3 hours to stabilize at normal operating...
3828JD8400B(O/M)¿ (2~17) 02.2.26 2:54 PM ˘ ` 8 Vacation Ice Making This function makes the Refrigerator-Freezer To make ice cubes, fill the ice tray to the work in a power saving mode which is useful for water level and place it in the freezer. when you are away on holiday, by reducing If ice cubes are required quickly, press the energey consumption as much as possible.
3828JD8400B(O/M)¿ (2~17) 02.2.26 2:54 PM ˘ ` 9 NOTE SUGGESTIONS ON If you keep the refrigerator in a hot and FOOD STORAGE humid place, frequently opening the door or putting a lot of vegetables in it may cause condensation to form. This has no Storing Food effect on its performance.
3828JD8400B(O/M)¿ (2~17) 02.2.26 2:54 PM ˘ ` 10 Power Failure LAMP Most power failures are corrected in an hour or REPLACEMENT two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is 1.
3828JD8400B(O/M)¿ (2~17) 02.2.26 2:54 PM ˘ ` 11 Additional cleaning tips are listed below: CLEANING YOUR PART COMMENTS REFRIGERATOR Outside Waxing external painted metal surfaces helps provide w w WARNING rust protection. Do not wax plastic parts. Wax painted metal surfaces at least twice a year using appliance wax (or auto paste wax).
3828JD8400B(O/M)¿ (2~17) 02.2.26 2:54 PM ˘ ` 12 How to Replace the Door REPLACEMENT OF Opening Left to Right DOOR OPENING TYPE (when converting from the left-opening type to right w w PRECAUTION opening type) 1. Before replacing the door opening type, How to Reverse the Doors first of all, you should take out of food and ·...
Page 13
3828JD8400B(O/M)¿ (2~17) 02.2.26 2:54 PM ˘ ` 13 2. Remove bolt µ and hinge-C ¸ and take off After Completing the job refrigerator door ¹. Make sure that the four corners of the door Move cap to the side not used. gasket are not folded.
3828JD8400B(O/M)¿ (2~17) 02.2.26 2:54 PM ˘ ` 14 BEFORE CALLING FOR SERVICE SERVICE CALLS CAN OFTEN BE AVOIDED! IF YOU FEEL YOUR REFRIGERATOR IS NOT OPERATING PROPERLY, CHECK THESE POSSIBLE CAUSES FIRST: PROBLEM POSSIBLE CAUSES REFRIGERATOR DOES NOT Has a house fuse blown or circuit breaker tripped? OPERATE Has the power cord plug been removed or loosened from the electrical wall outlet?
3828JD8400B(O/M)¿ (2~17) 02.2.26 2:54 PM ˘ ` 15 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES REFRIGERATOR-FREEZER Power plug may be unplugged from the electric outlet. DOES NOT OPERATE Plug it in securely. House fuse has blown or circuit breaker has tripped. Check and/or replace fuse and reset circuit breaker. Power cut.
Page 16
3828JD8400B(O/M)¿ (2~17) 02.2.26 2:54 PM ˘ ` 16 PROBLEM POSSIBLE CAUSES REFRIGERATOR HAS ODOR Foods with strong odors should be tightly covered or wrapped. Check for spoiled food. Interior needs cleaning. Refer to CLEANING section DOOR NOT CLOSING Food package is keeping door open. PROPERLY Move packages that keep door from closing.
