Installation

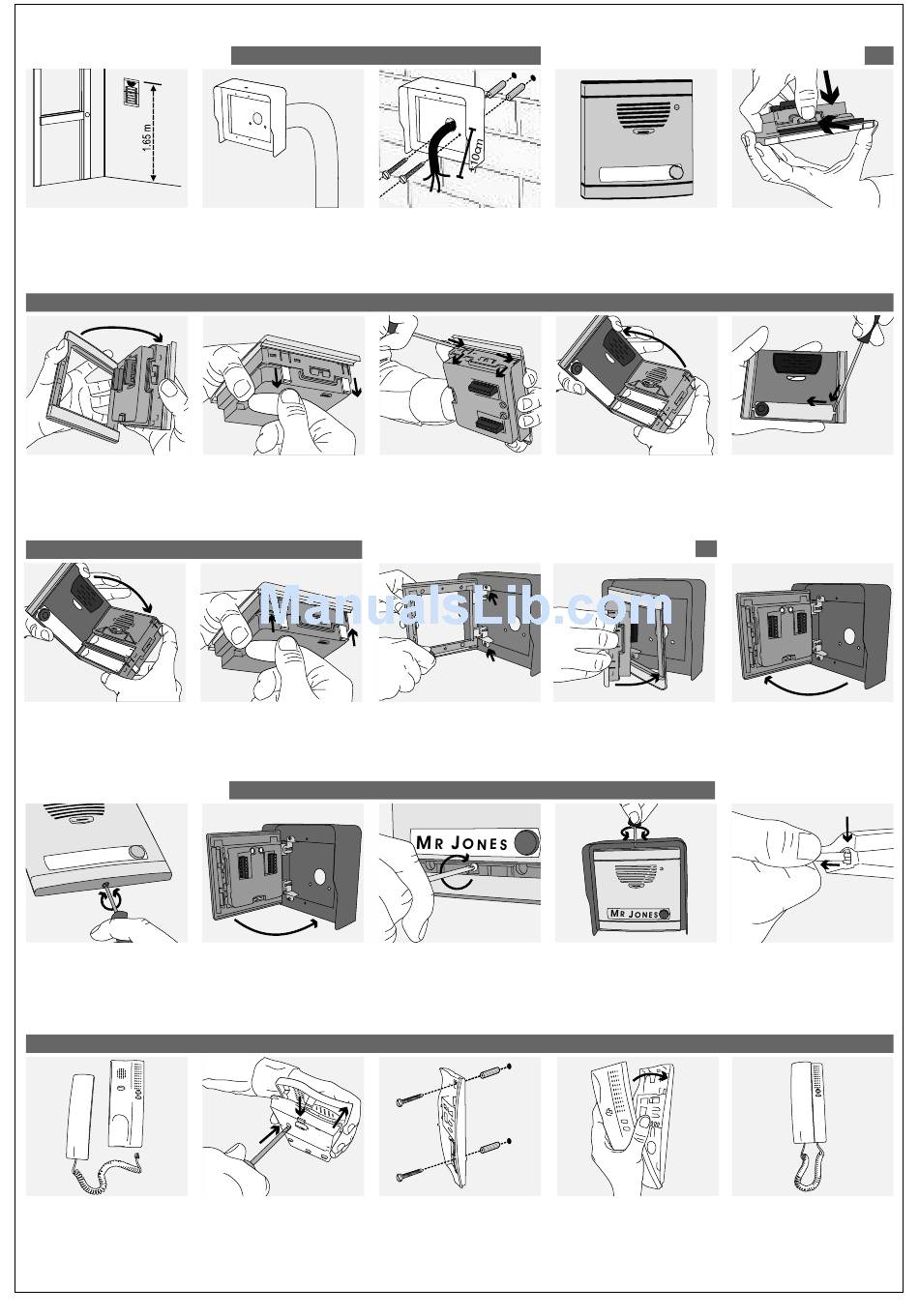

POSITION ENTRY PANEL
1.Position entry panel on wall
adjacent door or entrance gate.
Mount at a height convenient for the
user to operate.
A recommended height is provided.
6. Rotate the frame and repeat the
procedure to unclip the opposite
side. release the module fully from
the frame
11. Clip the module back onto the
facia
CLOSE UP ENTRY PANEL
16. Loosen the frame end caps by
depressing each locking screw and
twisting it either clockwise or anti-
clockwise.
21. Set this aside in order that it
does not get damaged during
mounting
2. Alternatively mount the entry
panel onto a gooseneck ensuring
that: • The entry panel does not
protrude too far into the driveway
• The entry panel is not set too far
back and cannot be easily operated.
7. Orientating the module as shown,
pull the white locking tabs
downwards
12. Slide the white locking tabs back
into position as shown
17. Hinge the entry panel closed
ensuring that the cabling is folded
neatly behind the panel without
folding or pinching it between the
back of the unit and surface box.
22. Open the handset
3. Mount surface box into position
against wall or onto gooseneck.
Route cables into the surface box
ensuring that there is sufficient
length (>10cm) to allow easy
termination onto the entry panel
8. Hold the module as shown and
depress one by one the securing
clips on one side to release the
plastic part of the module from the
facia.
MOUNT ENTRY PANEL SUPPORT FRAME
13. Using the small set of self
tapping screws provided, secure the
hinges of the entry panel support
frame onto the surface box
18. Using the larger set of self
tapping screws provided, secure the
entry panel to the surface box
23. Screw the handset against the
wall at the recommended height.
Terminate wiring referring to the
wiring diagram overleaf / attached
FIT CALL BUTTON ADDRESS LABELS
M J
N E S
R O
4. To fit the call button address
labels it is necessary to remove the
different modules with call buttons,
from the entry panel support frame.
9. Peel the module away from the
facia
14. Slide the call button / audio
module(s) back into position in the
support frame, ensuring that there is
positive engagement
19. Close the frame end caps
24. Close the handset
5. Grip the outside of the frame as
shown and depress the securing
clips on one side of the module and
push the module away from the
frame
10. Using a screwdriver with a small
flat, carefully unclip the plastic call
button backing piece from the facia.
Insert the label and replace the
plastic backing piece
TERMINATE WIRING
15. Hinge open the entry panel and
terminate the wiring referring to the
wiring diagram overleaf
MOUNT HANDSET
20. Remove the handpiece from the
handset by unplugging the
telephone cord.
25. Replace handpiece
remembering to reconnect telephone
cord.
