LEGRAND LEGD365 061 Installation Instructions Manual page 3

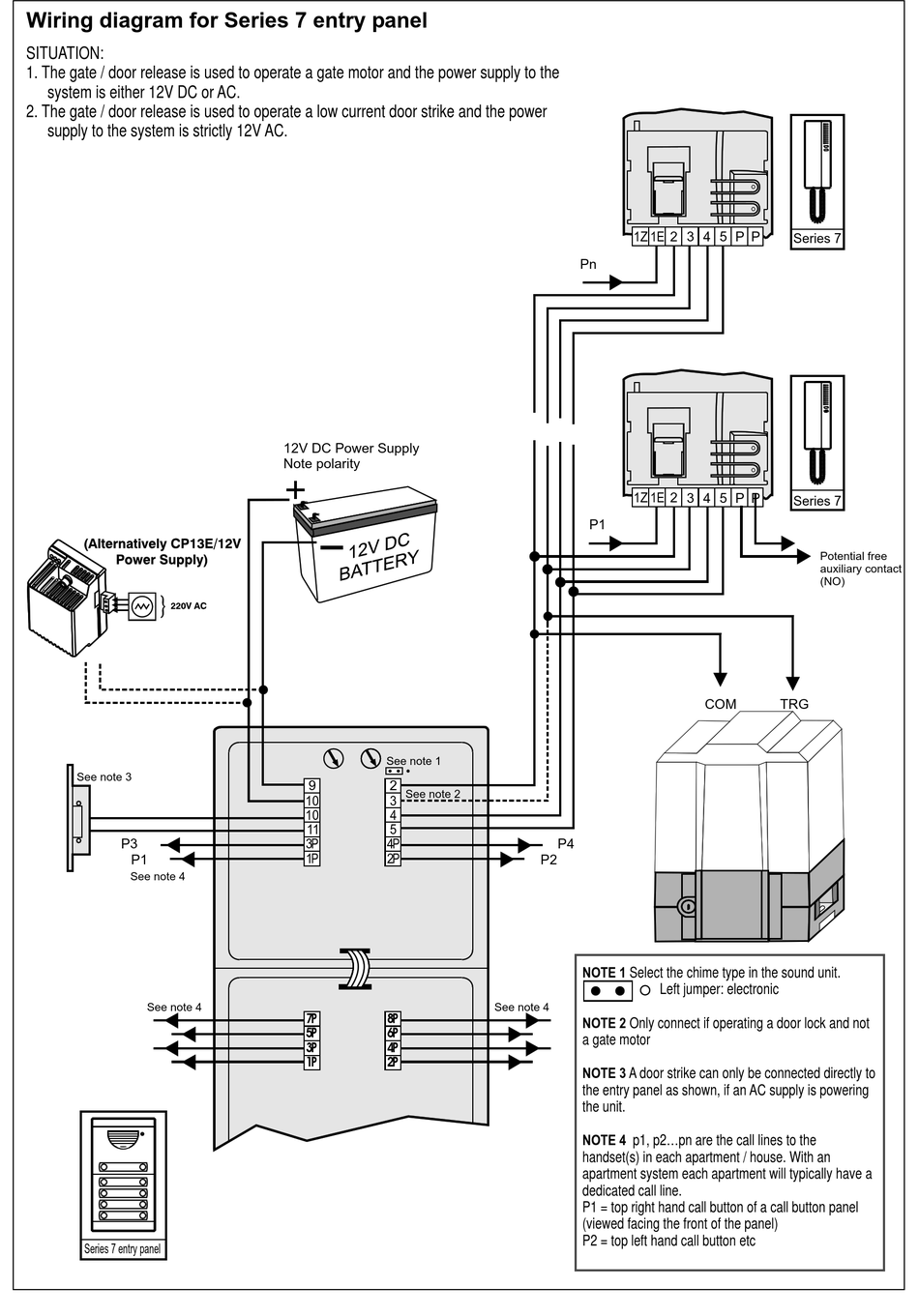

Wiring diagram for Series 7 entry panel
SITUATION:
1. The gate / door release is used to operate a gate motor and the power supply to the
system is either 12V DC or AC.
2. The gate / door release is used to operate a low current door strike and the power
supply to the system is strictly 12V AC.
See note 3
P3
P1
See note 4
See note 4
Series 7 entry panel
12V DC Power Supply
Note polarity
See note 1
9 9 2
3
See note 2
10 10 3
4
10 10 4
5
11 11 5
P 3 P 4
P 1 P 2
P 7 P 8
9
3
P 5 P 6
10
4
P 3 P 4
10
5
11 P 1 P 2
1Z 1E
Pn
1Z 1E
P1
P4
P2
NOTE 1 Select the chime type in the sound unit.
Left jumper: electronic
See note 4
NOTE 2 Only connect if operating a door lock and not
a gate motor
NOTE 3 A door strike can only be connected directly to
the entry panel as shown, if an AC supply is powering
the unit.
NOTE 4 p1, p2...pn are the call lines to the
handset(s) in each apartment / house. With an
apartment system each apartment will typically have a
dedicated call line.
P1 = top right hand call button of a call button panel
(viewed facing the front of the panel)
P2 = top left hand call button etc
