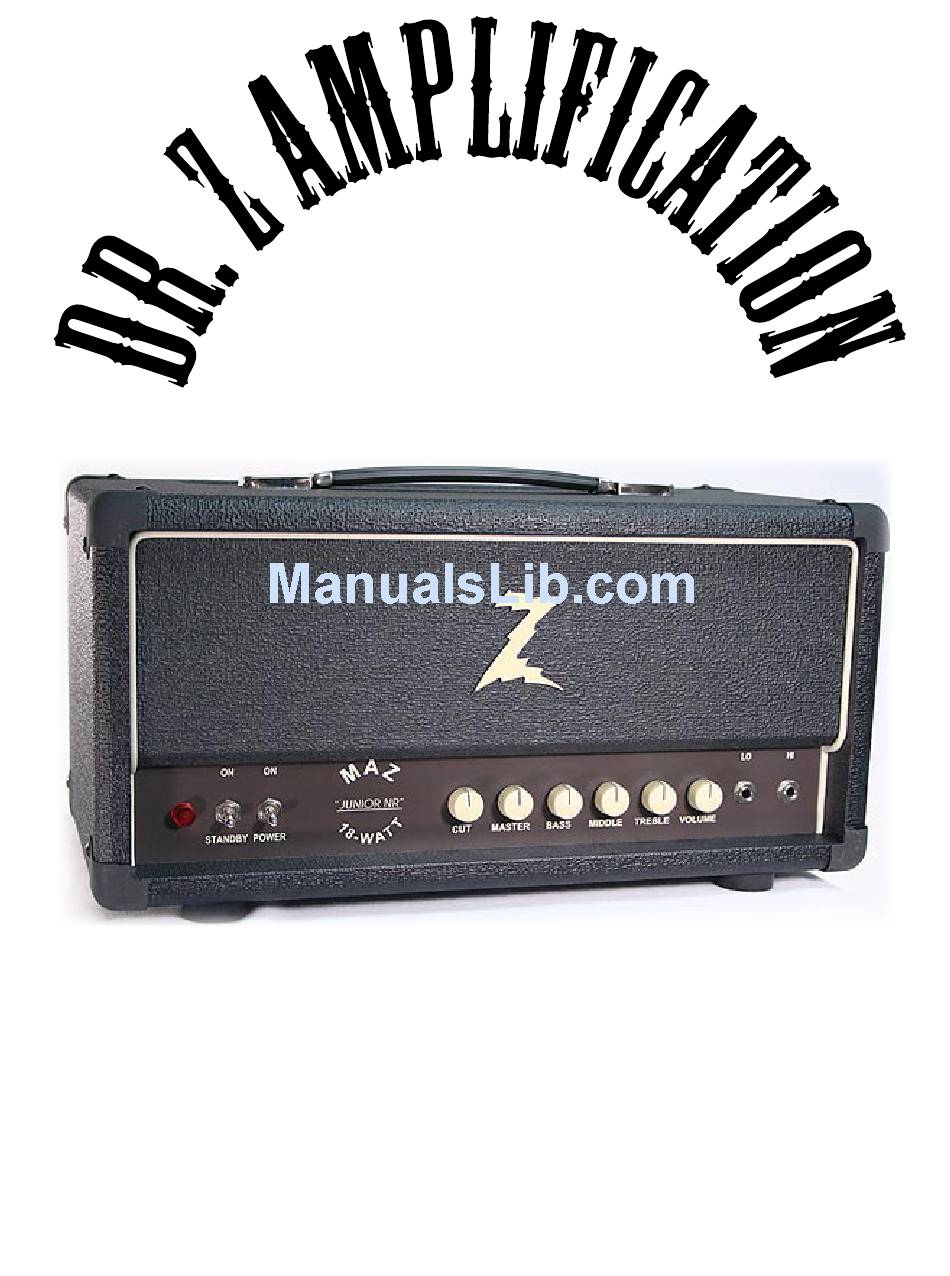

- Page 1 MAZ 18/MAZ 38 NR Owners Manual...
-
Page 2: Front Panel

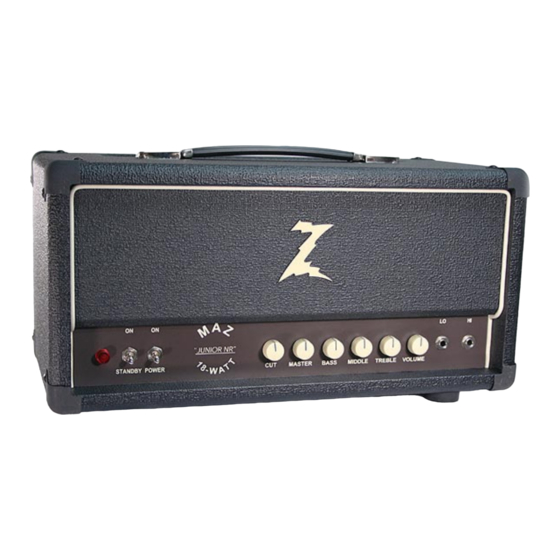

You’ll find this series has an unmistakable English accent. It can sparkle or grind while letting you dial in the “Chime.” The Maz 18 NR is great for getting classic breaking up tube tone at lower volumes. The Maz 38 NR gives you more clean headroom and low end push. -
Page 3: Rear Panel
Changing the EL84 output tubes on your Maz 18/38 NR is easy. These amps are cathode (self) biased so there is no need to rebias when changing tubes. Always use a matched pair (Maz 18) or matched quad (Maz 38) of EL84’s. -
Page 4: General Maintenance
General Maintenance: • If you experience intermittent crackle/static type sounds make sure the 4 screws that secure the chassis are tight. If a bit loose, the chassis will lose connection to the RF shield. • Make sure a speaker is connected to your amplifier before you turn it on. Always match your speaker or cabinet to the proper ohm rating on the rear of the amp (8 ohm speaker or cab into the 8 ohm jack.) •... - Page 5 ECC83 ECC83 12AX7 EL84 EL84 © Copyright 2004 Dr. Z Amplification www.drzamps.com ECC83 ECC83 12AX7 EL84 EL84 EL84 EL84 © Copyright 2004 Dr. Z Amplification www.drzamps.com...
