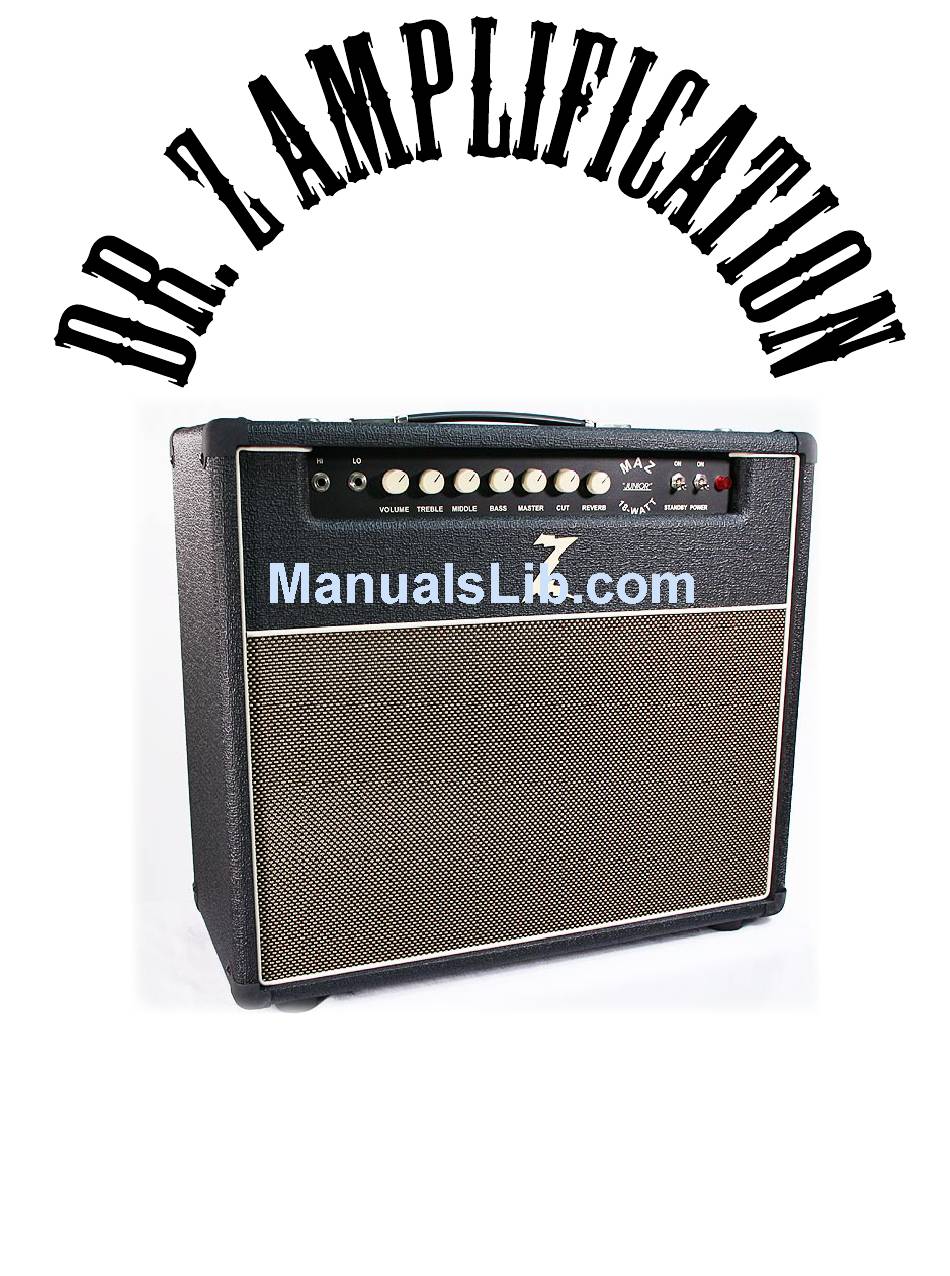

  • Page 1 MAZ 18 Junior/MAZ 38 Senior Owners Manual...
  • Page 2: Front Panel

    Intro: Thank you for purchasing a Dr Z Amp. This amplifier was designed to give you years of playing and sonic enjoyment. We are proud to forge ahead and create new tube amplifier sounds with a nod to the classics of the past. Whether you are a touring professional, weekend warrior, or basement jammer;...
  • Page 3: Rear Panel

    Rear Panel: Fuses: 2 amp (Maz 18) or 3 amp (Maz 38) for AC voltage. ½ amp fuse for DC Voltage. Speaker Jacks: Plug speaker into specific jack for it’s rating (8ohm speaker into 8ohm jack.) Effects Loop: (optional) Plug “In” to Send and “Out” to Return. Good for Delay or Reverb effects.
  • Page 4: General Maintenance

    General Maintenance: • If you experience intermittent crackle/static type sounds make sure the 4 screws that secure the chassis are tight. If a bit loose, the chassis will lose connection to the RF shield. • Make sure a speaker is connected to your amplifier before you turn it on. Always match your speaker or cabinet to the proper ohm rating on the rear of the amp (8 ohm speaker or cab into the 8 ohm jack.) •...
  • Page 5 ECC83 ECC83 12AT7 12AX7 12AX7 EL84 EL84 © Copyright 2004 Dr. Z Amplification www.drzamps.com V7/V8 V6/V7 ECC83 ECC83 12AT7 12AX7 12AX7 (2) EL84 (2) EL84 © Copyright 2004 Dr. Z Amplification www.drzamps.com...
