User's manUal

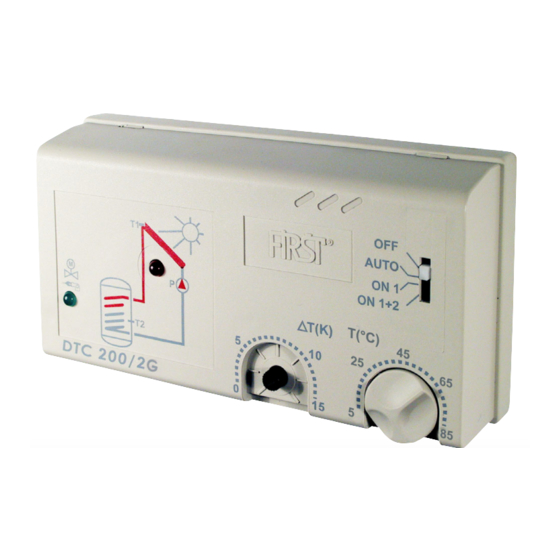

DTC 200/2G
Differential thermostat can be used for:
- Heating sanitary water with possibility to control
the burner.
- Cooling living space with blowing the cool out-
side air into the living space
DEAR CUSTOMER
You have bought a DTC 200/2G differential thermostat, manufac-
tured according to the latest quality and safety standards. It is
designed in compliance with strict criteria and requirements of
West European markets and enables efficient use of solar energy
which enables considerable savings of other sources for domestic
water heating. It was tested at TUV institute in München.
Our products are available in the markets for several years and
satisfy the needs of demanding customers from hot Greece to
north Germany.
We are convinced that the use of our product will satisfy your
needs too and help you to save your money.
Thanks for your confidence !
User's manUal
This manual is for user. It describes the operation of differ en tial
thermostat and it's correct use. Before setting the pa ram eters be
sure in which way of use is used. Carefully read the in structions
to make good use of the product.
We reserve the right to modify the instructions and the technical
data of the product without prior notice.
tel. +386 3 898 35 00, fax. +386 3 898 35 35, e-mail: info@first.si, http://www.first.si
FIRŠT
FIRŠT-ROTOTEHNIKA, s.p., Radegunda 54, SI-3330 Mozirje, Slovenija
GENERALLY:
With differential thermostat there are three possible ways of use:
1. HeaTinG THe DomesTiC HoT waTer from one
HeaTinG soUrCe (solar ColleCTors, boilers, HeaT
pUmp...) wiTH ConTrollinG THe HeaTinG soUrCe
(bUrner).
Differential thermostat controls the electric motor actuated ball
valve (EMV 110..) and the circulation pump. If it necessary, turns
ON or OFF the heating source (burner).
2. HeaTinG THe DomesTiC HoT waTer from one
HeaTinG soUrCe (solar ColleCTors, boilers, HeaT
pUmp...) wiTH aDDiTional HeaTinG wiTH eleCTriCal
HeaTer.
Differential thermostat controls the electric motor actuated
ball valve (EMV 110..) and the circulation pump. In case that
the primary heating source (solar collectors, boilers...) has not
enough energy, water in water tank is heated with elec trical
heater.
3. CoolinG livinG spaCe wiTH blowinG THe Cool
oUT siDe air inTo THe livinG spaCe
Differential thermostat controls the ventilator.
ID-0706-22-DTC200-2g-upo-ang
1
