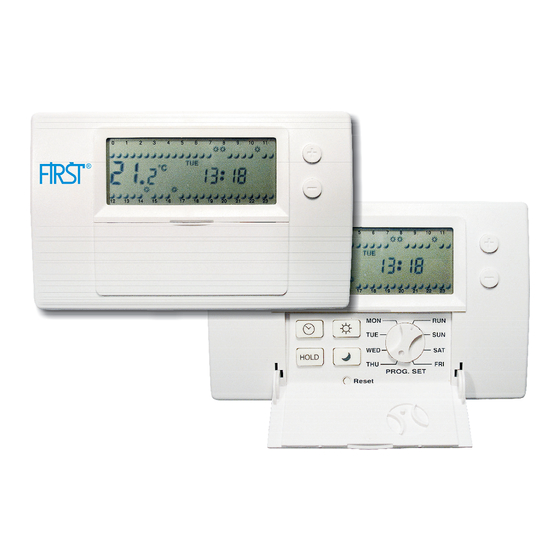

ELTHERM TT 6
USER-FRIENDLY PROGRAMMABLE THERMOSTAT
USER'S GUIDE
®
USER'S GUIDE
Choosing location for INSTALLATION
For obtaining thermostat's best performance upon using,
recommend user to follow up with precaution listed below.
(1). Place thermostat on wall inside the room approximate 1.5
meter above floor.
(2). Avoid position where temperature sensing easily
interfered by ambience, such as, directly exposed to
Sun-Light, too near to any Heat-Generate devices
/refrigerator, right next to entrance/exit/window, etc.
(3). Prevent thermostat from installed at position that
furniture may interfere air-flow, stagnant air-flow location
is not suitable for installing thermostat.
(4). Keep thermostat away from high humid ambience, high
humidity is hazardous to thermostat's operational
duration.
(5). It's crucial, before installing thermostat, make sure house
renovation is finished, no tacky painting/plaster is right
on thermostat's installing position.
(6). To level thermostat prior to installation is not necessary.
(7). Push excess cable wires back into the wall while
positioning thermostat. If there is a draft, pack the
opening with non-combustible material.
(8). Place batteries in thermostat requiring batteries,
observing "+ " and " - " positions.
START INSTALLATION
(1). How to open top housing
C. WIRING GUIDE
Follow the el. scheme which is printed on the terminal's
cover.
FIRŠT-ROTOTEHNIKA, s.p., Radegunda 54, SI-3330 Mozirje, Slovenija
tel. +386 3 898 35 00, fax. +386 3 898 35 35, e-mail: info@first.si, http://www.first.si

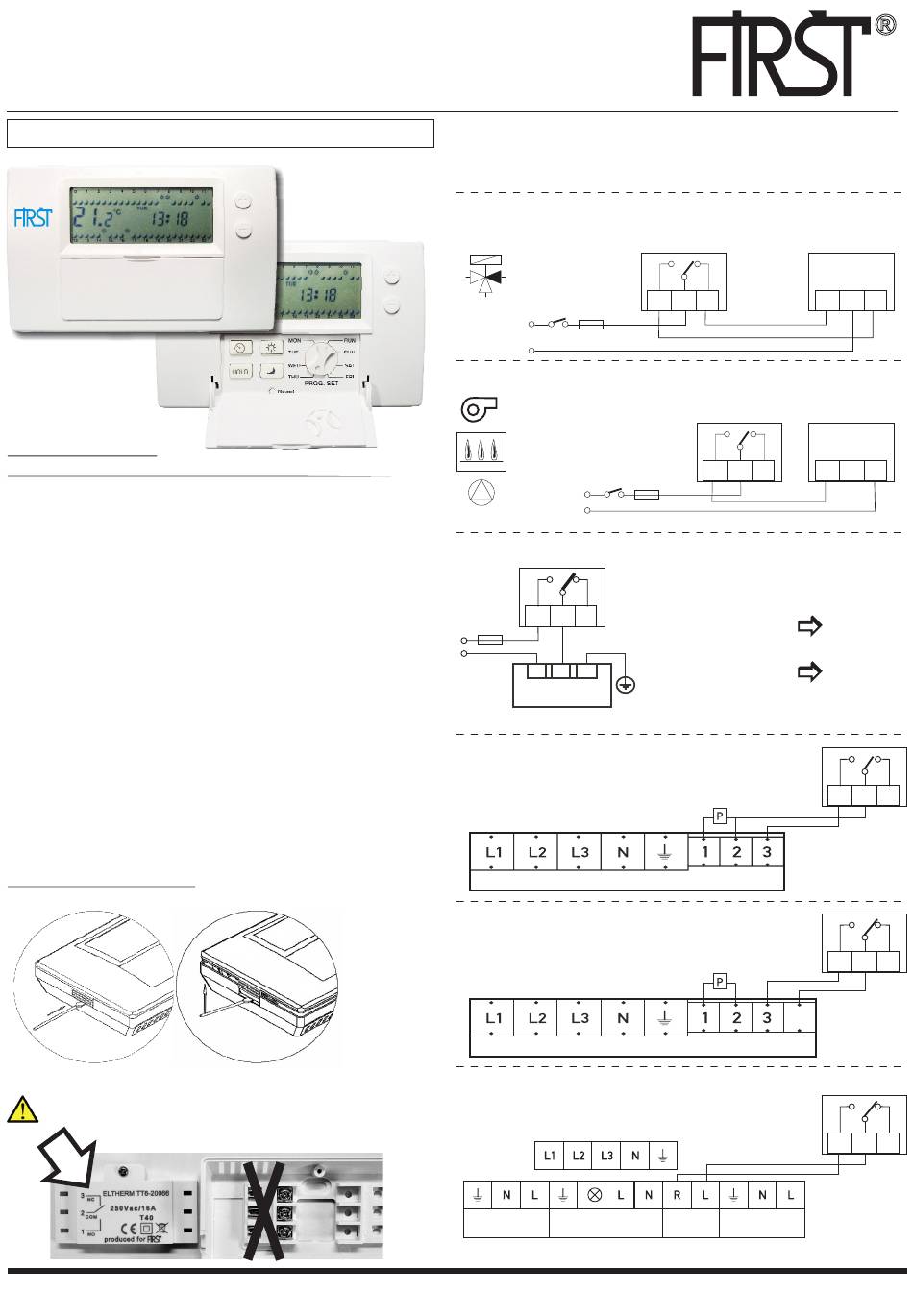

ELECTRICAL CONNECTION
Examples;
Electrical connection of the motorized ball valve EMV .. 110 series or
regulating motor MV 120 / ...
Room thermostat
TT6
24...240V
50Hz
blue
Electrical connection of the burner or circulation pump
Room thermostat
24...240V
50Hz
Electrical connection of electric radiators and other heating appliances
Room
thermostat
TT6
1 2 3
heating appliance
Connection for electric boilers
TERMOMONT:
ETK-SET, ETK SET U, ETK -
SET for pipe systems
Connection for electric boilers
TERMOMONT:
ETK - SET ELEKTRONIK
Boiler ETK-SET ELEKTRONIK
Connection for boilers using solid
TERMOMONT:
fuel, oil
TKK, TKK3, TKU3, TŽK, TEMY,
CTK, BTK
pump burner
16A/250VAC, cos =1
10A/250VAC, cos =0.6
2 3
1
black CLOSE
grey OPEN
16A/250VAC, cos =1
10A/250VAC, cos =0.6
TT6
1 2 3
Max. load:
* Resistive load
16A/250VAC, cos =1
φ
* Inductive load
10A/250VAC, cos =0.6
φ
Room thermostat
TT6
Boiler ETK-SET
Room thermostat
TT6
4
Room thermostat
TT6
room power
thermostat supply
cx4-2210-Eltherm-TT6-v7-eng.cdr
®
ϕ
ϕ
MV 120/...
EMV 110..
ϕ
ϕ
črpalka
L N
max. 3 kW
max. 2 kVA
1 2 3
1 2 3
1 2 3
