First DTC 200/2G Installation Manual

INSTALLATION INSTRUCTIONS

DTC 200/2G

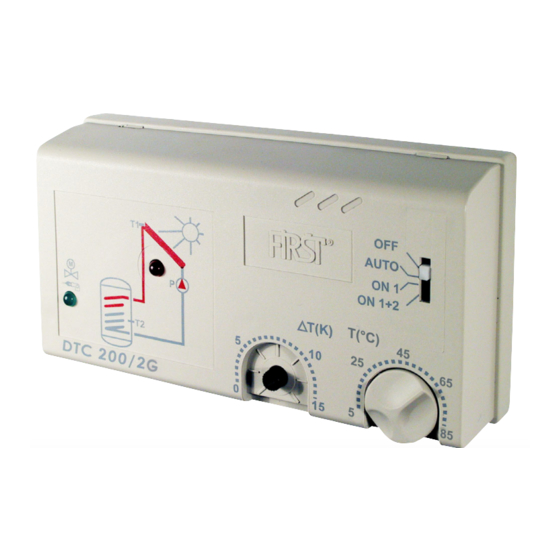

Differential thermostat can be used for:
- Heating sanitary water with possibility to control
the burner.
- Cooling living space with blowing the cool
outside air into the living space
WARNING!
Installation instructions are meant for specialist. All examples
listed in the instructions are merely indicative. The manufacturer
accepts no responsibility for incorrect hydraulic connection of
machine parts of installations should comply with all safety
regulations defined by law and the rules. Carefully read the
instructions to make good use of the product.
INFORMATION FOR ORDER:
DTC 200/2G .................................................................. 13017
The set consists of:
Differential thermostat DTC 200/2G, sensor BSF1, sensor KF,
mounting kit, installation instructions and instruction for use
Tube TV2 ...................................................................... 27080
(1/2", l=100mm, inner diameter 14mm)
We reserve the right to modify the instructions and the technical
data of the product without prior notice.
FIRŠT-ROTOTEHNIKA, s.p., Radegunda 54, SI-3330 Mozirje, Slovenija
tel. +386 3 898 35 00, fax. +386 3 898 35 35, e-mail: info@rototehnika-sp.si, http://www.rototehnika-sp.si
INDEX:
Technical data ---------------------------------------------------------- 2
Testing sensors
Mounting the thermostat
Cables connection
Choosing the working regime -------------------------------------- 3
1. HEATING THE DOMESTIC HOT WATER FROM ONE HEATING
SOURCE (SOLAR COLLECTORS, BOILERS, HEAT PUMP...)
WITH CONTROLLING THE HEATING SOURCE (BURNER) --- 3
1.1 Basics
1.2 Operation
1.3 Sensors installation
1.4 Electrical connection --------------------------------------------- 4
1.5 Examples of use
2. HEATING THE DOMESTIC HOT WATER FROM ONE HEATING
SOURCE (SOLAR COLLECTORS, BOILERS, HEAT PUMP...)
WITH ADDITIONAL HEATING WITH ELECTRICAL HEATER -- 6
2.1 Basics
2.2 Operation
2.3 Sensors installation
2.4 Electrical connection
2.5 Examples of use --------------------------------------------------- 7
3. COOLING LIVING SPACE WITH BLOWING THE COOL
OUTSIDE AIR INTO THE LIVING SPACE -------------------------- 8
2.1 Basics
2.2 Operation
2.3 Sensors installation
2.4 Examples of use
2.5 Electrical connection
WITH DIFFERENTIAL THERMOSTAT ARE THREE
POSSIBLE WAY OF USE:
CODE
1. HEATING THE DOMESTIC HOT WATER FROM ONE HEATING
SOURCE (SOLAR COLLECTORS, BOILERS, HEAT PUMP...)
WITH CONTROLLING THE HEATING SOURCE (BURNER).
Differential thermostat controls the electric motor actuated ball
valve (EMV 110..) and the circulation pump. If it necessary turns
ON or OFF the heating source (burner).
2. HEATING THE DOMESTIC HOT WATER FROM ONE HEATING
SOURCE (SOLAR COLLECTORS, BOILERS, HEAT PUMP...)
WITH ADDITIONAL HEATING WITH ELECTRICAL HEATER.
Differential thermostat controls the electric motor actuated ball
valve (EMV 110..) and the circulation pump. In case that the
primary heating source (solar collectors, boilers...) has not
enough energy, water in water tank is heated with electrical
heater.
3. COOLING LIVING SPACE WITH BLOWING THE COOL
OUTSIDE AIR INTO THE LIVING SPACE
Differential thermostat controls the ventilator.
P7-3603-22-DTC200-2-montaža
