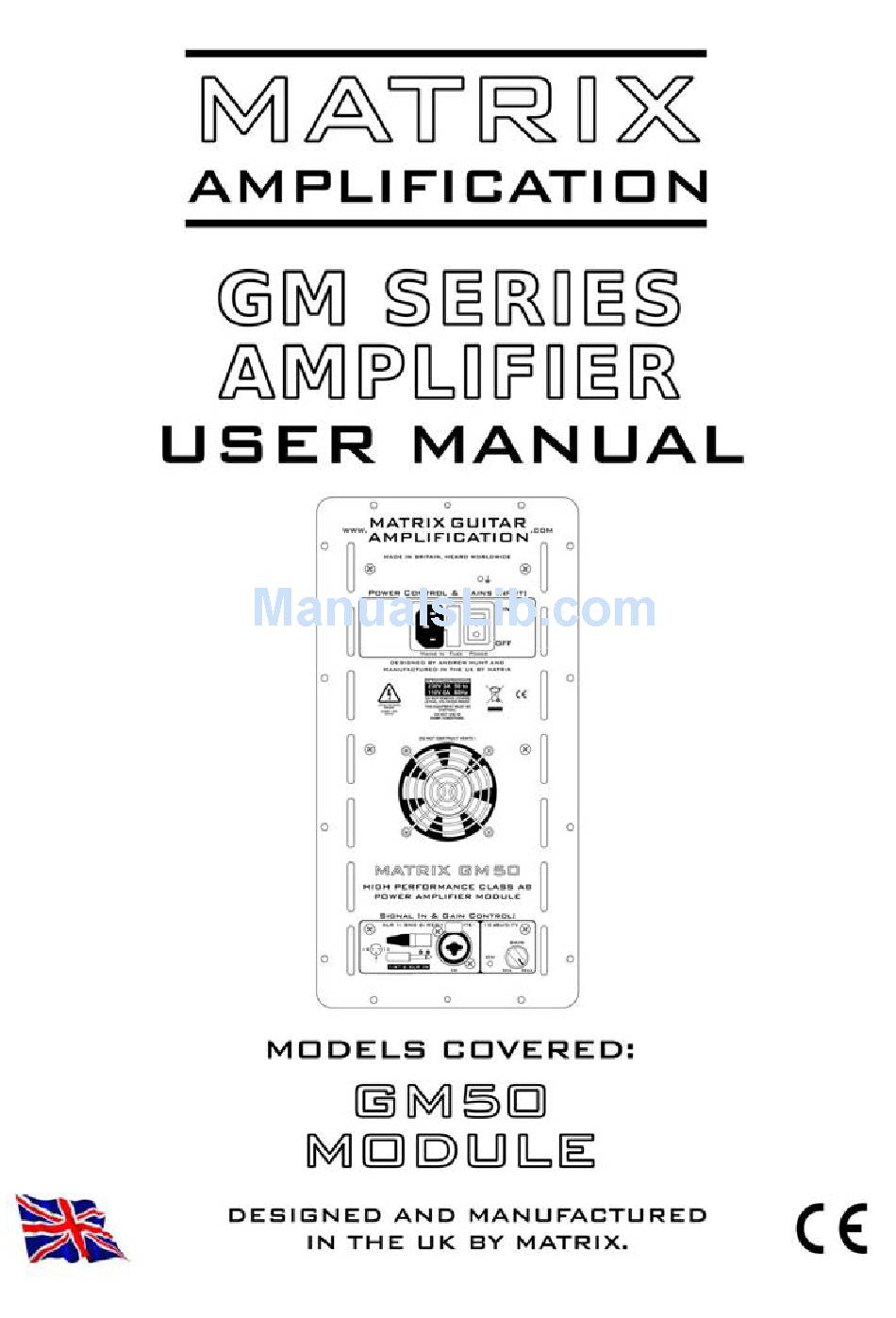

GM SERIES USER MANUAL CONTENTS: Page Thank You 1. Features and Innovations 2. Specifications Thank You 2.1 Technical specifications Congratulations on the purchase of your new 3. Interface Elements Matrix Professional Power Amplifier. Matrix amplifiers are the result of many 3.1 Front Panel decades of experience in the design of exceptionally robust and reliable amplifiers.
GM SERIES USER MANUAL 1. Features and Innovations All our amplifiers have been designed to give the best possible performance for their intended application and are based on our own uncompromising, time proven MOSFET designs. These take advantage of components which will stand the test of time and give the best possible performance in a small, exceptionally light weight package.
GM SERIES USER MANUAL 2.1 Technical Specifications GM 50 Number of Channels: Watts Per Channel at - 16 Ω: Watts Per Channel at - 8 Ω: Watts Per Channel at - 4 Ω: Supply Voltage: 230V +/- 15% Average Supply Current, Full Load: Mains Connector: 10A IEC Frequency Response:...
GM SERIES USER MANUAL 3. Interface Elements. (1) Power Switch This switch controls the power supply to the amplifier. There is a short delay on power-up, this is to avoid switch-on "thump" which could damage the loudspeakers. (2) Gain Control The Output level is adjusted by this control.
Page 6
GM SERIES USER MANUAL (4) Cooling Fan Outlet Hot air exits here. M ake sure all ventilation paths & slots are free from obstruction and air flows freely, otherwise the amplifier will trip into thermal protect mode prematurely and in some extreme circumstances damage may occur.
The red wire from the GM50 is the positive (+) feed and the black wire is the negative (-) feed. The simplest method of connecting is to attach the red wire to the positive speaker terminal and the black wire to the negative speaker terminal or in the case of systems featuring a crossover network, connecting the corresponding wires to the correct terminals on the crossover.
Page 8
Wiring your speakers in parallel like this will give you the following impedances: 2 x 4 ohm speakers = 2 ohm load (Not Suitable) 2 x 8 ohm speakers = 4 ohm load 2 x 16 ohm speakers = 8 ohm load You may also use a combination of different value Speakers as long as their total is no less than 4 ohm...
Page 9
Using this series/parallel wiring, the total impedance of your cabinet will be the same as an individual speaker (only if all speakers are the same impedance). So if you are using x4 4 ohm speakers, the cabinet will be 4 ohms. If using x4 8 ohm speakers, the cabinet will be 8 ohms, etc.
Check speaker leads for short circuits. ● If any of these, or other symptoms persist, Please contact us with the details below for help, advice and service: Contact Details: Address: MATRIX AMPLIFICATION LIMITED, Unit 1b, Techways, Email: support@matrixamplification.com Wonastow Road Industrial Estate, Monmouth, Wales, NP25 5JA.
Warranty work can only be performed at our authorised distributors or at Matrix Amplification Limited. We will remedy the defect and ship the product from the service centre or our own factory within a reasonable time after receipt of the defective product. All expenses in remedying the defect, including freight costs from ourselves to you (within mainland UK) will be borne by us.
GM SERIES USER MANUAL Declaration of CE Conformity Issuers Name and Address: Andrew Hunt, MATRIX AMPLIFICATION LIMITED, Cordes House, Factory Road, Newport, Gwent, United Kingdom. NP20 5FA Products: GM50/GM100 Equipment Type: Commercial Audio Power Amplifiers. Safety Standard: AMD1: 2005 and IEC Safety Requirements - Audio Video and Similar Electronic Apparatus.
