TruAudio AMP-3512 User Manual

TruAudio AMP-3512 User Manual

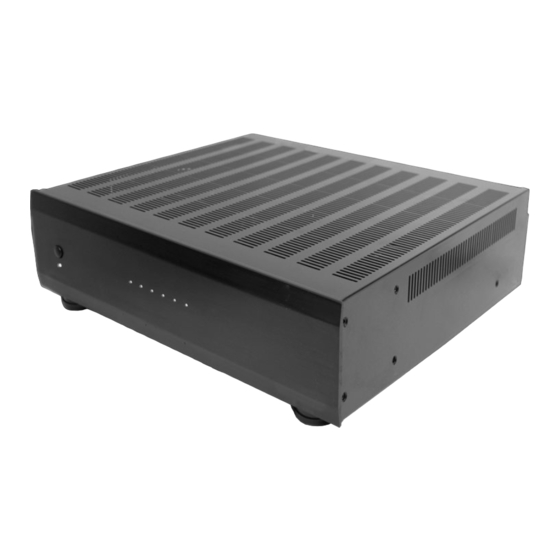

12 channel - 6 zone power amplifier

Advertisement

Quick Links

12 Channel - 6 Zone Power Amplifier
Description
TRUAUDIO's 12-channel power amplifier is a perfect
solution for those multi-room audio installations that
require flexibility and quality sound.
appearance and versatility, this well-constructed amplifier
has many features to enhance your installation and can
be customized to fit any system.
individual input sensitivity control for each channel, local
source input for each channel and BUS 1 and BUS 2
source inputs, bridging between channels, and in and out
auto-sensing triggers.
The specially designed torroid
transformers and cooling fans will minimize unwanted
heat build-up to ensure the long life of the amplifier.
No matter what brand of controller the system requires,
this 12 channel amplifier will deliver audiophile sound and
maximize your listening experience.
Caution:
MAKE SURE TO READ THIS INSTRUCTION MANUAL
BEFORE TURING THE POWER ON OR HOOKING UP
THIS POWER AMPLIFIER.
Never expose the amplifier to any kind of moisture. This
piece should NOT be used near bath tubs, sinks, wet
basements or swimming pools. Also avoid placing this
unit by heat sources such as radiators, heat registers or
stoves.
This unit should not be in direct sunlight.
Before connecting any cables to the amplifier, the power
mush be OFF.
When deciding on where to place the unit, make sure
there is plenty of airflow. Do not set other components
directly on top of the amplifier. If other components must
be placed on top of this piece, you must use some kind of
spacers. If it will be installed into a cabinet, the cabinet
should have proper airflow. Adding an additional cooling
fan might be necessary.
Make sure the speakers that will be connected to this unit
can handle the output power of the amplifier.

User Manual

AMP-3512 • AMP-7012
With smooth
Features include:
We suggest NOT to use any kind of extension cord unless
it is polarized and made from heavy gauge wire. If at all
possible, plug this unit directly into the wall outlet or surge
protection.
General Information and Features
Front Panel
Power Switch: This is used to turn the unit on or off.
LED Indicators: There is one LED indicator for the power
and each zone. When first turning the power on, the
power LED will come on red and then switch to blue to
indicate the amplifier is in a ready mode, if there is no
audio active to any of the inputs approximately 15
minutes later the power light will turn red to indicate it's in
sleep mode. Zone LED lights will come on blue as each
zone senses an audio source to the zone input. In case of
a fault to a particular zone the LED changes to RED. If
the fault remains, the corresponding LED remains red. If
the short circuit is momentary then the zone LED changes
to red and then switches to solid blue after a few seconds.
Once all zones are cleared of faults the front LED's will
turn blue as long as they are active, if no audio source in
present the lights will turn off to indicate the zones are in
sleep mode.
Rear Panel
BUS 1 and 2 Inputs: There are "right" and "left" RCA style
connectors labeled as "1" & "2". These inputs are used
for sending a single audio source (i.e. CD, Tuner, MP3
etc.) to more than one zone.
correctly, see "Amplifier Connection" later in this manual.
BUS 1 & 2 Output: There are "right" and "left" RCA style
connectors labeled as "1" & "2". These outputs are used
to loop the audio source that is connected to the "BUS
INPUTS" out to a second AMP7012.
Individual Zone Line Inputs: These RCA style input
connectors are the audio inputs for each individual
channel of the amplifier. These inputs are to have audio
sources dedicated to a single channel or zone on the
For using this feature

Advertisement

loading
Need help?

Need help?

Do you have a question about the AMP-3512 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TruAudio AMP-3512

  • Page 1: User Manual

    Description it is polarized and made from heavy gauge wire. If at all possible, plug this unit directly into the wall outlet or surge TRUAUDIO’s 12-channel power amplifier is a perfect protection. solution for those multi-room audio installations that require flexibility and quality sound.
  • Page 2 amplifier. We suggest using a good quality RCA patch connector, check for any wire strands that might be cable for best performance. The RCA inputs are labeled sticking out the connection terminal that might cause a “Left” and “Right”. short. BR/ST Switch: This is used to switch each individual These amplifiers are stable down to 4 ohms.
  • Page 3 Input requirements, domestic: 120VAC, 50-60Hz the return. This unit should not be shipped back to Trigger IN: 3 - 30V AC or DC TRUAUDIO without the RA#. Trigger OUT: 12VDC out w/100mA Dimensions: 3.9” H, 16.4” W, 14.5” D Weight: 27.5 lbs...
  • Page 4: Product Warranty

    These warrantees shall not apply to products which have been abused, modified, disassembled, or repaired by anyone other than TRUAUDIO or one of its appointed service centers. Products to be repaired under this warranty must be returned to the factory or designated service center with all transportation and insurance charges pre-paid.
