- Page 1 User Manual - D16...

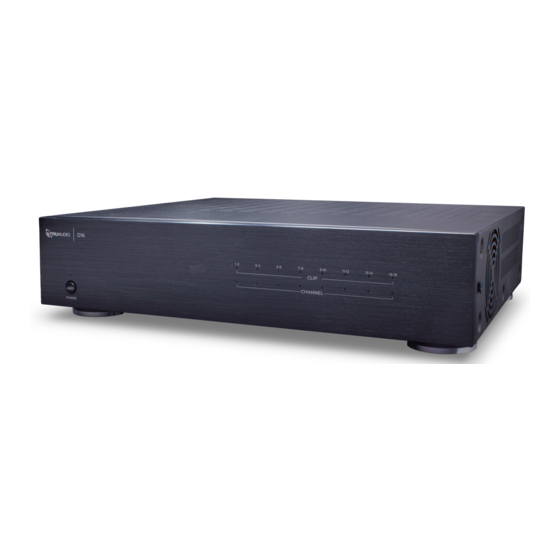

- Page 4 Front Panel Power switch on the front of the D16 will light “blue” when the D16 is on, the light will be off when the amplifier is powered off, and red when in standby. We have placed an LED light ladder on the front of the amplifier to help you quickly identify the state of the amp by zone.
- Page 5 Front Panel LED Lights Quick Reference Chart LED COLOR DESCRIPTION POWER BLUE Unit is on Unit is in standby, no signal Unit is off CHANNEL BLUE Zone is active Zone fault No signal Source is set to high CLIP Source is set correctly NOTE: If the channel LED is RED you have a fault and need to fix that issue.
- Page 6 When the amplifier detects an audio signal the D16 will turn on. After approximately 20 minutes without an audio signal the amplifier will go into standby mode. When the D16 is in sleep mode there will be a 10 to 15 second delay to power the amplifier back on and play an audio signal.
- Page 7 ST/BR Switch (Stereo/Bridge) Use this switch to change between stereo and bridge mode for each zone. Stereo Mode: Stereo mode will play the audio entering the amplifier through the left & right input channels out to the left & right speakers attached to that zone. Bridge Mode: Bridged mode will take the audio entering the LEFT channel of the zone ONLY and send it out of the outermost ports of the phoenix connector.
- Page 8 AC Voltage Input AC voltage switch is set to 115V, if using this amplifier in a location where you will be using 220V than you MUST undo the screws holding the clear glass over the voltage switch and push the slider to the right to the 220V setting. 115V Switch Position 220V Switch Position Sample Home Installation...
- Page 9 (Diagram shows input set to “line in”) Subwoofer Wiring SPEAKERS There are multiple ways to configure setup of a subwoofer on the D16. 1. To an active powered subwoofer or subwoofer amplifier 2. To a passive subwoofer (1) Using the Subwoofer RCA output to a stand alone powered subwoofer.
- Page 10 (2a) Adding multiple IC-SUB 8 subwoofers SOURCE SPEAKERS SUBWOOFERS (3) Output a subwoofer signal over speaker wire to (TWO) TruAudio IC-SUB 8 from a single zone. • Attach your source to the “line in” or “bus in” • Set the input switch to the appropriate source •...
- Page 11 (4) Output a subwoofer signal over speaker wire to (ONE) TruAudio BP-SUB 12 at 4Ω • Attach your source to the “line in” or “bus in” SOURCE • Set the input switch to the appropriate source. Set the speaker zone to “ST” Stereo •...
- Page 12 Wiring a room with four 8Ω speakers and one In-Ceiling Sub: using 2 zones of the D16 amplifier SOURCE • Attach your source using the “line in” or “Bus in” • Run a single RCA cable from the “SUB OUT”...
- Page 13 The D16 has ventilation ports on all sides along with 2 fans to help keep it running cool. The D16 must have 2.5” of space on both sides and 1U (1.75”) above and below the amplifier. If placing the D16 in a cabinet you MUST make sure the...
-
Page 14: Speaker Impedance
This happens because of amplifier standards we must be in compliance with. If you would like to avoid the delay you can leave the amp in “ON” mode. (when the D16 is not playing music for about 20 minutes it will automatically go into low power mode) -
Page 15: Specifications
If yo u h ave a ny quest ions re ga rd in g th is o r an y o th e r TRUAUD IO pr oduct s, please cal l 1-888-858-1555, Monday – Fri day, 7:00 am – 6:00 pm MST. TRUAUDIO Speaker System s, Hu rr icane, U tah, 84737...
