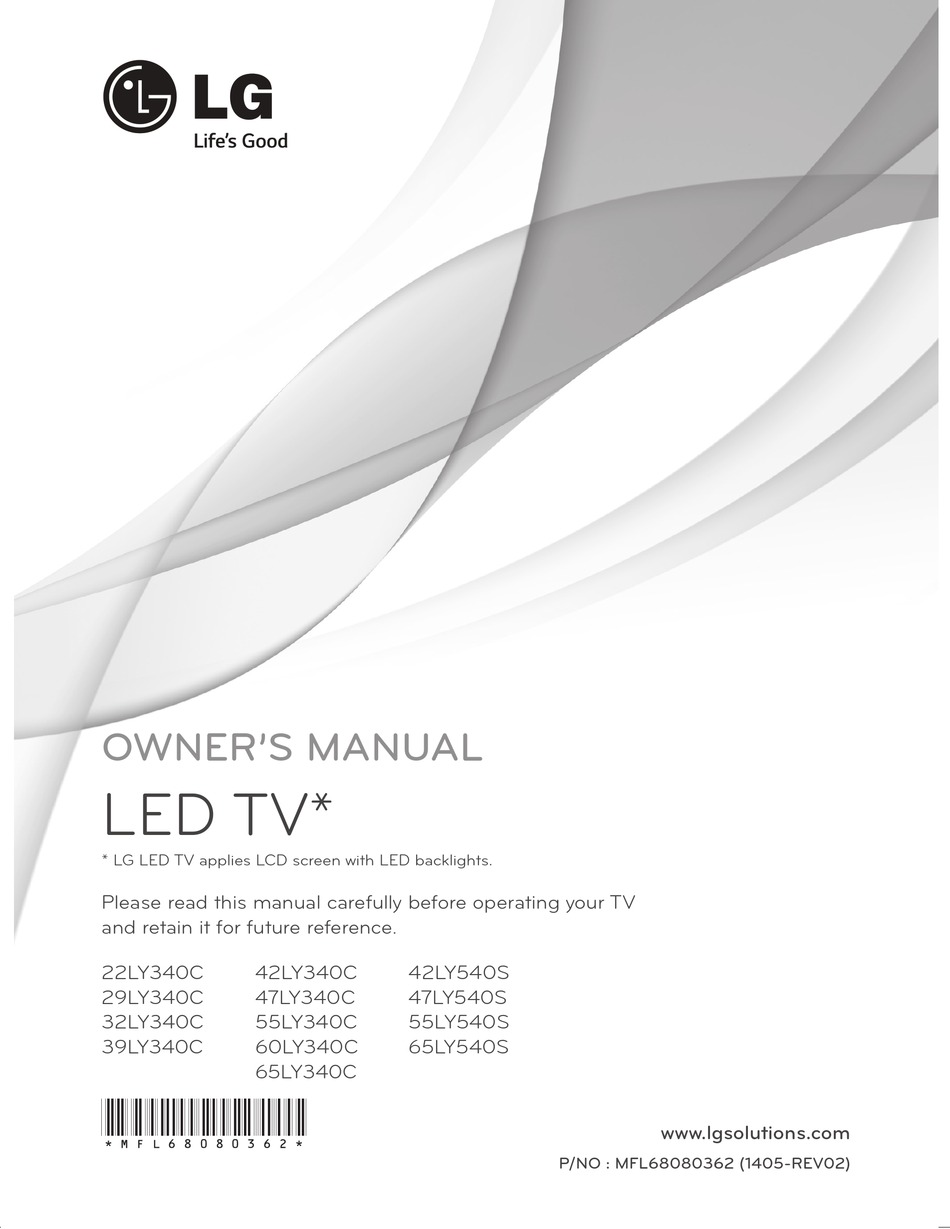

OWNER'S MANUAL
LED TV*
* LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your TV
and retain it for future reference.
22LY340C
42LY340C
29LY340C
47LY340C
32LY340C
55LY340C
39LY340C
60LY340C
65LY340C
*MFL68080362*
42LY540S
47LY540S
55LY540S
65LY540S
P/NO : MFL68080362 (1405-REV02)
www.lgsolutions.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LG 22LY340C
Summary of Contents for LG 22LY340C
- Page 1 OWNER’S MANUAL LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your TV and retain it for future reference. 22LY340C 42LY340C 42LY540S 29LY340C 47LY340C 47LY540S 32LY340C 55LY340C 55LY540S 39LY340C 60LY340C...
-
Page 2: Instructions
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product. Read these instructions. WARNING/CAUTION Keep these instructions. Follow all instructions. RISK OF ELECTRIC SHOCK Heed all warnings. DO NOT OPEN •... -
Page 3: Instructions
IMPORTANT SAFETY INSTRUCTIONS • Protect the power cord from being walked on • CAUTION concerning the Power Cord or pinched particularly at plugs, convenience (Can differ by country): receptacles, and the point where they exit It is recommended that appliances be from the apparatus. -
Page 4: Instructions
If you smell smoke or other odors coming any way without written authorization from from the TV, unplug the power cord and LG Electronics. Unauthorized modification contact an authorized service center. could void the user’s authority to operate this •... -
Page 5: Instructions
IMPORTANT SAFETY INSTRUCTIONS • Dot Defect Preventing image burn or burn-in on your The panel is a high technology product with TV screen resolution of two million to six million pixels. In a very few cases, you could see fine dots on the screen while you’re viewing the TV. -
Page 6: Instructions
LG Electronics evaluates products’ recyclability at the design step using LG’s recyclability evaluation tool, with the goal of improving recyclability where practicable. Through these activities, LG seeks to contribute to conserving natural resources and protecting the environment. -
Page 7: Licenses
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. -
Page 8: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS IMPORTANT SAFETY SPECIFICATIONS INSTRUCTIONS IR CODES LICENSES EXTERNAL CONTROL DEVICE OPEN SOURCE SOFTWARE SETUP NOTICE RS-232C Setup Type of Connector; D-Sub 9-Pin Male TABLE OF CONTENTS RS-232C Configurations Communication Parameters ASSEMBLING AND PREPARING Command Reference List Transmission / Receiving Protocol Unpacking Parts and Buttons... -
Page 9: Assembling And Preparing
The illustrations in this manual may differ from the actual product and item. (For 32/39/42/47/55/60LY340C, 42/47/55LY540S) Remote Control, Owner’s Manual Stand Base Batteries (AAA) (For 65LY340C, 65LY540S) (For 22LY340C) (For 29LY340C) Stand Base Stand Base Stand Base (For (For 42LY340C, 42LY540S) 32/39/42/47/55/60/65LY340C, 42/47/55/65LY540S) Stand Holder... - Page 10 42/47/55/65LY540S) Stand Screws Stand Screws Power Cord 4 EA, M4 x L20 4 EA, M4 x L14 (For 29LY340C) (For 22LY340C) Power Cord, AC/DC Adapter AC/DC Adapter (Depending upon model) (Depending upon model) CAUTION • Do not use any unapproved items to ensure the safety and product’s lifespan.
-
Page 11: Parts And Buttons
ASSEMBLING AND PREPARING Parts and Buttons (For 22/32/39/42/47/55/60/65LY340C, 42/47/55/65LY540S) Screen Speakers Joystick Button Remote Control Sensor Intelligent Sensor (Depending upon model) Power Indicator 1. Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment. 2. Joystick Button is located below the screen of TV. NOTE You can set the power indicator light to on or off by selecting OPTION in the main menus. -
Page 12: Using The Joystick Button
ASSEMBLING AND PREPARING Using the Joystick Button You can simply operate the TV functions, pressing or moving the joystick button up, down, left or right Basic functions When the TV is turned off, place your finger on the joystick button and Power On press it once and release it. - Page 13 ASSEMBLING AND PREPARING (For 29LY340C) Screen Speakers SETTINGS INPUT Touch Buttons Touch Button Description Scrolls through the saved channels. Adjusts the volume level. Selects the highlighted menu option or confirms an input. SETTINGS Accesses the main menus, or saves your input and exits the menus. INPUT Changes the input source.
-
Page 14: Lifting And Moving The Tv
(For 22LY340C) • Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area. - Page 15 ASSEMBLING AND PREPARING (For 29LY340C) (For 32/39/42/47/55/60/65LY340C, 42/47/55/65LY540S) A Stand Base B Stand Base (For 32LY340C) 4 EA Stand Base M4 x L20 (For 39/42/47/55/ 60/65LY340C, 42/47/55/65LY540S) 4 EA M4 x L14...
-
Page 16: Mounting On A Table
ASSEMBLING AND PREPARING Mounting on a Table (For 22/29LY340C) Lift and tilt the TV into its upright position on (For 32/39/42/47/55/60/65LY340C, a table. 42/47/55/65LY540S) - Leave a 10 cm (4 inches) (minimum) space Lift and tilt the TV into its upright position on from the wall for proper ventilation. -
Page 17: Mounting On A Wall
Detailed instructions will be included with the wall mount. We recommend that you use an LG brand wall mount. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. - Page 18 • If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel. When using a third-party wall mount, it is not covered by the warranty.
-
Page 19: Making Connections
MAKING CONNECTIONS MAKING CONNECTIONS • Image shown may differ from your TV. You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices. For more information on external device’s connection, refer to the manual provided with each device. -
Page 20: Other Connections
MAKING CONNECTIONS Other Connections Connect your TV to external devices. For the best picture and audio quality, connect digital devices using an HDMI cable. Any separate cable is not provided. Digital Audio System Modem / Router OPTICAL AUDIO IN ETHERNET Speaker (8 Ω) LY540S series OPTICAL... - Page 21 MAKING CONNECTIONS Blu-Ray / HD Cable Box / HD STB / DVD / PC HDMI DVI OUT AUDIO OUT LY540S series For LY540S series EXTERNAL DIGITAL SPEAKER OUT AUDIO OUT RGB IN (PC) RS-232C IN (CONTROL & SERVICE) ANTENNA/ CABLE IN MHL Cable DC-IN (19 V...
-
Page 22: Remote Control
REMOTE CONTROL REMOTE CONTROL The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To install batteries, open the battery cover, replace batteries (1.5 V AAA) matching the ends to the label inside the compartment, and close the battery cover. -
Page 23: Maintenance
MAINTENANCE MAINTENANCE Cleaning your TV Clean your TV regularly to keep it at peak performance and to extend the product’s lifespan. CAUTION • Before cleaning, turn the power off and disconnect the power cord and all other cables. • When the TV is left unattended or unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges. -
Page 24: Troubleshooting
The software may be updated for improvement in performance. The customer is responsible to ensure the compatibility of their equipment with any LG Electronics software. If needed, please consult with LG Electronics and update new software versions according to the guidance provided by LG Electronics. -
Page 25: Specifications
1.6 A 19 V 2.2 A Manufacturer: Lien Chang Manufacturer: Lien Chang Model: LCAP16B-A Model: LACP35 Manufacturer: LG Innotek Manufacturer: APD AC/DC Adapter Model: PSAB-L205C Model: DA-48F19 In: AC 100 - 240 V ~ 50/60 Hz Out: 19 V 2.1 A Out: 19 V 2.53 A... - Page 26 SPECIFICATIONS 42LY340C 42LY540S MODELS (42LY340C-UA) (42LY540S-UA) 961 x 612 x 218 (mm) With stand 37.8 x 24.0 x 8.5 (inches) Dimensions (W x H x D) 961 x 567 x 55.5 (mm) Without stand 37.8 x 22.3 x 2.1 (inches) With stand 9.5 kg (20.9 lbs) Weight...
- Page 27 SPECIFICATIONS 60LY340C MODELS (60LY340C-UA) 1,373 x 851 x 283 (mm) With stand 54.0 x 33.5 x 11.1 (inches) Dimensions (W x H x D) 1,373 x 801 x 58.8 (mm) Without stand 54.0 x 31.5 x 2.3 (inches) With stand 23.5 kg (51.8 lbs) Weight Without stand...
- Page 28 SPECIFICATIONS RGB (PC), HDMI (PC) supported mode Component port connecting information (HDMI IN 2 does not support PC mode.) Component ports on the TV Horizontal Vertical Resolution Frequency (kHz) Frequency (Hz) 640 x 350 31.468 70.09 Video output ports on DVD player 720 x 400 31.469 70.08...
-
Page 29: Ir Codes
IR CODES IR CODES (Depending upon model) Code Code Function Note Function Note (Hexa) (Hexa) ◄◄ (POWER) Remote control Button Remote control Button (Power On/Off) AV MODE Remote control Button 79 RATIO Remote control Button INPUT Remote control Button PICTURE Remote control Button Remote control Button SOUND... -
Page 30: External Control Device Setup
EXTERNAL CONTROL DEVICE SETUP EXTERNAL CONTROL Type of Connector; D-Sub 9-Pin Male DEVICE SETUP RS-232C Setup Connect the RS-232C (serial port) input jack to an external control device (such as a computer or an A/V control system) to control the product’s functions externally. -
Page 31: Rs-232C Configurations
EXTERNAL CONTROL DEVICE SETUP RS-232C Configurations Set ID Set ID number; “Real Data Mapping” 7-Wire Configuration (Serial female-female NULL modem cable) Press SETTINGS to access the main menus. Press the Navigation buttons to scroll to Option and press OK. Press the Navigation buttons to scroll to Set ID and press OK. -
Page 32: Communication Parameters
EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate: 9600 bps (UART) • Stop bit: 1 bit • Data length: 8 bits • Communication code: ASCII code • Parity : None • Use a null modem cable. Command Reference List DATA DATA COMMAND1 COMMAND2... -
Page 33: Transmission / Receiving Protocol
EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the set.(j, k, m or x) [Command 2] : Second command to control the set. [Set ID] : You can adjust the set ID to choose desired set ID number in Option menu. Adjustment range is 1~ 99. - Page 34 EXTERNAL CONTROL DEVICE SETUP 01. Power (Command: k a) 04. Screen Mute (Command: k d) To control Power On/Off of the set. To select screen mute on/off. Transmission [k][d][ ][Set ID][ ][Data][Cr] Transmission [k][a][ ][Set ID][ ][Data][Cr] Data 00: Power Off Data 01: Power On Data 00: Screen mute off (Picture on), Video- out Mute off...
- Page 35 EXTERNAL CONTROL DEVICE SETUP 08. Brightness (Command: k h) 12. OSD Select (Command: k l) To adjust screen brightness. To select OSD (On Screen Display) on/off. Transmission [k][l][ ][Set ID][ ][Data][Cr] You can also adjust brightness in the PICTURE menu. Data 00: OSD off Data 01: OSD on Transmission [k][h][ ][Set ID][ ][Data][Cr]...
- Page 36 EXTERNAL CONTROL DEVICE SETUP Data03 04: 3D Picture Balance 00: Right to Left 05: 3D Optimization 01: Left to Right Data04 Data02: It has own range for each 3D option determined by Data01. 3D Depth: Min : 00 ~ Max : 14 1) When Data01 is 00 (*transmit by Hexadecimal code) 00: Right to Left...
- Page 37 EXTERNAL CONTROL DEVICE SETUP Data 01 & 02: Major Channel Number 21. Key (Command: m c) Data 01: High byte Data 02: Low byte To send IR remote key code. Two bytes are available for the Major and Transmission [m][c][ ][Set ID][ ][Data][Cr] Minor, normally only the second byte is used.
- Page 38 EXTERNAL CONTROL DEVICE SETUP * Table List (Channel Tuning) Two/One Using Main/Sub Part Physical Step Picture Reserved Channel Channel Main NTSC Air No Use NTSC Cable ATSC Air ATSC Cable_std ATSC Cable_hrc ATSC Cable_irc ATSC cable_auto Reserved Reserved...
-
Page 39: Child Safety
CHILD SAFETY: PROPER TELEVISION PLACEMENT MATTERS THE CONSUMER ELECTRONICS INDUSTRY CARES • Manufacturers, retailers and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable. • As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations. - Page 40 LG Customer Information Center Declaration of Conformity For inquires or comments, visit www.lg.com or call; Trade Name: LG 1-888-865-3026 USA, Commercial User Model: 1-888-542-2623 CANADA 22/29/32/39/42/47/55/60/65LY340C-UA 42/47/55/65LY540S-UA Responsible Party: LG Electronics Inc. Address: 1000 Sylvan Ave. Englewood Cliffs NJ 07632 U.S.A...
