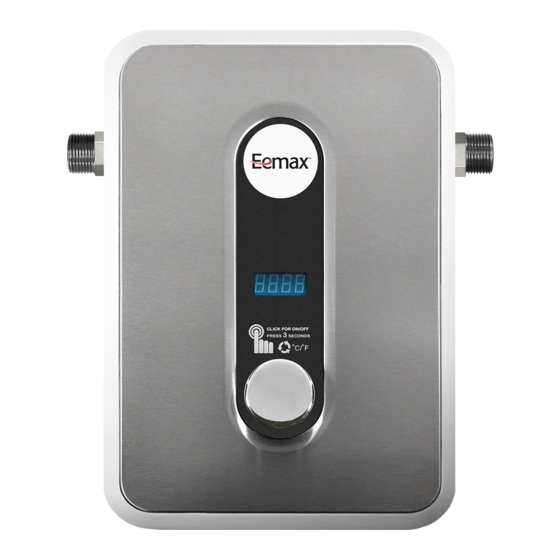

EemaX HA008240 Installation Manual
Hide thumbs
Also See for HA008240:
- Installation instructions & owner's manual (13 pages) ,
- Troubleshooting manual (2 pages) ,
- Installation manual (8 pages)
Related Manuals for EemaX HA008240
Summary of Contents for EemaX HA008240
-
Page 1: Installation Manual

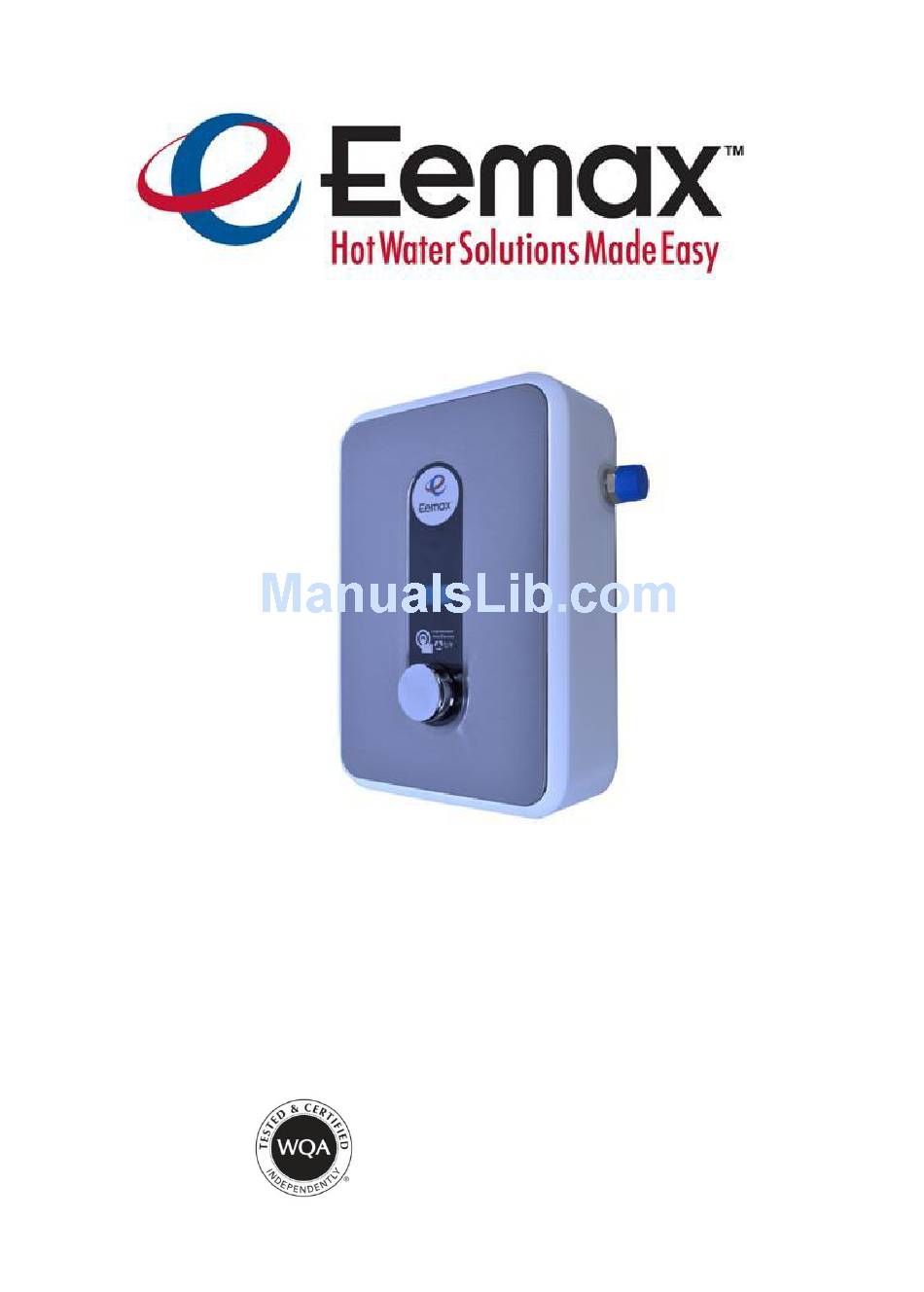

Installation Manual HA008240 - HA011240 - HA013240 Tested and certified by the Water Quality Association against NSF/ANSI 372 for lead free compliance. -
Page 2: Important Safety Information
• DO NOT Operate the unit if water ceases to flow during use. Contact technical support for this or any other issue of concern, On the web at: WWW.EEMAX.COM TOLL FREE: 800-543-6163. TELEPHONE: 203-267-7890 • Although installation is simple, DO have a licensed Plumber & Electrician perform the installation. -
Page 3: Part Identification
Part Identification Hot Water Outlet Cold Water Inlet Celsius / Fahrenheit Conversion Setting Temp, Display Power Knob & Temp. Controller Wire Copper Ring Copper Nut... - Page 4 Plumbing This water heater is supplied with 1/2" compression fittings, Do not weld, solder, use Teflon or paste. Connect the cold water supply line to the right hand side. Connect the hot water outlet line to the left hand side. Once both water lines are fastened and secured you must run water through the unit for at least 2 to 3 minutes to flush any air pockets (purging) in the lines.
-
Page 5: Electrical Connection
Model Specs below REQUIRED MAX AMP BREAKER DRAW MODEL AWG Cable HA008240 1 x40AMP* HA011240 1 x50AMP* HA013240 1 x60AMP* *Double Pole Check all wires to make sure they are securely fastened and tightened. Before turning the power on make sure the system has been purged as required in the plumbing section. - Page 6 How to use the knob Power •Click the power knob, the unit will turn on •Click the power knob again, the unit will turn off °C/F Conversion •Press the knob for 3 seconds, the display will change Temperature Control •Turning it clock wise increases the temperature setting •Turning it counter-clockwise will decrease the temperature setting...
- Page 7 FOR ANY CHANGES OR VARIATIONS RISE IN FLOW RATE IN BATHS WATER MODEL VOLTS AMPS GALLONS PER TEMP HA008240 240V HA011240 11KW 240V HA013240 13KW 240v GAUGE AND BREAKER SIZE CAN VARY BASED ON A NUMBER OF FACTORS INCLUDING SUPPLIED VOLTAGE AND LENGTH OF CIRCUIT CHECK LOCAL REQUIREMENTS.
- Page 8 Eemax Inc. 400 Captain Neville Drive, Waterbury, CT 06705 TOLL FREE: TELEPHONE: 203-267-7890 FAX: 203-267-7975 800-543-6163. e-mail: info@eemaxinc.com www.eemax.com...
