Summary of Contents for Marshall-Tufflex e-Tracker
- Page 1 Portable Energy Monitor Operating & maintenance manual...
-
Page 2: Table Of Contents
Sinergy is a well established in the sub metering market and was brought into the Marshall-Tufflex Energy Management group in 2010. Marshall-Tufflex Ltd is a market leader in the electrical industry and has been trading for over 70 years and includes a wide portfolio of Cable Management and Energy Management product solutions. -
Page 3: What Is E-Tracker

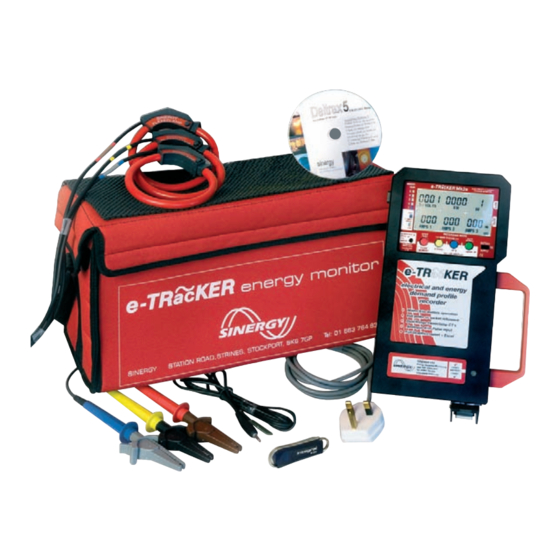

CT amps range indicator compatible *In battery only operation the e-Tracker will only give accurate current measurements, all other readings will be assumed. The e-Tracker also displays average and peak demand to enable the calculation of load factor. Deltrax5 software highlights demand excursions and potential unauthorised consumption. -
Page 4: Installation And Set Up
CTs to all appropriate cables/conductors with all arrows facing the load. All transducers including voltage reference inputs (if used) should be fitted and connected to e-Tracker before e-Tracker is switched on. Practical and accurate connection options for single and 3 phase use:... - Page 5 Tracker can accept a volt free contact closure from any suitable gas, water or electric metre. Alternatively the Magpeye optical metre reader may be connected. Normal analogue inputs are usable at the same time as pulse input. e-Tracker portable energy monitor operating and maintenance manual...
-
Page 6: E-Tracker Set Up Prompts And Controls
Once the e-Tracker has been installed slide BATTERY SUPPLY switch ON. The display will show SELF TEST followed by: 1) Time and date adjustment If date and time correct press ENTER Alter flashing character(s) using CHANGE and... - Page 7 9) Downloading e-Tracker to USB memory stick With USB memory stick fitted and e-Tracker switched on, hold down START button until green LED is illuminated. It will then flash to indicate data processing. 'Serial out' will also appear on display while data is buffered prior to loading on USB memory stick.
-
Page 8: Error Messages
ID ERR 2 CTS ODD MTH-DAY HRS-MINS MTH-DAY HRS-MINS 2011 07.14 10.40 2011 07.14 10.40 (2 messages flashing) CTs wrong way round or CTs not in l1 connector when used on single phase e-Tracker portable energy monitor operating and maintenance manual... - Page 9 LO indicates which channel(s) has insufficient signal. Increase phase current if possible, switch off, switch on (after 5 seconds) and try again. Manual set up routine Switch off e-Tracker, plug in EV-Trac probe and switch on after 5 seconds. The SELF TEST routine starts. Followed by:...
-
Page 10: E-Tracker Operational Specification
EN55022:1994, EN50082 Pt.1 1992 Memory Span e-Tracker has capacity to store 16,000 lines of all parameters, either on one file or as an aggregate total on up to five separate recording files. Recording will stop when the memory is full. -
Page 11: Ct Selection
15mm 45mm 1-100 1.0% Deltrax5 software guidelines Contents 1. The File List 2. The File Menu 2.1 Import from USB memory stick (e-Tracker Mk 2B) 2.2 Graph 2.3 Report 2.4 Delete 2.5 Show files 2.6 Manage data 2.7 Manage reports 3. -
Page 12: The File Menu
You will be directed to a standard file selection box where you need to locate the data that is on your USB memory stick. All e-Tracker MK 2B data is contained in files with a .dat extension. e-Tracker portable energy monitor operating and maintenance manual... -
Page 13: Graph
Right click anywhere on the graph for more options, including printing Use the Preferences – Graph Preferences menu item to customize your graph (please refer to The preferences menu on page 15). e-Tracker portable energy monitor operating and maintenance manual... -
Page 14: Report
Additionally, reports can be moved. A Deltrax5 report consists of a set of PDF files, or an Excel file. If you want to provide this information to someone then use this facility to send the report to the file location of your choice. e-Tracker portable energy monitor operating and maintenance manual... -
Page 15: Precision Clip On Thssb 15Mm 45Mm 1-100 1.0
More recent versions of Office have seen the Excel software being installed in any of the following locations: C:\Program Files\Microsoft Office\Office10 C:\Program Files\Microsoft Office\Office11 C:\Program Files\Microsoft Office\Office12 C:\Program Files\Microsoft Office\Office13 etc. e-Tracker portable energy monitor operating and maintenance manual... -
Page 16: Hinged Clip On Tc16 16Mm 54Mm 4-200 1.0% 16X16
Always Save your Tariffs and the 'Days' within them Remember – if you have more than one tariff saved, set the one that is used on Graphs and reports using the Preferences – Graph Preferences menu option e-Tracker portable energy monitor operating and maintenance manual... -
Page 17: Edit Tariff
Windows operating systems The Deltrax5 CD contains software that should automatically install the current drivers/software to suit the PC it is being installed on. e-Tracker portable energy monitor operating and maintenance manual... -
Page 18: Trouble Shooting
(Note ensure 3Amp fuse in 13Amp plug is okay). 2) If charging fails to cure the problem, either the battery is flat or your e-Tracker program could be corrupted. Your unit would need to be returned to factory for reprogramming or to fit a new battery. - Page 20 Churchfields Industrial Estate Hastings East Sussex TN38 9PU T 01424 856610 F 01424 856640 E info@marshalltufflexenergy.com www.marshalltufflexenergy.com In pursuance of our policy of continued improvement Marshall-Tufflex Energy Management reserve the right to change the design or specification of its products without notification. EY120/11104...
