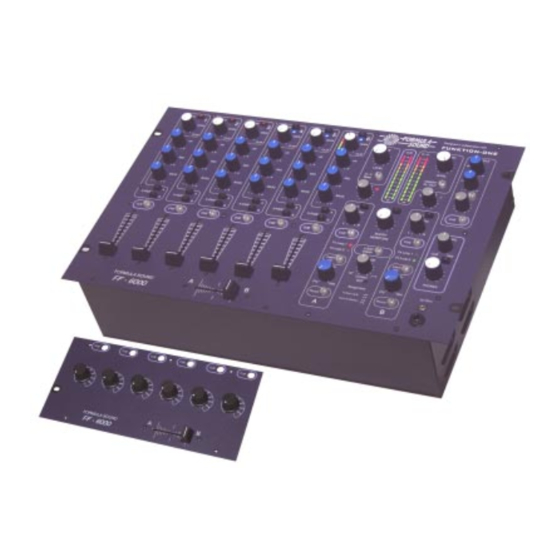

Formula Sound FF - 6000 User Manual

Dual format dj mixer
Hide thumbs

Advertisement

Quick Links

Download this manual
FF - 6000
DUAL FORMAT DJ MIXER
USERS MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the FF - 6000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Formula Sound FF - 6000

Summary of Contents for Formula Sound FF - 6000

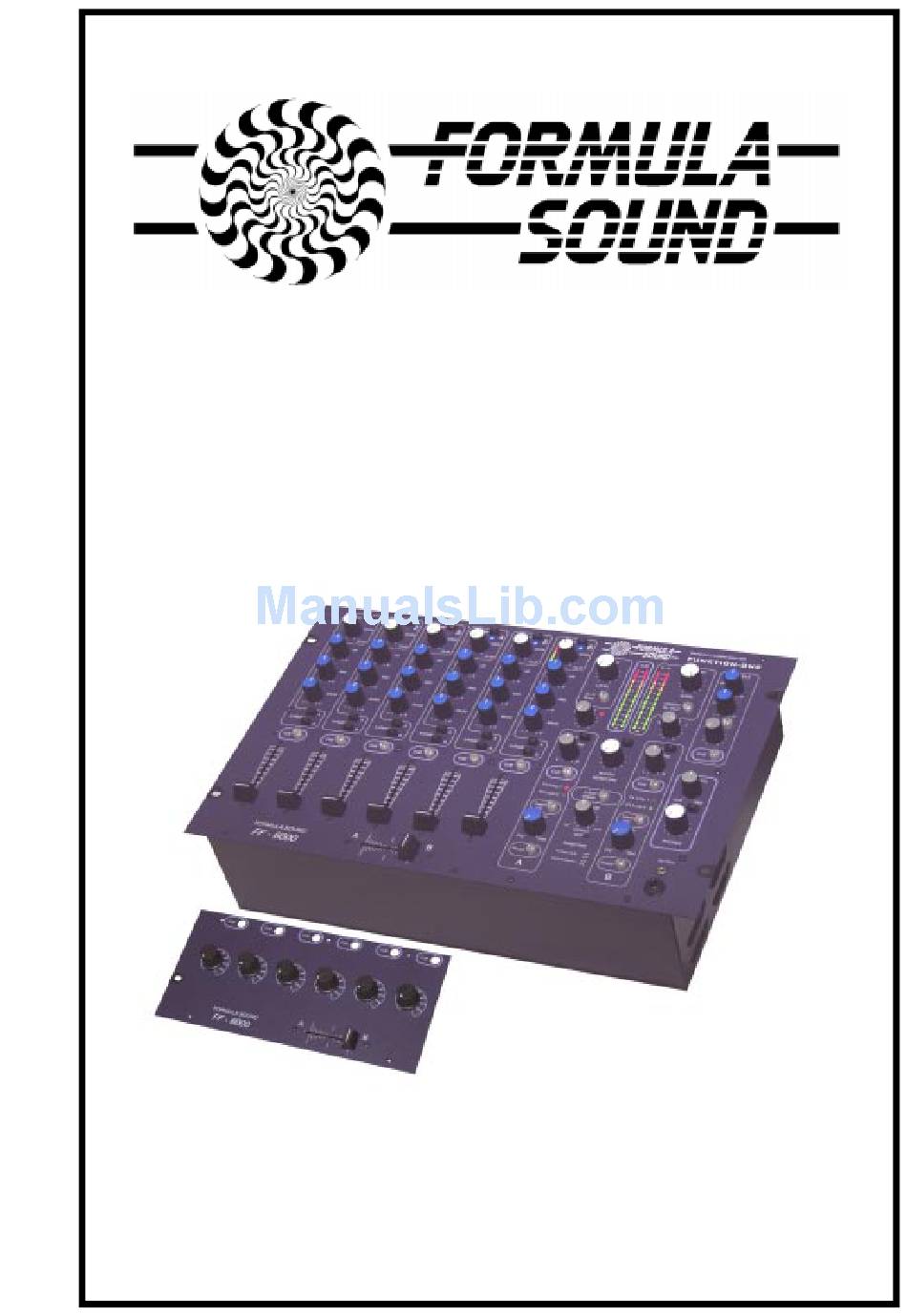

  • Page 1 FF - 6000 DUAL FORMAT DJ MIXER USERS MANUAL...
  • Page 2 Funktion One, who canvassed many DJs world wide on their requirements. The result is a mixer which is not only of the highest sound quality, as you would expect from Formula Sound, but also incorporates the features and layout which DJs have asked for.

  • Page 3: Master Section Overview

    Master Section Overview Main and Zone outputs are available in stereo, along with a separate mono output. All these outputs are balanced on XLR connectors. Booth monitors output is available in stereo or switchable to mono and again these outputs are balanced on XLR connectors. A recording output is provided on gold plated phono sockets.
  • Page 4 INPUT CHANNELS 1 AND 2 LINE Input Sources. These channels have balanced low impedance low noise microphone inputs on XLR connectors and a normal stereo line GAIN input on twin gold plated RCA phono connectors. Input selector switch selects the input used. CLIP Button depressed selects Mic (XLR connector) Button not depressed selects Stereo line input.
  • Page 5 INPUT CHANNELS 3 to 6 PH/LINE Input Sources. These channels have a stereo RIAA phono stage and LINE a normal stereo line input both on twin gold plated RCA phono GAIN connectors. The phono stage may be configured as a second line input by depressing a concealed push switch available through a hole in the rear panel.

  • Page 6: Master Section

    Master section CONSOLE ZONE O / P MASTER The master section contains all the electronics required for the various summing amplifiers, output stages, VU meters, crossfade control circuits, etc. LEVEL LEVEL Monitoring The monitoring section of the FF-6000 is O / P INSERT Meter IN / OUT...
  • Page 7 Master section continued BOOTH MONITORS - This control adjusts the level of the booth monitors output which is a mix of channels 1 to 6 only (console microphone not present in either output). The balanced outputs are via 3 pin XLR connectors. A mono signal may be obtained by using mono button located above. INSERTS - General information Insert sockets in the form of 3 pole 1/4”...

  • Page 8: Ground Loops

    Operational Information or how to get the best out of your mixer Gain In an audio mixer different signal levels from various items of equipment need to be amplified or attenuated to a common level so that they can be added or mixed together. These signal levels may differ considerably depending on the equipment.
  • Page 9 Formula Sound reserve the right to alter specifications at any time without notice. All Formula Sound products are designed and manufactured in our own factory which enables us to maintain strict quality at every stage of manufacture. This attention to detail has helped to win us 14 industry awards to date and has earned us a world wide reputation for the high quality and reliability of our products.
  • Page 10 FF- 6000 Specifications Frequency response E.Q. set flat 20Hz - 20kHz +/-0.5dB Maximum output level Main output Zone output and Booth monitors output active balanced. +22dBu Distortion any input < 0.01% typically <0.005% Noise measured 20Hz-20kHz Stereo inputs e.q. flat gain set to max EIN <...
