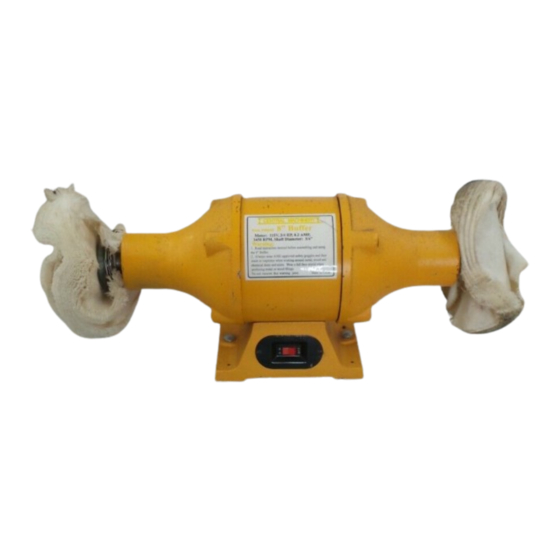

Set up and Operating inStructiOnS
read this material before using this product.
Failure to do so can result in serious injury.
SaVe tHiS manual.
Copyright
1999 by Harbor Freight Tools
©
contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight
Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual
product may differ slightly from the product described herein. Tools required for assembly and service may not
be included.
For technical questions or replacement parts, please call 1-800-444-3353.
(Buffing Wheels Not Included)
distributed exclusively by Harbor Freight tools
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
. All rights reserved. No portion of this manual or any artwork
®
40668
.
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Central Machinery 40668
Summary of Contents for Central Machinery 40668
- Page 1 8” Buffer 40668 Set up and Operating inStructiOnS (Buffing Wheels Not Included) distributed exclusively by Harbor Freight tools ® 3491 Mission Oaks Blvd., Camarillo, CA 93011 Visit our website at: http://www.harborfreight.com read this material before using this product. Failure to do so can result in serious injury.
- Page 2 SpecificationS Model # 40668 Buffer Motor: 115V, 8.2 Amps, 60 HZ, Single Phase, 3/4 HP, 3450 RPM Extended Shaft Diameter: 3/4” Spindle Thread: 3/4” x 12 TPI Spindle Length: 2-5/16” Mounting Flange: 3-3/8” diameter Base Size: 8” x 5-3/4” featureS of thiS Buffer Double-ended spindle accommodates both Polishing and Buffing wheels.
- Page 3 Do not use inappropriate attachments in an attempt to exceed the tool’s capacities. 6. USE THE RIGHT TOOL FOR THE JOB. Do not use a tool for a purpose for which it was not intended. 7. DRESS PROPERLY Do not wear loose clothing or jewelry, as they can be caught in moving parts. Non-skid footwear is recommended. Wear restrictive hair covering to contain long hair. Always wear appropriate work clothing. 8. USE EYE, EAR AnD BREATHIng PROTECTION. Always wear ANSI approved impact safety goggles if you are producing metal filings or wood chips. Wear an ANSI approved dust mask or respirator when working around metal, wood, and chemical dusts and mists. Use ANSI approved ear protection when working in a loud or noisy environment. 9. DO NOT ABUSE THE POWER CORD. Protect the power cord from damage, either from impacts, pulling or corrosive materials. Do not yank machine’s cord to disconnect it from the receptacle. 10. DO NOT OVERREACH. Keep proper footing and balance at all times. Do not reach over or across running machines. 11. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and safer performance. Follow instructions for lubricating and changing accessories. Inspect power cord periodically and, if damaged, have it repaired by an authorized technician. Inspect all hydraulic seals for leaks prior to use. Control handle and power switch must be kept clean, dry, and free from oil and grease at all times. Page 3 SKU # 40668...
- Page 4 Use extreme caution to prevent loose materials from being caught in the wheels. Never operate this buffer with loose clothing, long hair, jewelry, or other items which may become caught in the spinning wheels. In case of entanglement, press the OFF switch immediately. NOTICE: No list of warnings can be all inclusive. The operator must supply common sense, and operate this tool in a safe manner. Page 4 SKU # 40668...
- Page 5 Do not mix these up. Remove the Spindle nut. Then remove the Outer Flange. Slide the Buffing Wheel (Not Included) onto the Spindle. Replace the Outer Flange. Replace the Nut, and tighten firmly. Repeat this process for the other side. NOTE: You may purchase suitable Buffing Wheels and polishing compound from Harbor Freight Tools. Route the Electrical Cord. WARNING: Only plug the power cord into a grounded (3-prong) outlet which delivers 110-120 Volts. We recommend that you use a circuit which is protected by a 30-amp breaker switch. Choose a suitable outlet. Determine a route for the power cord which will keep it away from other tools, moisture, danger of being cut or damaged by other equipment, and away from pathways. Make sure the Power Switch on the front of the Buffer is OFF (pushed in) before plugging in the Power Cord. Safe Operation Never pull the Power Switch out into the ON position until you are prepared to do so. Always wear ANSI-approved eye protection when using this buffer. Hold the workpiece against the buffing wheel slightly below the horizontal mid-point of the wheel, and at a slight downward angle. This will reduce the likelihood of the piece being ejected outward, should it slip from your hands or the holder. Page 5 SKU # 40668...
-
Page 6: Extension Cords
—- Do not modify your plug in any way. If you have any doubt, call a qualified electrician. Maintenance This tool requires very little maintenance. However, to keep it in best condition: Clean your Buffer periodically. Keep the ventilation holes free of debris. When not in use, keep your Buffer covered to prevent moisture damage, and contamination. Page 6 SKU # 40668... - Page 7 Model #40668 Buffer Model #40668 Buffer partS liSt part # description part # description Screw Screw End Bell (left) Plate Bearing Base Stator Pul On Switch Motor Housing Screw Rotor Base End Bell (right) Rubber Pad Terminals Screw Power Cord Capacitor Strain Relief Capacitor Cover PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL AS A REFER-...
