GOLDEN STATE INSTRUMENT GS-2800 CC Instruction Manual

1/3" COLOR SONY CCD CAMERA
INSTRUCTION MANUAL
GS-2800CC
1/3" COLOR CCD CAMERA
Installation INSTRUCTION
Read these instructions carefully before
trying to put the device into operation.
INTRODUCTION
The 1/3 inch color camera has a
CCD image sensor and all solid state circuit
which provide extremely long life and high
reliability with low lag and high burn resi-
stance, and is not subject to distortion from
magnetic, and the camera functions reliably
in a wide temperature range.
MAIN FEATURES
1) By applying high sensitivity, a minimum
object illuminance of 0.8LUX(at F/1.2)
becomes possible.
2) Longevity and no image distortion.
3) The camera can use a C mount or an optional
CS mount lens ,therefore,general use of a variety
of C mount or CS mount lenses is possible.
4) CCD iris with electrical shutter,Max
1/120,000 Sec.
5) DC12V INTERNAL SYNC.
AC24V AUTOMATIC LINE LOCK.

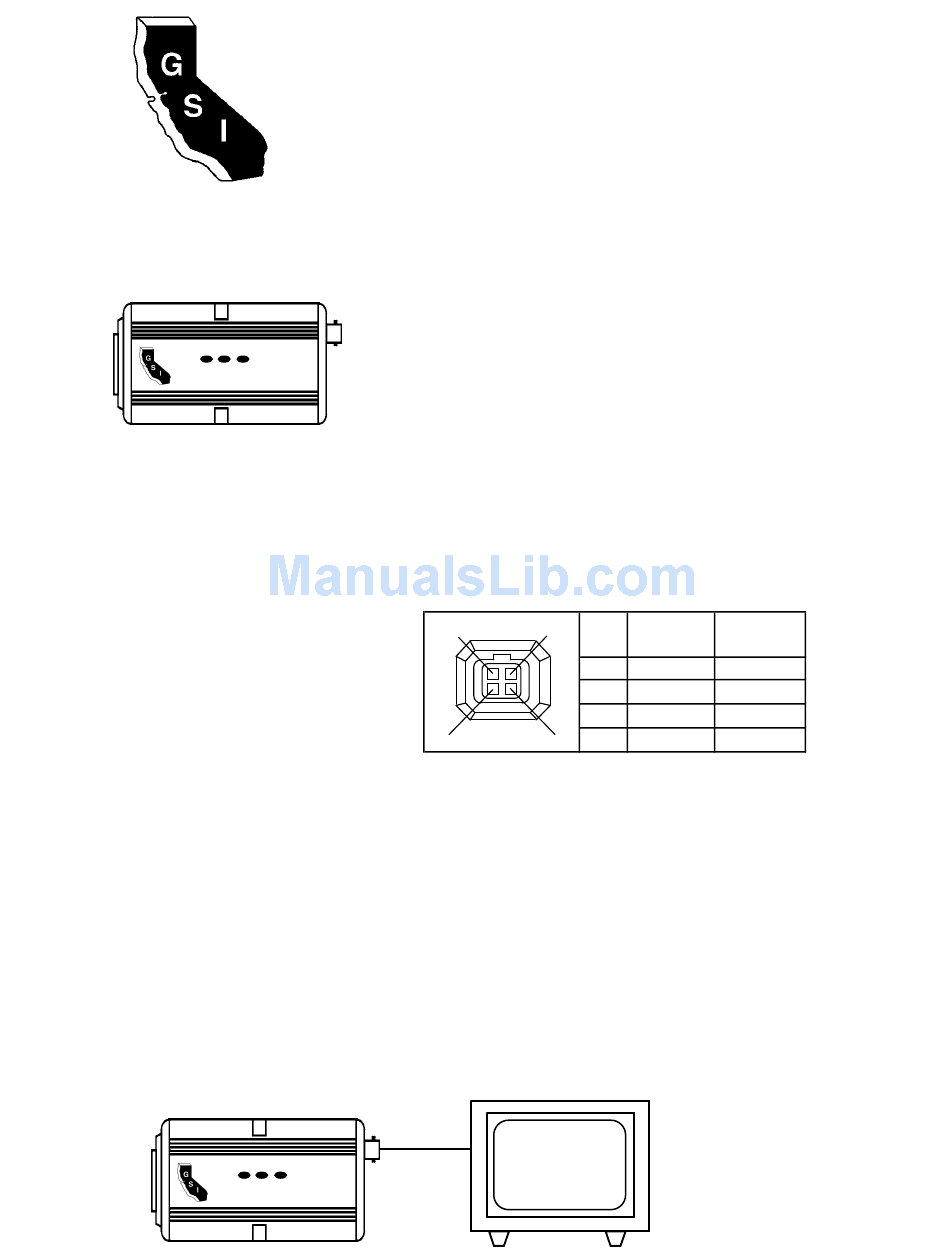

A. FUNDAMENTAL SYSTEM
1/3" COLOR CCD CAMERA
GOLDEN STATE INSTRUMENT CO.
GS-2800 CC
1/3" COLOR SONY CCD CAMERA
HOW TO USE CAMERA ：
1) Connect a 75 ohm coaxial cable from the camera rear panel
BNC connector(video out) to a monitor.
2) Use only AC/DC power supply. Be sure to connect each lead to
appropriate terminal.
3) Once the image appears, adjust the focus of lens on an object
while looking at the monitor.
4) Screw the lens figer tightly into the C mount. If CS mount is
required, release 2 screws attaching the mounting base, also,
release one screw from the bottom of the camera,and one screw
from cover of camera.
5) If the lens has Video Drive Auto Iris, connect three wires to the
4 pin plug as shown in figure below.
6) If the lens has DC Drive Auto Iris, connect four wires to the 4
pin plug as shown in figure below.
Auto IRIS Pin Definitions
2
4
7) Slide the switch on the back panel to the position of
"ON ".If electronic shutter function is required.
8) Slide the switch on the back panel to the position of
"OFF "while the Auto Iris lens is being used.
9) Slide the switch on the side to the position of "VIDEO"
in using the Video Drive Auto Iris lens. The switch should
be slided to the position of "DC " for DC Drive Auto
Iris lens. For better performance in using the DC drive
lens,the user may adjust the level adjustment (level) to
the right position.
10) Back Light Compensation is ON/OFF switch control.
VIDEO MONITOR
VIDEO OUT
GS-2800CC
VIDEO
1
DRIVER
1
+12V
2
VIDEO
3
NC
3
4
GND
DC
DRIVER
DAMP-
DAMP+
DRIVE+
DRIVE-
