- Page 1 CP-291 PC/HD to PC/HD Scaler Box Operation Manual CP-291...
- Page 2 TABLE OF CONTENTS 1. Introduction................2. Features..................3. Operation Controls and Functions.......... 3.1 Front Panel................3.2 Rear Panel................4. OSD Operation................5. Connection and Installation............. 6. Specifications................7. Supports Resolution..............
- Page 3 1.Introduction This Scaler Box is designed to upscale PC/HD input sources to PC/HD output of wide-range PC/HD resolutions; the resolution is up to WUXGA/1080p. This unit has a comprehensive OSD menu that allows user to select a variety of output resolutions and adjust for best picture quality.

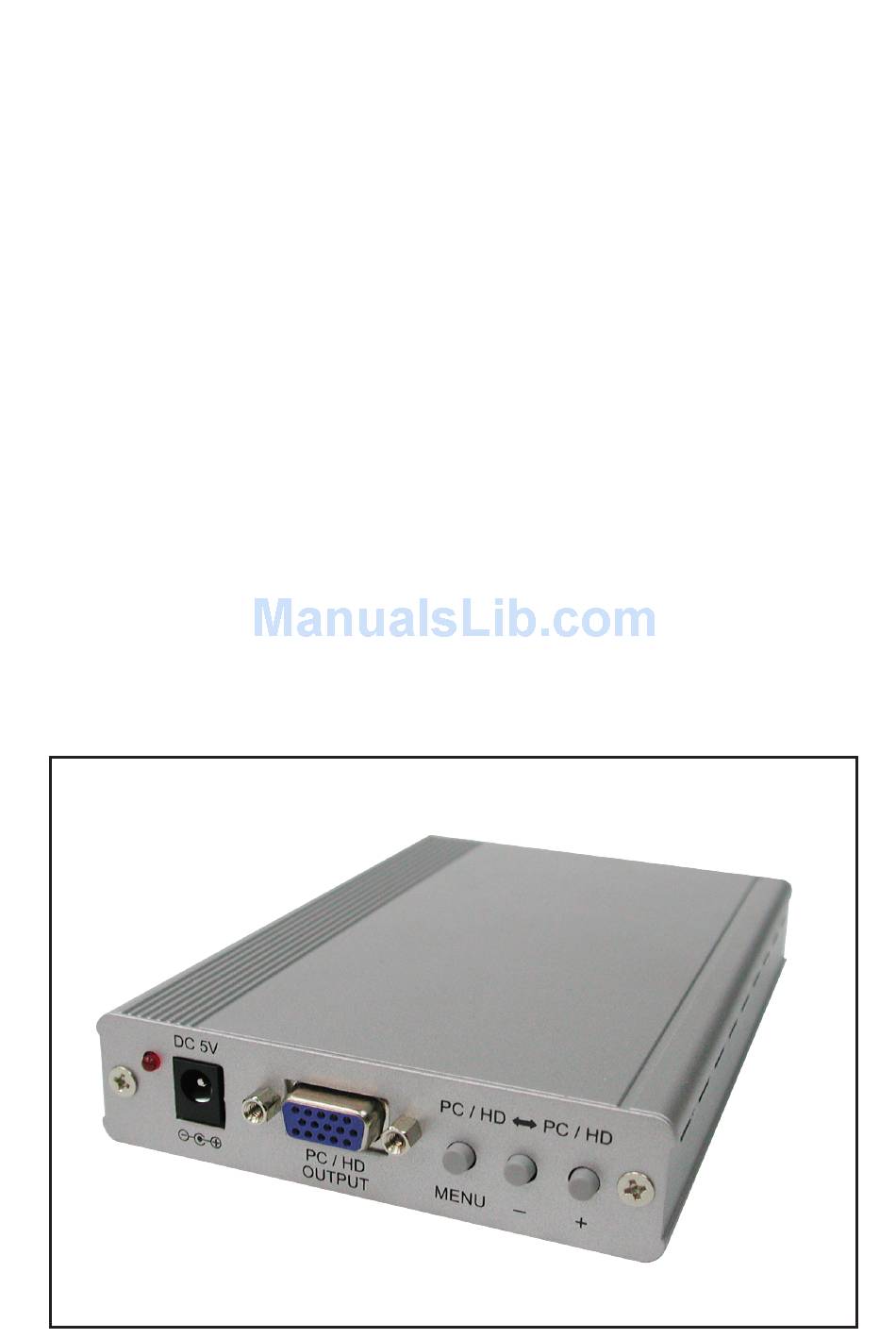

- Page 4 3. Operation Controls and Functions 3.1 Front Panel PC / HD PC / HD BYPASS ① PC/HD Bypass: Bypass the PC/HD input signal. ② Input: Connect the PC input D-Sub (15-pin) port to the D-Sub output port of your source equipment such like PC. 3.2 Rear Panel DC 5V PC / HD...
- Page 5 4. OSD Operation Adjustment Tier Option Tier Option CONTRAST 0 ~ 100 of Contrast Level BRIGHTNESS 0 ~ 100 of Brightness Level - HUE 0 ~ 100 of Hue Level - SATURATION 0 ~ 100 of Saturation Level FINETUNE - SHARPNESS 0 ~ 100 of Sharpness Level - EXIT Back to 1...
-
Page 6: Connection And Installation
5. Connection and Installation MONITOR LCD TV 6. Specifications Input Port 1 x PC Output Port 1 x PC Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 157(D) x 102(W) x 25(H) Weight(g) Chassis Material Aluminum Silkscreen Color Silver Operating Temperature 0°C ~ 40°C... - Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20080708 MPM-CP291...
