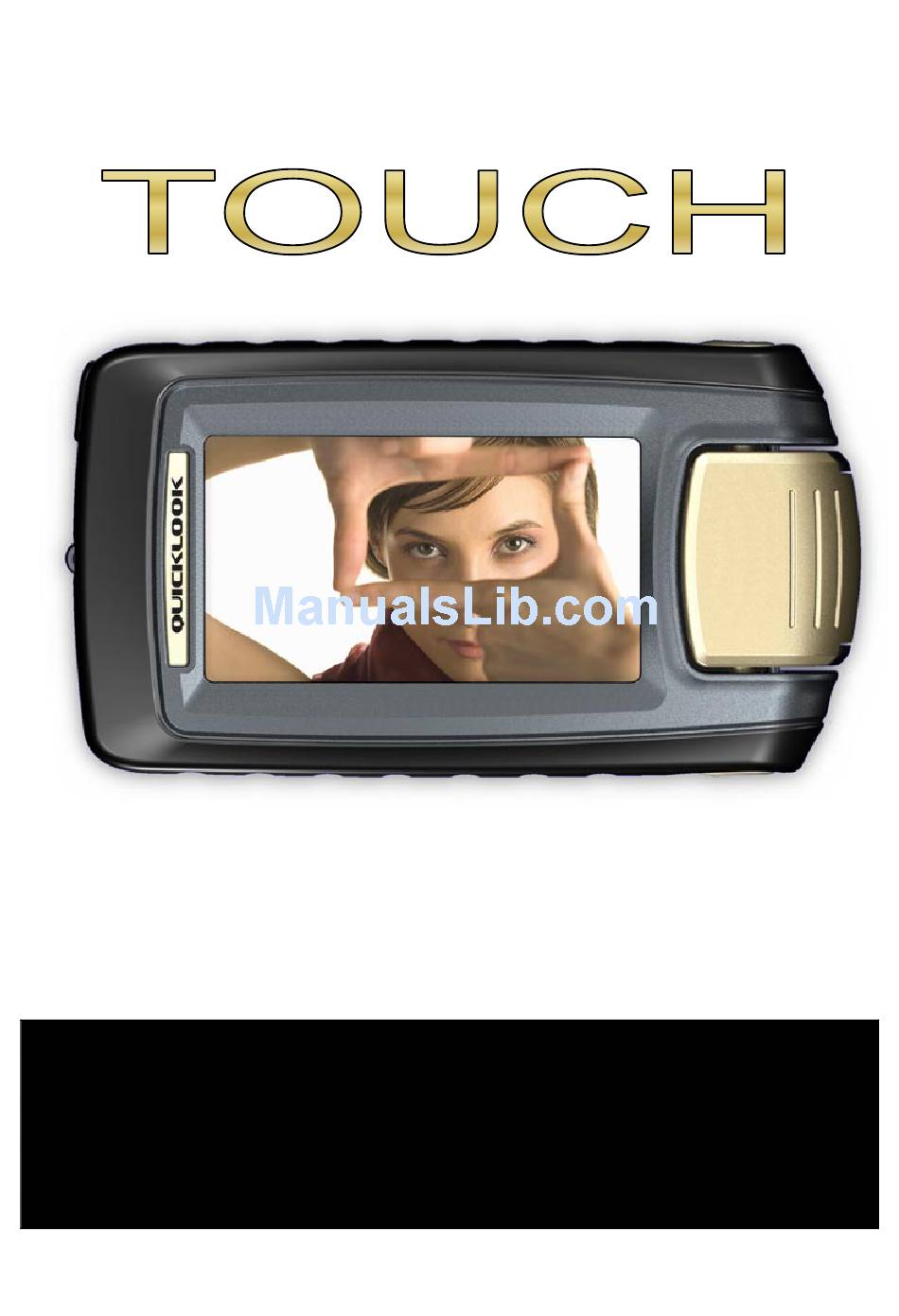

- Page 1 Q U I C K L O O K User Manual Please read the “Important Instructions for Use” overleaf...
- Page 2 • Use only the charger provided. Use another charger could result irreparable damage to Quicklook Touch and will void the warranty. • Quicklook Touch should be stored in the “off” position when not in use. • Do Quicklook Touch bathroom, near water or other damp conditions.
-
Page 3: Contents Of The Package
We recommend that you read this manual carefully to obtain the best service from your new product. Contents of the Package Quicklook Touch is supplied with the following items: o Main unit with integrated display, camera & battery... - Page 4 The light will go when battery substantially charged. It takes about three hours to charge the battery from a discharged state. Quicklook Touch can be used while the battery is being charged.
- Page 5 Mode button butto Zoom down Camera button Operation Pic of the mouse on the The Quicklook Touch is powered on by handwriting rotating camera either stand. operating positions. It is powered off by Pic of the mouse on the Maybe show the handwriting stand.
- Page 6 Touchscreen The Quicklook Touch is equipped with a touch sensitive screen. Tapping within specific areas of the screen will operate many of the unit’s features. Throughout this manual the “TS” symbol is used to indicate how a feature is operated using the touch screen.
- Page 7 The touchscreen can be disabled in the menu described later in this manual. Focussing The Quicklook Touch has a push-to-focus feature that must be used to obtain a sharp image. Simply point the camera at what you wish to view and briefly press the Focus/Freeze button and the unit will choose the best focus for you.
- Page 8 Touch differs from a magnifying glass in that image does correspond to the area directly beneath. Quicklook Touch can be operated and viewed from any orientation. Changing image mode Pressing the Mode button (refer to the diagram on page 5) on the side of the unit...
- Page 9 Inverted Enhanced reading mode with false colours reversed When using Quicklook Touch on different material, experiment with the different modes to see which helps you to see best. Note that all original colour is removed from the image in the enhanced modes.
- Page 10 function can be useful, for instance, when you wish to note a phone number and bring it to the phone for dialling. mode can be changed in a frozen image but the zoom buttons are disabled. Press and hold Zone 3 to frezze the image.
-
Page 11: Turning Off The Camera Lights
the picture. As you are writing you should see what you are doing on the Quicklook’s display. At the start, you may find that your handwriting varies in size from what you intended. You should spend some time practicing on a sheet of lined paper to familiarize yourself with... -
Page 12: Manual Focussing
Quicklook off and back on again. Manual Focussing It is possible to manually change the focus on the Quicklook Touch: simply power-on the unit while holding the Focus button and release when the image is displayed. In use, repeated pressing of the Focus... -
Page 13: Using The Menu
Using the Menu The Quicklook Touch has a menu system to allow you to customize it to suit your requirements. To bring up the menu, press and hold the Mode button for three seconds until an icon appears on the screen. - Page 14 Alternatively, tap Zones 2 & 4 to navigate and Zone 6 to accept. Press Focus/Freeze to cancel a choice and exit the menu. The Advanced menu contains options that are used only occasionally. Hold the Mode button in for 6 seconds to bring up this menu (ignore the icon that appears after 3 seconds –...
- Page 15 When operating in the menu, the use of Zoom-up can be replaced with tapping Zone 2. Similarly, Zone 4 for Zoom-down, Zone 6 for Mode and Zone 1 to access the advanced menu or to exit. The Colour Mode Menu: Backlight - Use the Zoom-up and Zoom-down buttons to adjust the brightness of the...
- Page 16 the contrast of the image. Saturation –This controls the richness of the colour in the image. Exit – Exit the menu. The Reading Mode Menu: Backlight - Use the Zoom-up Zoom-down buttons adjust the brightness of the display. Press Mode to accept the new setting.
- Page 17 Mode to accept your choice. Mode-button set-up: You can customise the Mode button so that only the reading modes you use are available. If you only require the black and white reading modes select the first icon; choosing the last icon will allow only the semi-colours;...
- Page 18 Auto-off –This option will turn the unit off automatically after 5 minutes of non-use. Touchscreen - Use this option to enable and disable the touchscreen. The Info screen will display the revision of the software within the unit. Factory Defaults – will return the unit to its original factory settings.
-
Page 19: Maintenance
Fitting the wrist strap Quicklook Touch supplied with optional wrist strap. To fit this, pass the thin loop of the strap through the hoop on the top of the unit. Pass the entire strap through the thin loop and pull tight. Maintenance Dirt and finger marks on the screen should be cleaned with the lens cleaning cloth... -
Page 20: Warranty
The battery is warranted for a period of one year. Cracks, scratches or similar damage to the display are specifically excluded from warranty. In no event shall Ash Technologies, or its agents, be liable for special, indirect, incidental or consequential damages; the original user's... -
Page 21: Specifications
As we strive to constantly improve our products, this information is subject to change without notice. DECLARATION OF CONFORMITY We, Ash Technologies Ltd., declare under our sole responsibility that this product,... - Page 22 © Ash Technologies Limited 2008 Ash Technologies Ltd. +353-45-88 22 12 B5, M7 Business Park, +353-45-88 22 14 Naas, Ireland. info@ashtech.ie Made in Ireland www.ashtech.ie Quicklook Touch User Manual EN Rev C...
