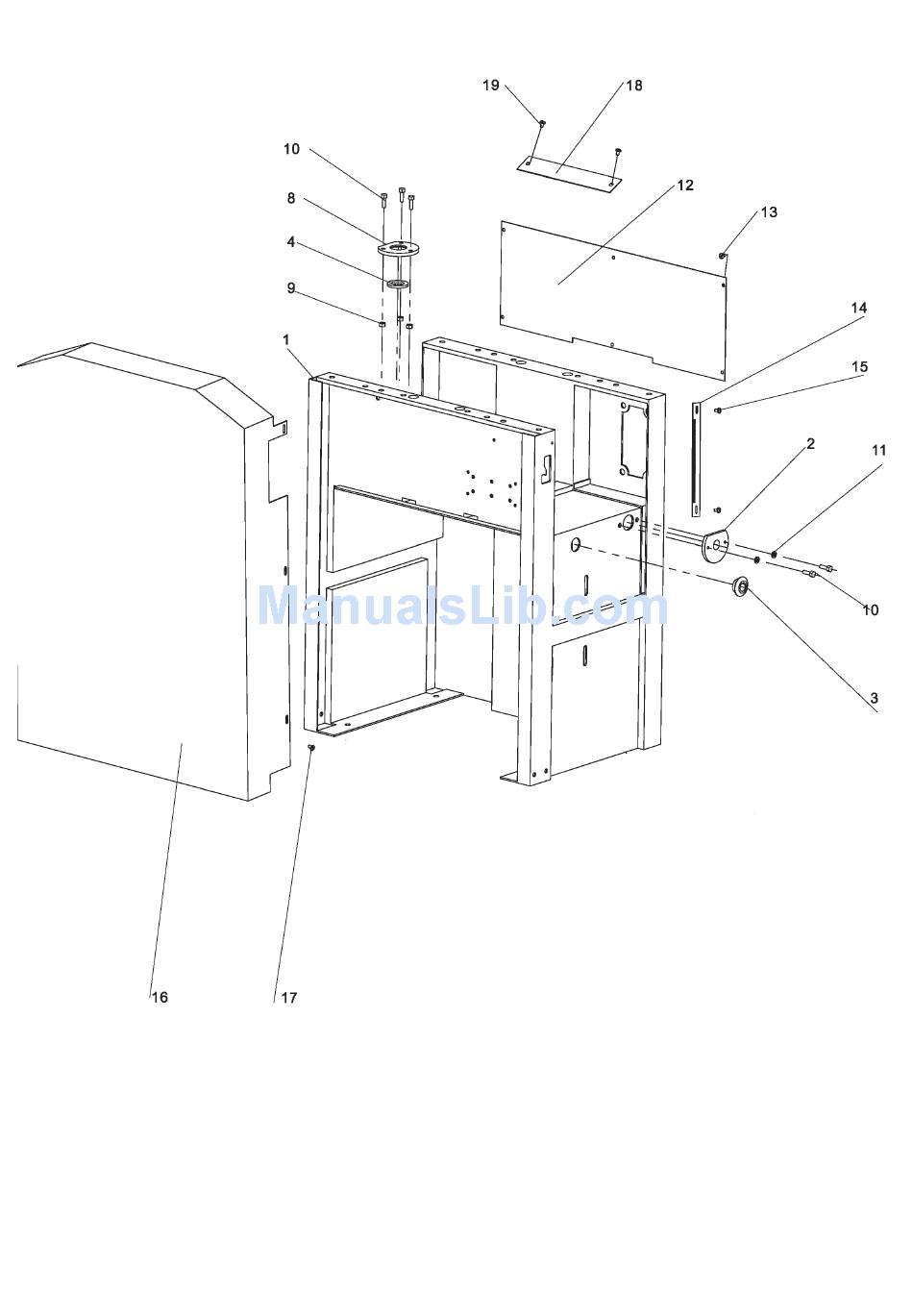

10. Parts List & Diagrams
NO. DESCRIPTION
1 Main frame
2 Shaft seat, thicknessing table 1
3 Seat, lock lever
4 Oil seal
8 Seat, bearing
9 Hex lock nut
10 Hex screw M6x16
11 Washer 6mm
Q'TY NO.
1 12
13
1 14
1 15
1 16
3 17
5 18
2 19
DESCRIPTION
Inner shield
Cross sunk head screw M5x6 5
Scale, thicknessing height
Pan head screw M5x6
Gear cover
Pan head screw M5x6
Cover plate
Pan head screw M5x8
Q'TY
1
1
5
1
6
2
4
23
