ISOFIX Anchor Points

WARNING
Use an anti-rotation device when
using the ISOFIX system. We
recommend the use of a top tether
or support leg.
Note: When you are purchasing an ISOFIX
seat, make sure that you know the correct
mass group and ISOFIX size class for the
intended seating locations. See Child Seat
Positioning (page 21).

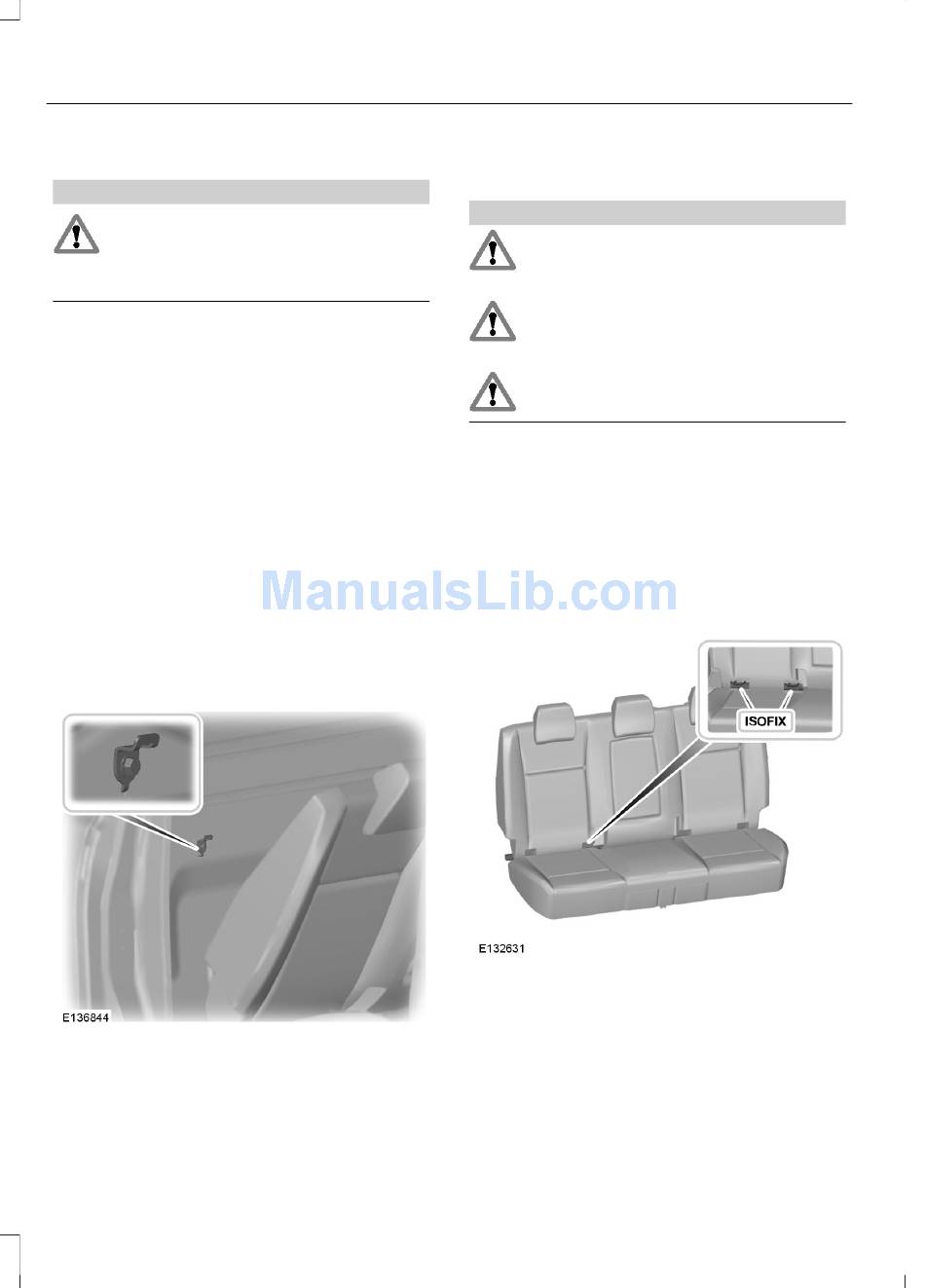

Your vehicle has ISOFIX anchor points that
accommodate universally approved
ISOFIX child seats.
The ISOFIX system comprises two rigid
attachment arms on the child seat that
attach to anchor points on the outboard
rear seats, where the cushion and backrest
meet. Tether anchor points are located in
the back panel trim for child seats with a
top tether.

Top Tether Anchor Points

Ranger (TKE) Vehicles Built From: 01-10-2014, DB39120609AD (CG3575en) enGBR, Edition date: 09/2014, First Printing
Child Safety
Attaching a Child Seat with Top
Tethers
Do not attach a tether strap to
anything other than the correct
tether anchor point.
Make sure that the top tether strap
is not slack or twisted and is properly
located on the anchor point.
make sure
Note: You may need to raise or remove the
head restraint to ease installation. See
Head Restraints (page 76).
1. Place the child seat on the back seat
cushion and fold the relevant seatback
forward. See Rear Seats (page 76).
2. Route the tether strap under the head
restraint to the anchor point.
3. Push the seatback to the upright
position.
4. Push the child seat back firmly to
engage the ISOFIX lower anchor points.
5. Tighten the tether strap in line with the
child seat manufacturer's instructions.
