INSTALLATION
AND
OPERATING
INSTRUCTIONS
Models:
HFW-1, 1D
HFW-23, -23D
HFW-12, -12D

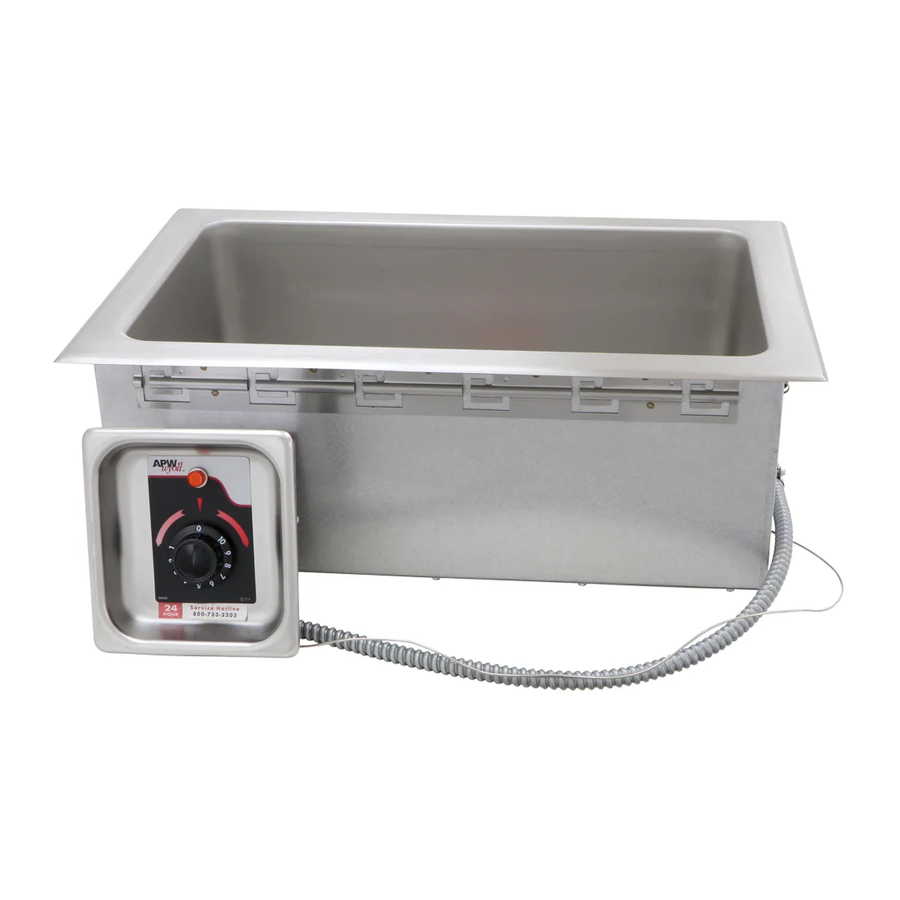

HOT FOOD WELLS TOP MOUNT, INSULATED
UNIT MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES
WARNING: Improper installation, adjustment, alteration, service or maintenance can
!
cause property damage, injury or death. Read the Installation, Operating and
Maintenance Instructions thoroughly before installing or servicing this equipment.
Initial heating of unit may generate smoke or fumes and must be done in a well ventilated area.
Overexposure to smoke or fumes may cause nausea or dizziness.
This equipment has been engineered to provide you with year-round dependable service when used
according to the instructions in this manual and standard commercial kitchen practices.
SANITATION
Phone:
+1 (214) 421-7366
Fax:
+1 (214) 565-0976
Toll Free: +1 (800) 527-2100
Website: www.apwwyott.com
E-mail:
info@apwwyott.com
R
INTENDED FOR OTHER THAN HOUSEHOLD USE
RETAIN THIS MANUAL FOR FUTURE REFERENCE
1
!
P/N 79967144 6/06
APW WYOTT
729 Third Avenue
Dallas, TX 75226
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for APW Wyott HFW-1
Summary of Contents for APW Wyott HFW-1
- Page 1 INSTALLATION OPERATING INSTRUCTIONS Models: HFW-1, 1D HFW-23, -23D HFW-12, -12D HOT FOOD WELLS TOP MOUNT, INSULATED INTENDED FOR OTHER THAN HOUSEHOLD USE RETAIN THIS MANUAL FOR FUTURE REFERENCE UNIT MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES WARNING: Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death.
-
Page 2: Table Of Contents
OWNER’S INFORMATION...2 General Installation...2 General Operating Instructions...2 Wet Set-Up (Units w/drains)... 2 Dry Set-Up (Units w.o./drains)... 2 General Cleaning Instructions... 3 General Installation: 1. Always clean equipment thoroughly before first use. (See general cleaning instructions.) 2. Check rating label for your model designation & electrical rating. 3. -
Page 3: General Cleaning Instructions
CONTROL CUTOUT: 5 3/4” W x 6 1/4” H (14.6 x 15.8) 15” 11 7/8” Outside (30.2) Length = O Inside Length = I I = 19 7/8” (HFW-1) 13” (HFW-23) 9 1/2” (HFW-12) SPECIFICATIONS Inside Dimensions 7 3/4” 9 7/8”... -
Page 4: Electrical Specifications
Models Description w/Drains Full Size HFW-1D 1 11/16” x 1 11/16” (HFW-1) (4.3 x 4.3) from back right corner HFW-23D 2/3 Size (HFW-23) 1/2 Size HFW-12D (HFW-12) ELECTRICAL SPECIFICATIONS Description Rating at 120VAC, 1PH HFW-1 1500 Watts, 12.5 Amps HFW-23 800 Watts, 6.7 Amps... -
Page 5: Parts Lists W/Exploded Views
HFW-1, 1D PARTS LIST & EXPLODED VIEW Item Description Pan & Wrapper W/Drain 56436 55304 Pan & Wrapper No Drain 56443 Side Insulation 56442 End Insulation 56506 Reflector Plate 56322 Element 120V-1500W Element 208/240V-1200/1600W Control 55441 Housing 56370 56529 Increase Decrease Plate... - Page 6 HFW-12, 12D PARTS LIST & EXPLODED VIEW Item Description 56409 Pan & Wrapper (W/Drain) 56459 Pan & Wrapper (No Drain) 56411 Side Insulation 56412 End Insulation 55990 Element Cover 55695 Element Clamp 55696 Anti-rotation Clamp 55960 Heating Element 120V-800W 56370 Control Housing 56529 Increase-decrease Plate...
- Page 7 HFW-23, 23D PARTS LIST & EXPLODED VIEW Item Description 56419 Pan & Wrapper (W/Drain) 56403 Pan & Wrapper (No Drain) 56411 Insulation 55990 Element Cover 55695 Element Clamp 55696 Anti-Rotation Clamp 55960 Heating Element 120V-800W 56370 Control Housing 56529 Increase-Decrease Plate (Cap-Bulb Thermostat Models Only) 56530 Indicator Light...
-
Page 8: Wiring Diagrams
HEATING ELEMENT HEATING ELEMENT HFW-12, HFW-12D, HFW-23, HFW-23D THERMOSTAT CONFIGURATION THERMOSTAT INDICATOR LIGHT WIRING DIAGRAMS HFW-1, HFW-1D ROBERT SHAW INDICATOR LIGHT THERMOSTAT INDICATOR LIGHT RANCO THERMOSTAT INFINITE CONTROL INDICATOR LIGHT HEATING ELEMENT HEATING ELEMENT HFW-23D P L1 L2 INFINITE CONTROL... - Page 9 IMPORTANT FOR FUTURE REFERENCE Please complete this information and retain this manual for the life of the equipment. For Warranty Service and/or Parts, this information is required. Model Number Serial Number Date Purchased Notes:...
- Page 10 Notes:...
-
Page 11: Warranty
APW Wyott's option or its Authorized Service Agency, it will be serviced on site or replaced. From day two through the conclusion of this warranty period, portable units must be taken to or sent prepaid to the APW Wyott Authorized Service Agency for in-warranty repairs. - Page 12 Phone: +1 (214) 421-7366 Fax: +1 (214) 565-0976 Toll Free: +1 (800) 527-2100 Website: www.apwwyott.com E-mail: info@apwwyott.com APW WYOTT 729 Third Avenue Dallas, TX 75226...
