APW Wyott HFWAT-2 Specifications

PRODUCT:

Designed Smart

• Heavy-duty Top mount insulated Rectangular Drop-In
Food Wells (multiwells) designed for direct installation in
metal or wood countertops by plugging directly into an
existing outlet.
• Hot Food Wells are designed to accommodate standard
size steamtable pans.
• Control box is mounted directly to bottom of unit.
• Well is constructed of deep-drawn 20 ga. Type 304
stainless steel, above countertop with 20 ga. aluminized
outer housing with sides and bottom fully insulated.
• Units shipped with drain are provided with stainless steel
1/2" NPT drain welded to bottom of pan provided with
removable screen.
• Unit is heated by a tubular heating element and designed
in a "W-shape" for even heat distribution to pan base.
• Element is mounted under well and secured by aluminized
deflector shield for maximum efficiency.

Built Solid

• 20 ga. Deep-drawn Type 304 stainless steel well pans.
• Stainless steel drain coupling.
• Compact housing—overall depth 8-11/16" and 11
1/2" in non-control area and 12 7/10" in the attached
control area.
• Simplified construction reduces installation time and
significantly reduces on-site electrical and plumbing
costs.
• Unitized electrical wiring for single power hookup.
Reliability backed by APW Wyott's Warranty
• Backed by a 1 year parts & labor warranty.
• Certified by the following agencies:
APW Wyott Foodservice Equipment Company · 729 Third Ave., Dallas, TX 75226
(800) 527-2100 · (214) 421-7366 · Fax (214) 565-0976 · www.apwwyott.com· info@apwwyott.com

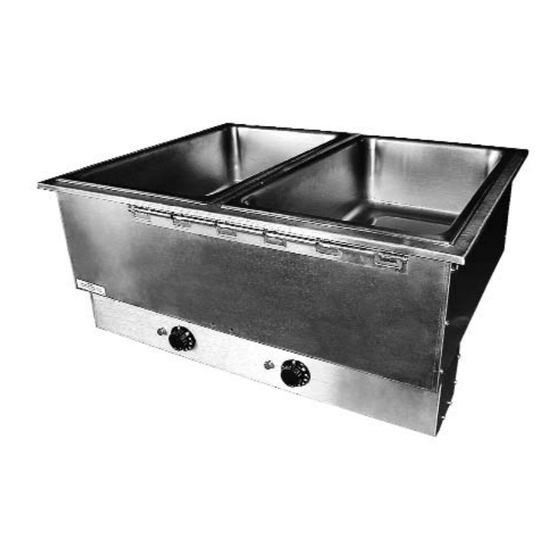

Top Mount Hot Food Wells
Models: HFWAT-2 HFWAT-3
QUANTITY:
w/ Attached Controls
HFWAT-4 HFWAT-5 HFWAT-6 ("D" after model # designates drain)
ITEM #:
Top Mount Hot Food Well w/ Attached Controls

APW Wyott Design Features

• Unit standard with APW Wyott E-Z Locks on all
four exterior sides for easy installation.
• The units feature complete UL construction including
attached control box on bottom of bottom enclosure.
• Easy access to heating elements.
• Large indicating pilot light.
• Individual Thermostatic Controls
• Electric cord and plug for easy installation

Options

• Without Drain (No letter after model # designates
no drain)
• With Drain ("D" after model # designates drain)
• Factory assembled 3/4 manifold drains (screens
provided)
• Lever operated drain valve (56360)
See reverse side for product specifications.
Rev. 5/22/2005
