APW Wyott HFW-1 Specifications

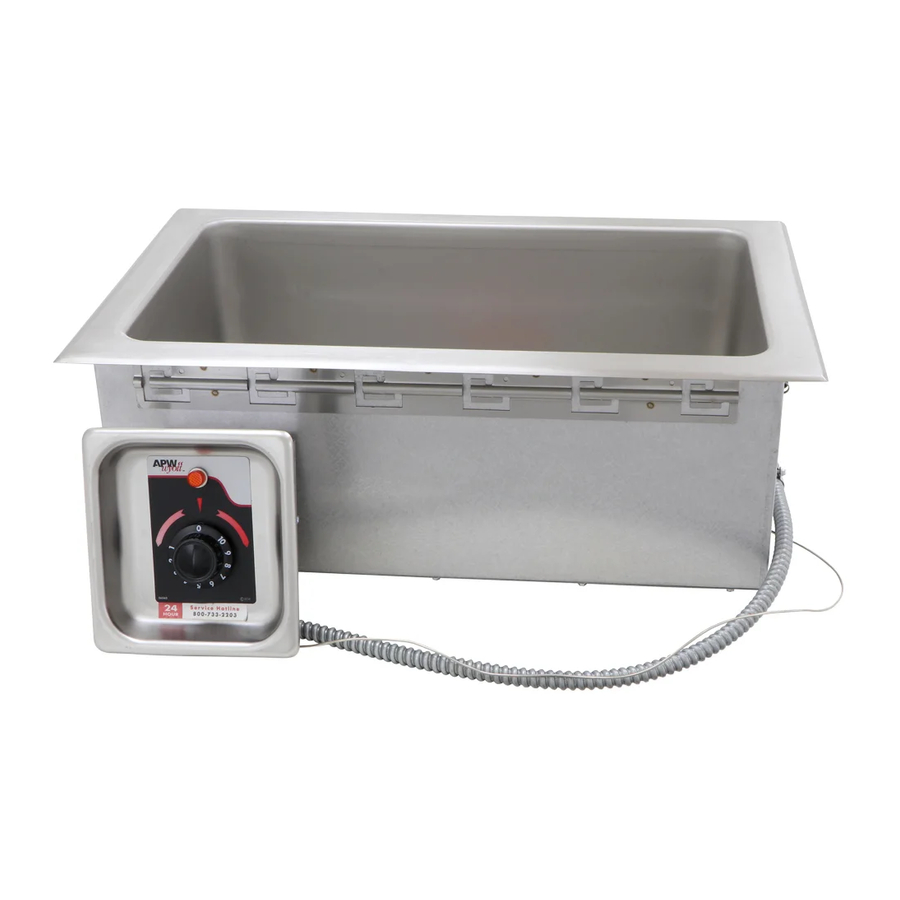

Heavy-duty Top mount insulated Rectangular Drop-In
Food Well designed for installation in metal or wood
countertops if optional wood mounting kit is provided.
Hot Food Well is designed to accommodate standard size
steamtable pans.
Well is constructed of deep-drawn 20 ga. Type 304
stainless steel, with 20 ga. aluminized outer housing with
sides and bottom fully insulated. Units shipped with drain
are provided with stainless steel 1/2" NPT drain welded
to bottom of pan provided with removable screen. Unit is
heated by a tubular heating element shaped in serpentine
fashion for even heat distribution to pan base.
Element is mounted under well and secured by
aluminized deflector shield for maximum efficiency. Unit
standard with APW Wyott E-Z Locks on all four exterior
sides for easy installation.
The units feature complete UL construction including
electrical conduit, bezel and control box.
• 20 g. deep-drawn Type 304 stainless steel well pans.
• Units may be used WET or DRY. (Wet use offers best
results).
• Easy access to heating elements.
• Thermostatic control with 36" capillary
(effective length 26")
• Compact housing – overall depth 8-5/16".
• Large indicating pilot light.
HFW-1 HFW-1D HFW-23
("D" after model #)
HFW-1 available in "military version" (56319) for
shipboard use.
HFW-23D HFW-12 HFW-12D
Rev. 1/1/2003
