smart-e SLX-TX16 SmartLynx User Manual

Long range transmitter system
Hide thumbs
Table of Contents

Advertisement

Quick Links

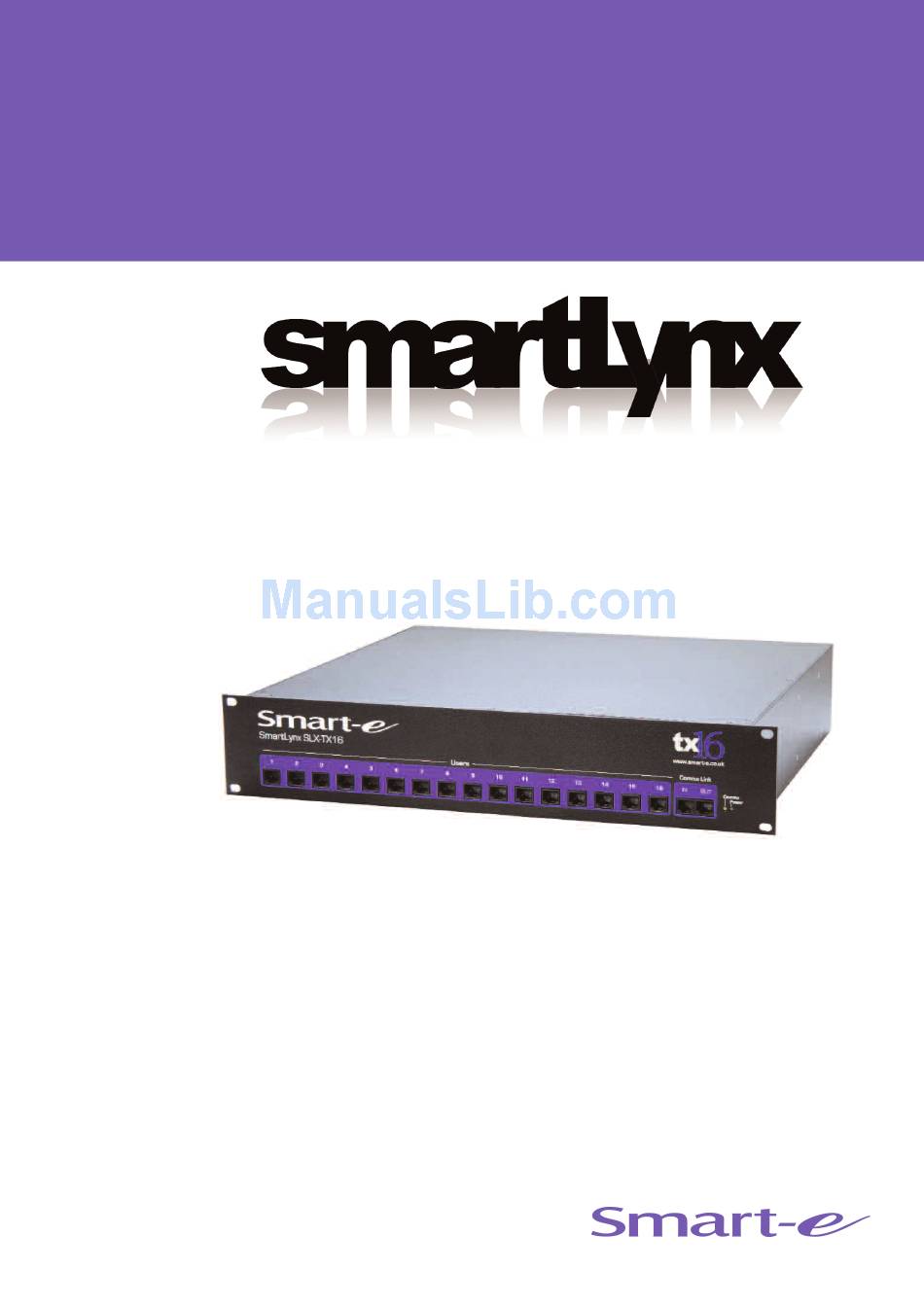

SLX-TX16
long range transmitter system
user guide
for more information visit our website, or talk to one of our technical team
tel: +44 (0) 1306 628264, www.smart-e.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLX-TX16 SmartLynx and is the answer not in the manual?

Questions and answers

Related Manuals for smart-e SLX-TX16 SmartLynx

Summary of Contents for smart-e SLX-TX16 SmartLynx

  • Page 1 SLX-TX16 long range transmitter system user guide for more information visit our website, or talk to one of our technical team tel: +44 (0) 1306 628264, www.smart-e.co.uk...
  • Page 2 Smart-e will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.

  • Page 3: Table Of Contents

    Table of Contents Introducing SmartLynx What ‘s in the box ..................1 What is SmartLynx ..................2 Why is SmartLynx necessary ..............2 How does SmartLynx work ................. 2 Installation and Operation Rack Mounted Transmitter ................ 3 Receiver Options ....................8-9 Appendix Specifications .....................

  • Page 4: Introducing Smartlynx

    Introducing SmartLynx Cat5 AV Extender What‘s in the box? Thank you for buying the Smart-e SmartLynx Rack Mountable Cat5 AV Extender. Depending on the configuration of your system various quantities of the parts below may be included in your shipment.

  • Page 5: What Is Smartlynx

    SDTV, SVGA (800x600) How does SmartLynx work? The Smart-e SmartLynx systems are transmitter and receiver pairs designed to extend video, stereo audio and IR/RS232 signals over (UTP) unshielded twisted pair category 5 (Cat5) cabling. They are supplied with a UK power supply and consist of: a transmitter with a video input (connectors vary by model), an audio input and a Cat5 output and;...

  • Page 6: Installation And Operation

    Installation and Operation 1. Preparing for installation Start installation process by ensuring that all video displays and audio devices are compatible with the computers being used. This is accomplished by connecting the devices directly to the computer and checking that the devices operate as desired without the SmartLynx system.
  • Page 7 Installation and Operation 2. Connect Transmitter to the signal sources Connect the video output of the source device to the input of the transmitter using the relevant interface cable if relevant. Connect the audio output of the source device to the audio input of the transmitter using the appropriate cable.
  • Page 8 Installation and Operation 3. Setting Jumpers on Transmitter to correct position The diagram below details how to correctly set the jumpers for the required video type (VGA or RGBS), for VGA the jumper should be in the top position for RGBS it should be at the bottom.
  • Page 9 Installation and Operation 4. Connecting the IR Blaster unit (optional) Using the IR Blaster control cable, attach one end into the IR control port on the rear of the SLX-TX16 and the other end to the rear of the 1U Blaster unit. Then plug the IR emitter LED into the relevant 3.5mm jack socket on the front of the Blaster unit and position the LED at the device to be controlled.
  • Page 10 Installation and Operation 5. System Power up Turn the system on by plugging in the power adapter to the SmartLynx if they are not yet connected (See diagram opposite). Power up your computer. Observe both transmitter and receiver power LED are ON, and source device is switched on.

  • Page 11: Receiver Options

    Receiver Options 7. Smartlynx Receiver Options There are a number of different receiver options available to accompany the SLX-TX16, please check the model number and relevant page number reference below. SLX-RX100 UXGA, RGsB, YPrPb, Y/C, CVBS and Stereo Audio For Instructions on Installation of the SLX-RX1:: see page…………………………………………..1: SLX-RX111 UXGA, RGBS, RGsB, YPrPb, Y/C, CVBS, Stereo Audio and RS232 or Infra-Red control option.
  • Page 12 Receiver Options SLX-RX212/D Dual Screen Output, UXGA, RGsB, YPrPb, Y/C, CVBS and Stereo Audio, with RS232 or Infra-Red control option. SLX-RX212D can be cascaded. For Instructions on Installation of the SLX-RX212 see page………………………………………………24...
  • Page 13 The SLX-RX100 allows for the reception of UXGA, RGsB, YPrPb, YUV, Y/C, CVBS and stereo audio, when broadcasted along a single Cat5 UTP cable from a Smart-e transmitter or matrix. The unit then distributes the received signal to a display via a...
  • Page 14 Installation and Operation—SLX-RX100 1. Connecting SLX-RX100 to the display device Making sure that the Cat 5 cable is connected to the SLX-TX16 output, connect the cable to the RJ45 socket on the receiver unit. If the cable connection is correct the power LED on the front of the receiver should illuminate (power is sent up the Cat 5 cable).
  • Page 15 Installation and Operation—SLX-RX100 2. Setting the cable length dials The Receiver unit is preset for approximately 50m which is sufficiently accurate for most applications. However if the image does not look sharp enough then follow the instructions below Whilst looking at an image on the display, preferably a long horizontal bar, adjust the CABLE COMPENSATION dial.
  • Page 16 Installation and Operation—SLX-RX100 3. Sync Processing For VGA applications the Transmitter adds the Horizontal and Vertical Sync Pulses to the Blue and Red channels. However, since the unit has been designed for use with other types of video the Receiver provides the ability to pass both the Red and Blue channels transparently or process them to remove the Sync Pulses.
  • Page 17 RGsB, RGBS, YPrPb, YUV and Long Range reception of Y/C, CVBS, Stereo Audio, and Infra-Red or RS232 control signals, when broadcasted along a single Cat5 UTP cable from a Smart-e transmitter or matrix. The signals are received along the Cat5 from the transmitter and then distributed to the display and control equipment via the appropriate connection and to speakers via a 3.5 mm mini jack.
  • Page 18 Installation and Operation—SLX-RX111 1. Connecting SLX-RX111 to the display device Making sure that the Cat 5 cable is connected to the SLX-TX16 output, connect the cable to the RJ45 socket on the receiver unit. If the cable connection is correct the power LED on the front of the receiver should illuminate (power is sent up the Cat 5 cable).
  • Page 19 Installation and Operation—SLX-RX111 2. Connecting SLX-RX111 to audio and Infra-Red control Connect the speakers or audio input on the display to the audio output on the receiver, using a 3.5mm jack plug. If using the receiver to transmit Infra-Red signals back down the cable to the transmitter unit then connect an ‘eye’...
  • Page 20 Installation and Operation—SLX-RX111 3. Mounting the Receiver The receiver unit can compensate for cable losses over a length of 20-100m, and for mounting purposes the unit is provided with two ’mounting-hole’ points for fixing to the wall or screen (See diagram below). Simply hold receiver in place, mark position of holes and set screws in these locations.
  • Page 21 RGsB, RGBS, YPrPb, YUV, Y/C, CVBS, Stereo Audio, and Infra- Red or RS232 control signals when broadcasted along a single Cat5 UTP cable from a Smart-e transmitter or matrix. The signals are received along the Cat5 from the transmitter and then distributed to the display and control equipment via the appropriate connection and to speakers via a 3.5 mm mini...
  • Page 22 Installation and Operation—SLX-RX211 1. Connecting SLX-RX211 to the display device Making sure that the Cat 5 cable is connected to the SLX-TX16 output, connect the cable to the RJ45 socket on the receiver unit. If the cable connection is correct the power LED on the front of the receiver should illuminate (power is sent up the Cat 5 cable).
  • Page 23 Installation and Operation—SLX-RX211 2. Connecting SLX-RX211 to audio and Infra-Red control Connect the speakers or audio input on the display to the audio output on the receiver, using a 3.5mm jack plug. If using the receiver to transmit Infra-Red signals back down the cable to the transmitter unit then connect an ‘eye’...
  • Page 24 Installation and Operation—SLX-RX211 3. Adjusting Cable Compensation (Equalization) and Contrast Control To adjust equalization the ‘pot’ labelled as Cable Compensation may be rotated clockwise: start by turning the ’pot’ completely ANTI-clockwise and then slowly turn clockwise until equalization is correct. As cable length increases the ’pot’...
  • Page 25 Installation and Operation—SLX-RX211 Incorrect Skew adjustment. In this example the Red signal is most delayed and the Green signal the least delayed. Correct Skew adjustment. In this example colours are in alignment and hence correctly equalized.
  • Page 26 Installation and Operation—SLX-RX211 5. Mounting the Receiver The receiver unit can compensate for cable losses over a length of 20-100m, and for mounting purposes the unit is provided with two ’mounting-hole’ points for fixing to the wall or screen (See diagram below). Simply hold receiver in place, mark position of holes and set screws in these locations.
  • Page 27 RGsB, YPrPb, YUV, Y/C, CVBS, Stereo Audio, and Infra-Red or RS232 control signals when broadcasted along a single Cat5 UTP cable from a Smart-e transmitter or matrix. The signals are received along the Cat5 from the transmitter and then distributed as a Dual-Screen output to the displays and control equipment via the appropriate connections, and to speakers via a 3.5 mm mini jack.
  • Page 28 Installation and Operation—SLX-RX212/D 1. Connecting SLX-RX212 to the display device Making sure that the Cat 5 cable is connected to the transmitter output, connect the cable to the RJ45 socket on the receiver unit. If the cable connection is correct the power LED on the front of the receiver should illuminate (power is sent up the Cat 5 cable).
  • Page 29 Installation and Operation—SLX-RX212/D 2. Connecting SLX-RX212 to audio and Infra-Red control Connect the speakers or audio inputs on the displays to the audio outputs on the receiver, using 3.5mm jack plugs. If using the receiver to transmit Infra-Red signals back down the cable to the transmitter unit then connect an ‘eye’...
  • Page 30 Installation and Operation—SLX-RX212/D 3. Adjusting Equalisation and Contrast To adjust equalization the ‘pot’ labelled as EQ may be rotated clockwise: start by turning the ’pot’ completely ANTI-clockwise and then slowly turn clockwise until equalization is correct. As cable length increases the ’pot’...
  • Page 31 Installation and Operation—SLX-RX212/D Incorrect Skew adjustment. In this example the Green is under equalized and the slightly over equalized. Correct Skew adjustment. In this example colours are in alignment and hence correctly equalized.
  • Page 32 Installation and Operation—SLX-RX212/D 5. Setting the jumpers on the Receiver On the SLX-RX212 you are able to select the format of video outputted by the HD15s by altering the jumpers on the base of the unit shown in the diagram below.
  • Page 33 Installation and Operation—SLX-RX212D 6. How to Cascade the SLX-RX212D As well as having all the functions of the regular SLX-RX212, the SXL- RX212D also has the ability to be cascaded for up to 5 units. In order to cascade the SLX-RX212Ds Cat5 cable should be used to join together the supplementary units, with the Cat5 output on the first unit to be joined to the Cat5 input on the second unit, etc.
  • Page 34 Installation and Operation—SLX-RX212/D 7. Mounting the Receiver The receiver unit can compensate for cable losses over a length of 20-100m, and for mounting purposes the unit is provided with two ’mounting-hole’ points for fixing to the wall or screen (See diagram below). Simply hold receiver in place, mark position of holes and set screws in these locations.

  • Page 35: Appendix Specifications

    Technical Information SLX-TX16 Video Input Signal Type - Connector………….. UXGA/RGBS/YUV/YPbPr/YC/CVBS - HD15 Bandwidth………………………………….. 400MHz Impedance…………………………………. 75 Ohm Audio Input Signal Type…………………………………. Stereo Audio Bandwidth………………………………….. 20kHz, 0dB Impedance…………………………………. 10k Ohm Connector………………………………….. 3.5mm mini-jack, Female Local Audio Output if app. Signal Type…………………………………. Stereo Audio Bandwidth…………………………………..
  • Page 36 Technical Information SLX-RX100 Video Input Signal Type - Connector………….. UXGA/YUV/YPbPr/YC/CVBS - RJ45 Bandwidth………………………………….. 400MHz Impedance…………………………………. 75 Ohm Audio Input Signal Type…………………………………. Stereo Audio Bandwidth………………………………….. 20kHz, 0dB Impedance…………………………………. 10k Ohm Connector………………………………….. RJ45 Video Output Signal Type - Connector………….. UXGA/YUV/YPbPr/YC/CVBS - HD15 Bandwidth…………………………………..
  • Page 37 Technical Information SLX-RX111 Video Input Signal Type - Connector………….. UXGA/RGBS/YUV/YPbPr/YC/CVBS - RJ45 Bandwidth………………………………….. 400MHz Impedance…………………………………. 75 Ohm Audio Input Signal Type…………………………………. Stereo Audio Bandwidth………………………………….. 20kHz, 0dB Impedance…………………………………. 10k Ohm Connector………………………………….. RJ45 Video Output Signal Type - Connector………….. UXGA-HD15 / RGBS / YUV-3xRCA / YC-4pin minidin / CVBS Bandwidth…………………………………..
  • Page 38 Technical Information SLX-RX211 Video Input Signal Type - Connector………….. UXGA/RGBS/YUV/YPbPr/YC/CVBS - RJ45 Bandwidth………………………………….. 400MHz Impedance…………………………………. 75 Ohm Audio Input Signal Type…………………………………. Stereo Audio Bandwidth………………………………….. 20kHz, 0dB Impedance…………………………………. 10k Ohm Connector………………………………….. RJ45 Video Output Signal Type - Connector………….. UXGA-HD15 / RGBS / YUV-3xRCA / YC-4pin minidin / CVBS Bandwidth…………………………………..
  • Page 39 Technical Information SLX-RX212/D Video Input Signal Type - Connector………….. UXGA/YUV/YPbPr/YC/CVBS - RJ45 Bandwidth………………………………….. 400MHz Impedance…………………………………. 75 Ohm Audio Input Signal Type…………………………………. Stereo Audio Bandwidth………………………………….. 20kHz, 0dB Impedance…………………………………. 10k Ohm Connector………………………………….. RJ45 Video Output Signal Type - Connector………….. UXGA/YUV/YPbPr/YC/CVBS - 2 x HD15 (+RJ45 on SLX-RX212D) Bandwidth…………………………………..

  • Page 40: Troubleshooting

    Troubleshooting No video? Are the green LEDs on both the transmitter and receiver units? If not check that the 24V power supply (PSU) is connected and the LED on the PSU is lit. Check the cable compensation dials on the underside of the unit. Over compensation of the Red and Blue channels can cause the display to misinterpret the sync pulses and not display an image.

  • Page 41: Limited Warranty Statement

    Customer is responsible for maintaining proof of date of purchase. Smart-e warranty covers only those defects which arise as a result of normal use of the product, and do not apply to any: a. Improper or inadequate maintenance or modifications b.

  • Page 42: Partial Product List

    Partial Product List Product Range Product Code Description SmartLynx - X SLX-100 Transmitter and Receiver Pair SLX-400 Transmitter and Receiver Pair SmartLynx-X + SLX-111 Transmitter and Receiver Pair with RS232/IR SLX-211 Transmitter and Receiver Pair with RS232/IR SLX-212 Dual Transmitter and Receiver Pair with RS232/IR SmartCast - X SCX-TX600 One to Six Transmitter Unit...
