smart-e SNX-2112 User Manual

Smartnet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

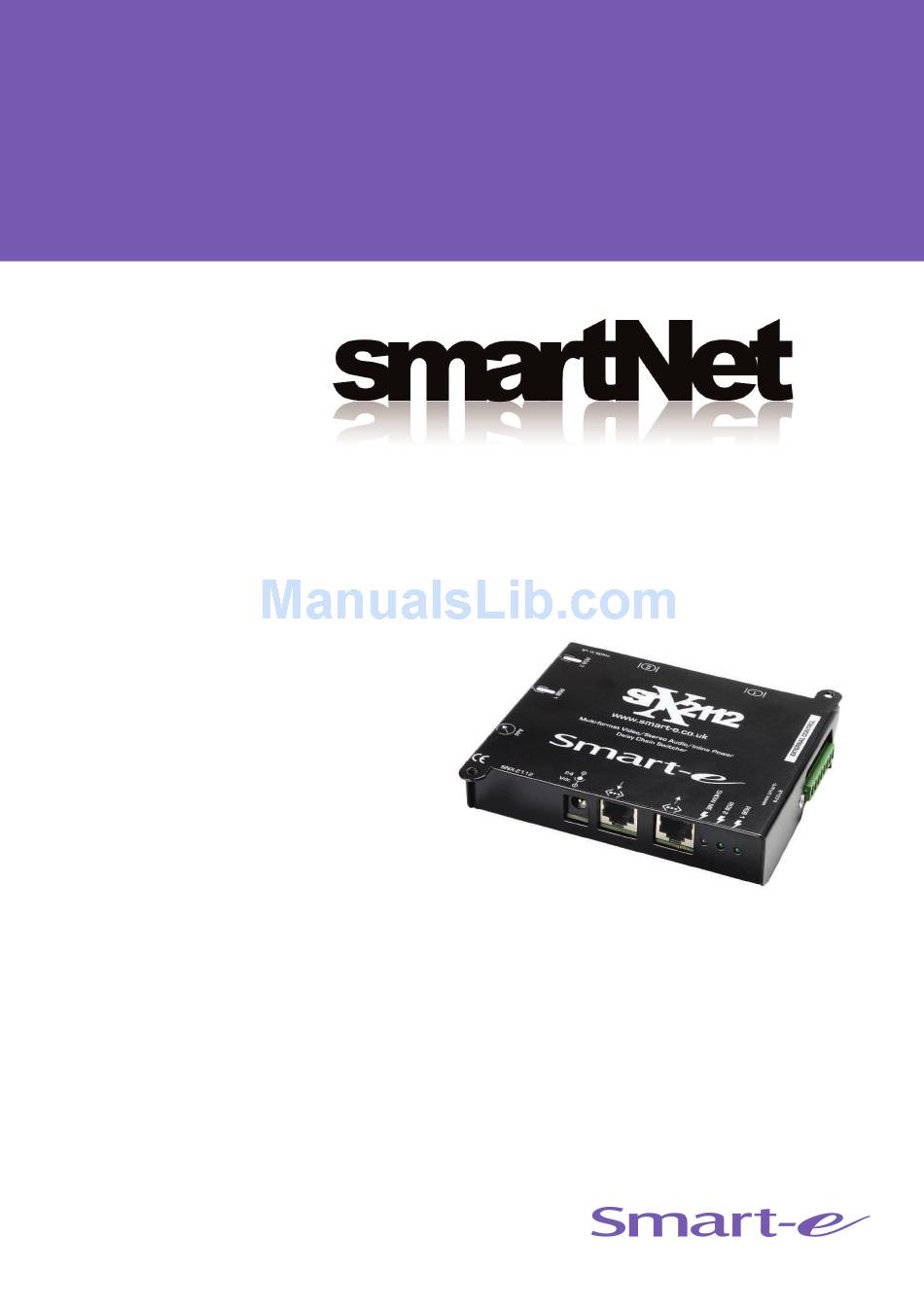

SNX-2112
multipoint to point daisy-chained transmitter
user guide
also available: SNX-2114 transmitter
for more information visit our website, or talk to one of our technical team
tel: +44 (0) 1306 628264, www.smart-e.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SNX-2112 and is the answer not in the manual?

Questions and answers

Related Manuals for smart-e SNX-2112

Summary of Contents for smart-e SNX-2112

  • Page 1 SNX-2112 multipoint to point daisy-chained transmitter user guide also available: SNX-2114 transmitter for more information visit our website, or talk to one of our technical team tel: +44 (0) 1306 628264, www.smart-e.co.uk...
  • Page 2 Smart-e will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.

  • Page 3: Table Of Contents

    Table of Contents Introducing SmartNet What ‘s in the box ..................1 What is SmartNet................... 2 Why is SmartNet necessary ..............2 How does SmartNet work ................2 Installation and Operation Transmitter ......................3 Receiver Options ....................11-29 Appendix Specifications ..................... 30 Troubleshooting ....................

  • Page 4: What's In The Box

    Introducing SmartLynx Cat5 AV Extender What‘s in the box? Thank you for buying the Smart-e SmartNet Cat5 AV Switch & Extender. Depending on the configuration of your system various quantities of the parts below may be included in your shipment.

  • Page 5: What Is Smartnet

    SDTV, SVGA (800x600) How does SmartNet work? The Smart-e SmartNet systems are switch/transmitter and receiver pairs designed to extend video, stereo audio and IR/RS232 signals over (UTP & STP) unshielded & shielded twisted pair category 5 (Cat5) cabling. They are...

  • Page 6: Installation And Operation

    Installation and Operation 1. Preparing for installation Start installation process by ensuring that all video displays and audio devices are compatible with the computers being used. This is accomplished by connecting the devices directly to the computer and checking that the devices operate as desired without the SmartNet system.
  • Page 7 VGA cable. Connect the RGB or YPrPb video output of the source device to the second HD15 input on the transmitter, using a Smart-e interface cable if necessary. For One High Definition + Two Standard Definition Sources Connect the RGB video output of the source device to the first HD15 input on the transmitter using a standard VGA cable.
  • Page 8 IR LED upon or near the IR window on the device to be controlled. If using an RS232 control panel, connect the panel to the relevant 3.5mm minijack socket, using a Smart-e Interface cable if necessary.
  • Page 9 Cat5 In on the following unit, for up to 32 units. The supplied Cat5 Power Injector should be connected between either the SNX-2114 and first SNX-2112 or, between the final SNX- 2112 and the Smart-e receiver unit. (see diagram below).
  • Page 10 Installation and Operation 5. Configuring the Video Processing. On the base of the unit are four switches, these are to be used to configure the way in which the unit handles video sources. The switches functionality are as follows: If more than 16 units are used then the Hex Switch (see following page) is unable to address them.
  • Page 11 Installation and Operation 6. Allocating unique identifications to the SNX-2112s. Using the Hex Switch on the side of the units (see diagram below), you can provide a unique address to each unit for control purposes. The Hex Switch has 16 unique addresses, A-F and 0-9, please ensure that each of the units cascaded are given a different address.
  • Page 12 Installation and Operation 7. Selecting Relevant Sources and Using ‘Show Me’ Button On the base of the unit, there is a button labelled ‘Input Selection’. By pressing this button the unit will cycle through the inputs in succession. Green LEDs on the side of the unit alight corresponding to the active input, simply continue to press the button until the correct LED and Video source are selected (For RGB 2 both the Y/C &...
  • Page 13 Installation and Operation 8. System Power up Turn the system on by plugging in the power adapter to the SmartLynx if they are not yet connected (See diagram opposite). Power up your computer. Observe both transmitter and receiver power LED are ON, and source device is switched on.

  • Page 14: Receiver Options

    Receiver Options 10. Smartlynx Receiver Options There are a number of different receiver options available to accompany the SLX-TX16, please check the model number and relevant page number reference below. SLX-RX111 UXGA, RGBS, RGsB, YPrPb, Y/C, CVBS, Stereo Audio and RS232 or Infra-Red control option. For Instructions on Installation of the SLX-RX111 see page………………………………………………12 SLX-RX211 Same as SLX-RX111 but with greater range and...
  • Page 15 Installation and Operation—SLX-RX111 SLX-RX111 The SLX-RX111 allows for the Short Range reception of UXGA, RGsB, RGBS, YPrPb, YUV and Long Range reception of Y/C, CVBS, Stereo Audio, and Infra-Red or RS232 control signals, when broadcasted along a single Cat5 UTP cable from a Smart -e transmitter or matrix.
  • Page 16 Installation and Operation—SLX-RX111 1. Connecting SLX-RX111 to the display device Making sure that the Cat 5 cable is connected to the transmitter output, connect the cable to the RJ45 socket on the receiver unit. If the cable connection is correct the power LED on the front of the receiver should illuminate (power is sent up the Cat 5 cable).
  • Page 17 Installation and Operation—SLX-RX111 2. Connecting SLX-RX111 to audio and Infra-Red control Connect the speakers or audio input on the display to the audio output on the receiver, using a 3.5mm jack plug. If using the receiver to transmit Infra-Red signals back down the cable to the transmitter unit then connect an ‘eye’...
  • Page 18 Installation and Operation—SLX-RX111 Mounting the Receiver The receiver unit can compensate for cable losses over a length of 20-100m, and for mounting purposes the unit is provided with two ’mounting-hole’ points for fixing to the wall or screen (See diagram below). Simply hold receiver in place, mark position of holes and set screws in these locations.
  • Page 19 RGsB, RGBS, YPrPb, YUV, Y/C, CVBS, Stereo Audio, and Infra- Red or RS232 control signals when broadcasted along a single Cat5 UTP cable from a Smart-e transmitter or matrix. The signals are received along the Cat5 from the transmitter and then distributed to the display and control equipment via the appropriate connection and to speakers via a 3.5 mm mini...
  • Page 20 Installation and Operation—SLX-RX211 1. Connecting SLX-RX211 to the display device Making sure that the Cat 5 cable is connected to the transmitter output, connect the cable to the RJ45 socket on the receiver unit. If the cable connection is correct the power LED on the front of the receiver should illuminate (power is sent up the Cat 5 cable).
  • Page 21 Installation and Operation—SLX-RX211 2. Connecting SLX-RX211 to audio and Infra-Red control Connect the speakers or audio input on the display to the audio output on the receiver, using a 3.5mm jack plug. If using the receiver to transmit Infra-Red signals back down the cable to the transmitter unit then connect an ‘eye’...
  • Page 22 Installation and Operation—SLX-RX211 3. Adjusting Equalisation and Contrast To adjust equalization the ‘pot’ labeled as cable compensation may be rotated clockwise: start by turning the ’pot’ completely ANTI-clockwise and then slowly turn clockwise until equalization is correct. As cable length increases the ’pot’ will need to be turned further clockwise. To adjust contrast (Gain) as with equalization begin by turning the ‘pot’...
  • Page 23 Installation and Operation—SLX-RX211 Incorrect Skew adjustment. In this example the Green is under equalized and the Red is slightly over equal- ized. Correct Skew adjustment. In this example colours are in alignment and hence correctly equalized.
  • Page 24 Installation and Operation—SLX-RX211 5. Mounting the Receiver The receiver unit can compensate for cable losses over a length of 20-100m, and for mounting purposes the unit is provided with two ’mounting-hole’ points for fixing to the wall or screen (See diagram below). Simply hold receiver in place, mark position of holes and set screws in these locations.
  • Page 25 RGsB, RGBS, YPrPb, YUV, Y/C, CVBS, Stereo Audio, and Infra- Red or RS232 control signals when broadcasted along a single Cat5 UTP cable from a Smart-e transmitter or matrix. The signals are received along the Cat5 from the transmitter and then distributed as a Dual-Screen output to the displays and control equipment via the appropriate connections, and to speakers via a 3.5 mm mini jack.
  • Page 26 Installation and Operation—SLX-RX212/D 1. Connecting SLX-RX212 to the display device Making sure that the Cat 5 cable is connected to the transmitter output, connect the cable to the RJ45 socket on the receiver unit. If the cable connection is correct the power LED on the front of the receiver should illuminate (power is sent up the Cat 5 cable).
  • Page 27 Installation and Operation—SLX-RX212/D 2. Connecting SLX-RX212 to audio and Infra-Red control Connect the speakers or audio inputs on the displays to the audio outputs on the receiver, using 3.5mm jack plugs. If using the receiver to transmit Infra-Red signals back down the cable to the transmitter unit then connect an ‘eye’...
  • Page 28 Installation and Operation—SLX-RX212/D 3. Adjusting Equalisation and Contrast To adjust equalization the ‘pot’ labeled as EQ may be rotated clockwise: start by turning the ’pot’ completely ANTI-clockwise and then slowly turn clockwise until equalization is correct. As cable length increases the ’pot’...
  • Page 29 Installation and Operation—SLX-RX212/D Incorrect Skew adjustment. In this example the Green is under equalized and the Red is slightly over equal- ized. Correct Skew adjustment. In this example colours are in alignment and hence correctly equalized.
  • Page 30 Installation and Operation—SLX-RX212/D 5. Setting the jumpers on the Receiver On the SLX-RX212 you are able to select the format of video outputted by the HD15s by altering the jumpers on the base of the unit shown in the diagram below.
  • Page 31 Installation and Operation—SLX-RX212D 6. How to Cascade the SLX-RX212D As well as having all the functions of the regular SLX-RX212, the SXL- RX212D also has the ability to be cascaded for up to 5 units. In order to cascade the SLX-RX212Ds Cat5 cable should be used to join together the supplementary units, with the Cat5 output on the first unit to be joined to the Cat5 input on the second unit, etc.
  • Page 32 Installation and Operation—SLX-RX212/D 7. Mounting the Receiver The receiver unit can compensate for cable losses over a length of 20-100m, and for mounting purposes the unit is provided with two ’mounting-hole’ points for fixing to the wall or screen (See diagram below). Simply hold receiver in place, mark position of holes and set screws in these locations.

  • Page 33: Appendix Specifications

    Technical Information SNX-2112/4 Video Input Signal Type - Connector………….. UXGA/RGBS/YUV/YPbPr/ - HD15. YC - 4pinminidin. CVBS - RCA Bandwidth………………………………….. 400MHz Impedance…………………………………. 75 Ohm Audio Input Signal Type…………………………………. Stereo Audio Bandwidth………………………………….. 20kHz, 0dB Impedance…………………………………. 10k Ohm Connector………………………………….. 3.5mm mini-jack, Female Local Audio Output if app.
  • Page 34 Technical Information SLX-RX100 Video Input Signal Type - Connector………….. UXGA/RGBS/YUV/YPbPr/YC/CVBS - RJ45 Bandwidth………………………………….. 400MHz Impedance…………………………………. 75 Ohm Audio Input Signal Type…………………………………. Stereo Audio Bandwidth………………………………….. 20kHz, 0dB Impedance…………………………………. 10k Ohm Connector………………………………….. RJ45 Video Output Signal Type - Connector………….. UXGA/RGBS/YUV/YPbPr/YC/CVBS - HD15 Bandwidth…………………………………..
  • Page 35 Technical Information SLX-RX111 Video Input Signal Type - Connector………….. UXGA/RGBS/YUV/YPbPr/YC/CVBS - RJ45 Bandwidth………………………………….. 400MHz Impedance…………………………………. 75 Ohm Audio Input Signal Type…………………………………. Stereo Audio Bandwidth………………………………….. 20kHz, 0dB Impedance…………………………………. 10k Ohm Connector………………………………….. RJ45 Video Output Signal Type - Connector………….. UXGA-HD15 / RGBS-Scart / YUV-3xRCA / YC-4pin minidin / CVBS-Scart Bandwidth…………………………………..
  • Page 36 Technical Information SLX-RX211 Video Input Signal Type - Connector………….. UXGA/RGBS/YUV/YPbPr/YC/CVBS - RJ45 Bandwidth………………………………….. 400MHz Impedance…………………………………. 75 Ohm Audio Input Signal Type…………………………………. Stereo Audio Bandwidth………………………………….. 20kHz, 0dB Impedance…………………………………. 10k Ohm Connector………………………………….. RJ45 Video Output Signal Type - Connector………….. UXGA-HD15 / RGBS-Scart / YUV-3xRCA / YC-4pin minidin / CVBS-Scart Bandwidth…………………………………..
  • Page 37 Technical Information SLX-RX212/D Video Input Signal Type - Connector………….. UXGA/RGBS/YUV/YPbPr/YC/CVBS - RJ45 Bandwidth………………………………….. 400MHz Impedance…………………………………. 75 Ohm Audio Input Signal Type…………………………………. Stereo Audio Bandwidth………………………………….. 20kHz, 0dB Impedance…………………………………. 10k Ohm Connector………………………………….. RJ45 Video Output Signal Type - Connector………….. UXGA/RGBS/YUV/YPbPr/YC/CVBS - 2 x HD15 (+RJ45 on SLX-RX212D) Bandwidth…………………………………..

  • Page 38: Troubleshooting

    Troubleshooting No video? Are the green LEDs on both the transmitter and receiver units? If not check that the 24V power supply (PSU) is connected and the LED on the PSU is lit. Check the cable compensation dials on the underside of the unit. Over compensation of the Red and Blue channels can cause the display to misinterpret the sync pulses and not display an image.

  • Page 39: Limited Warranty Statement

    Customer is responsible for main- taining proof of date of purchase. Smart-e warranty covers only those defects which arise as a result of normal use of the product, and do not apply to any: a.

  • Page 40: Partial Product List

    Partial Product List Product Range Product Code Description SmartLynx - X SLX-100 Transmitter and Receiver Pair SLX-400 Transmitter and Receiver Pair SmartLynx-X + SLX-111 Transmitter and Receiver Pair with RS232/IR SLX-211 Transmitter and Receiver Pair with RS232/IR SLX-212 Dual Transmitter and Receiver Pair with RS232/IR SmartCast - X SCX-TX600 One to Six Transmitter Unit...
