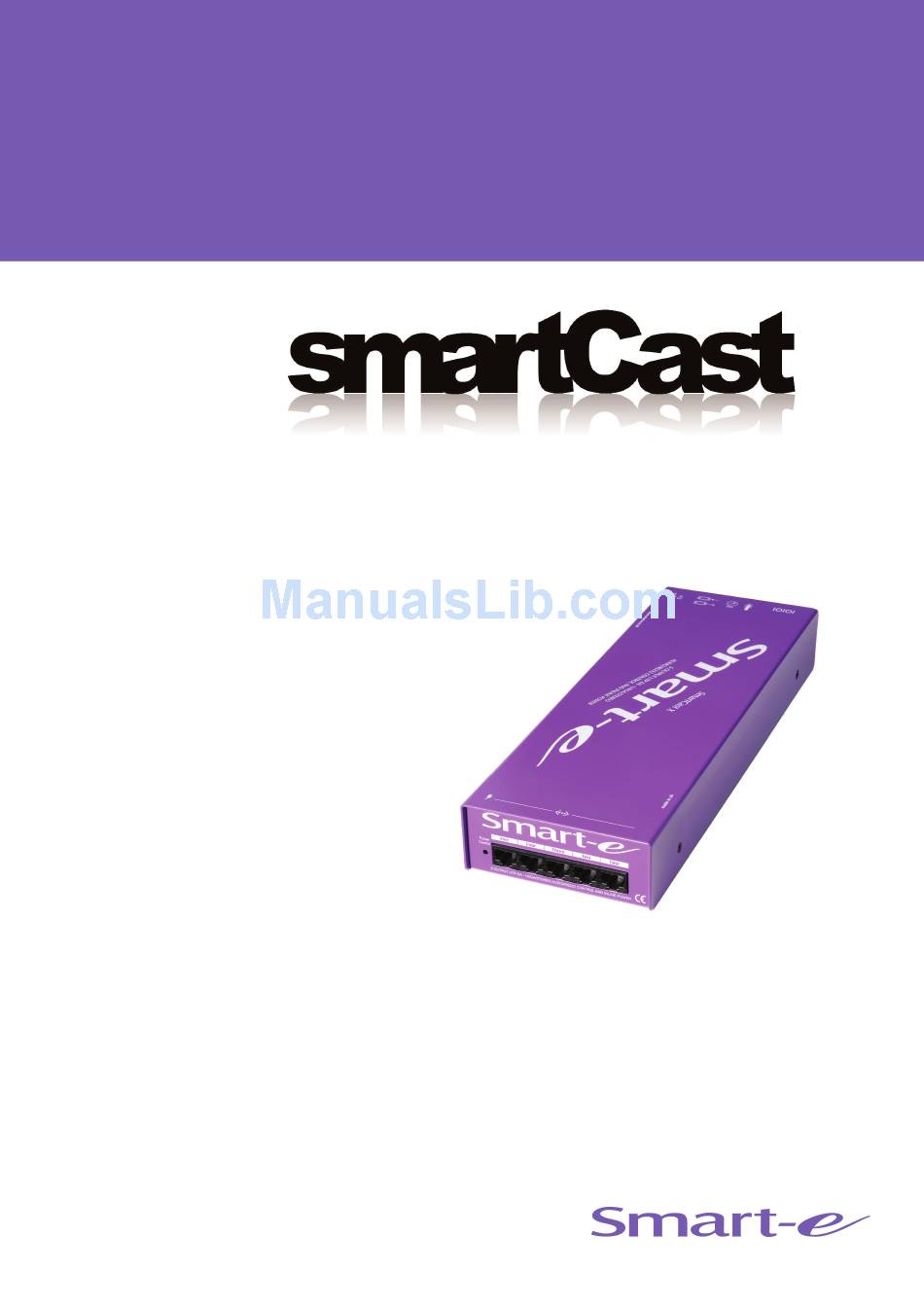

  • Page 1 SCX-TX550 point to multi-point transmitter up to 5 displays user guide also available: SCX-TX600 transmitter for up to 6 displays for more information visit our website, or talk to one of our technical team tel: +44 (0) 1306 628264, www.smart-e.co.uk...
  • Page 2 Smart-e will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.

  • Page 3: Table Of Contents

    Table of Contents Introducing SmartCast What ‘s in the box ..................1 What is SmartCast ..................2 Why is SmartCast necessary ..............2 How does SmartCast work ................. 2 Installation and Operation Transmitter ......................3 Receiver Options ....................11-34 Appendix Specifications .....................

  • Page 4: Introducing Smartcast

    Introducing SmartCast AV Distributor What‘s in the box? Thank you for buying the Smart-e SmartCast Cat5 AV Transmitter. Depending on the configuration of your system various quantities of the parts below may be included in your shipment, also functionality will vary depending on the receivers that you ordered.

  • Page 5: What Is Smartcast

    SXGA (1280x1024) How does SmartCast work? The Smart-e SmartCast is designed to transmit desktop computer video and stereo audio signals over (UTP) unshielded twisted pair category 5 (Cat 5) cabling. They are supplied with a UK power supply and consists of a transmitter with one input and five outputs (Cascade able up to 20 outputs).

  • Page 6: Installation And Operation

    Installation and Operation 1. Preparing for installation Start installation process by ensuring that all video displays and audio devices are compatible with the computers being used. This is accomplished by connecting the devices directly to the computer and checking that the devices operate as desired without the SmartLynx system.

  • Page 7: Transmitter

    Installation and Operation 2. Connecting Video to the transmitter Connect the video output of the source device to the input of the transmitter using a standard HD15 VGA cable, or the relevant interface cable if using another video format. If using RGBS please ensure that the transmitter is configured correctly - see page 9.
  • Page 8 3. Connecting Audio and Infra-red to the transmitter Connect the audio output of the source device to the ‘audio in’ mini jack connectors on the SCX-TX550, using a stereo minijack cable or interface cable if appropriate. If using Infra-Red connect the SM-LED or SM-EYE to the relevant...
  • Page 9 (CAB-R19-1M) provided, connect to an available serial port on the control system/computer. (If not using the supplied cable please contact your nearest Smart-e distributor or call +44 1306 628264 for pin out information) Connect the RJ45 on the adaptor cable to the left RJ45 socket on the transmitter, this is labelled “RS232 IN”...
  • Page 10 Installation and Operation 5. Connecting the looping output or local monitor. For Video connect the HD15 marked on the diagram ‘Video OUT’ to: If using the cascading feature - the HD15 marked on the diagram as ’Video IN’, on the second unit. If using a local monitor - the HD15 PC In on the monitor.
  • Page 11 Installation and Operation 6. Configuring the Unit for RGBS Video. To transmit RGBS, an internal jumper must be altered. Disconnect the power and remove the lid from the product. Keeping the larger front board to the left of you look for the jumper shown in the diagram below: For VGA the jumper must be on the left and middle pins, For RGBS the jumper must be on the middle and right pins (as per...
  • Page 12 Installation and Operation 7. System Power up Turn the system on by plugging in the power adapter to the SmartLynx if they are not yet connected (See diagram opposite). Power up your computer. Observe both transmitter and receiver power LED are ON, and source device is switched on.

  • Page 13: Receiver Options

    Receiver Options 9. Smartlynx Receiver Options There are a number of different receiver options available to accompany the SCX- TX550, please check the model number and relevant page number reference below. SLX-RX100 UXGA, RGsB, YPrPb, Y/C, CVBS and Stereo Audio For Instructions on Installation of the SLX-RX100 see page……………………………………………...13 SLX-RX111 UXGA, RGBS, RGsB, YPrPb, Y/C, CVBS, Stereo...
  • Page 14 Receiver Options SLX-RX212/D Dual Screen Output, UXGA, RGsB, YPrPb, Y/C, CVBS and Stereo Audio, with RS232 or Infra-Red control option. SLX-RX212D can be cascaded. For Instructions on Installation of the SLX-RX212 see page………………………………………………27...
  • Page 15 The SLX-RX100 allows for the reception of UXGA, RGsB, YPrPb, YUV, Y/C, CVBS and stereo audio, when broadcasted along a single Cat5 UTP cable from a Smart-e transmitter or matrix. The unit then distributes the received signal to a display via a...
  • Page 16 Installation and Operation—SLX-RX100 1. Connecting SLX-RX100 to the display device Making sure that the Cat 5 cable is connected to the TX550 transmitter output, connect the cable to the RJ45 socket on the receiver unit. If the cable connection is correct the power LED on the front of the receiver should illuminate (power is sent up the Cat 5 cable).
  • Page 17 Installation and Operation—SLX-RX100 2. Setting the cable length dials The Receiver unit is preset for approximately 50m which is sufficiently accurate for most applications. However if the image does not look sharp enough then follow the instructions below Whilst looking at an image on the display, preferably a long horizontal bar, adjust the CABLE COMPENSATION dial.
  • Page 18 Installation and Operation—SLX-RX100 3. Sync Processing For VGA applications the Transmitter adds the Horizontal and Vertical Sync Pulses to the Blue and Red channels. However, since the unit has been designed for use with other types of video the Receiver provides the ability to pass both the Red and Blue channels transparently or process them to remove the Sync Pulses.
  • Page 19 Installation and Operation—SLX-RX111 SLX-RX111 The SLX-RX111 allows for the Short Range reception of UXGA, RGsB, RGBS, YPrPb, YUV and Long Range reception of Y/C, CVBS, Stereo Audio, and Infra-Red or RS232 control signals, when broadcasted along a single Cat5 UTP cable from a Smart -e transmitter or matrix.
  • Page 20 Installation and Operation—SLX-RX111 1. Connecting SLX-RX111 to the display device Making sure that the Cat 5 cable is connected to the transmitter output, connect the cable to the RJ45 socket on the receiver unit. If the cable connection is correct the power LED on the front of the receiver should illuminate (power is sent up the Cat 5 cable).
  • Page 21 Installation and Operation—SLX-RX111 2. Connecting SLX-RX111 to audio and Infra-Red control Connect the speakers or audio input on the display to the audio output on the receiver, using a 3.5mm jack plug. If using the receiver to transmit Infra-Red signals back down the cable to the transmitter unit then connect an ‘eye’...
  • Page 22 Installation and Operation—SLX-RX111 3. Mounting the Receiver The receiver unit can compensate for cable losses over a length of 20-100m, and for mounting purposes the unit is provided with two ’mounting-hole’ points for fixing to the wall or screen (See diagram below). Simply hold receiver in place, mark position of holes and set screws in these locations.
  • Page 23 RGsB, RGBS, YPrPb, YUV, Y/C, CVBS, Stereo Audio, and Infra- Red or RS232 control signals when broadcasted along a single Cat5 UTP cable from a Smart-e transmitter or matrix. The signals are received along the Cat5 from the transmitter and then distributed to the display and control equipment via the appropriate connection and to speakers via a 3.5 mm mini...
  • Page 24 Installation and Operation—SLX-RX211 1. Connecting SLX-RX211 to the display device Making sure that the Cat 5 cable is connected to the transmitter output, connect the cable to the RJ45 socket on the receiver unit. If the cable connection is correct the power LED on the front of the receiver should illuminate (power is sent up the Cat 5 cable).
  • Page 25 Installation and Operation—SLX-RX211 2. Connecting SLX-RX211 to audio and Infra-Red control Connect the speakers or audio input on the display to the audio output on the receiver, using a 3.5mm jack plug. If using the receiver to transmit Infra-Red signals back down the cable to the transmitter unit then connect an ‘eye’...
  • Page 26 Installation and Operation—SLX-RX211 3. Adjusting Cable Compensation (Equalization) and Contrast Control To adjust equalization the ‘pot’ labelled as Cable Compensation may be rotated clockwise: start by turning the ’pot’ completely ANTI-clockwise and then slowly turn clockwise until equalization is correct. As cable length increases the ’pot’...
  • Page 27 Installation and Operation—SLX-RX211 Incorrect Skew adjustment. In this example the Red signal is most delayed and the Green signal the least delayed. Correct Skew adjustment. In this example colours are in alignment and hence correctly equalized.
  • Page 28 Installation and Operation—SLX-RX211 5. Mounting the Receiver The receiver unit can compensate for cable losses over a length of 20-100m, and for mounting purposes the unit is provided with two ’mounting-hole’ points for fixing to the wall or screen (See diagram below). Simply hold receiver in place, mark position of holes and set screws in these locations.
  • Page 29 RGsB, YPrPb, YUV, Y/C, CVBS, Stereo Audio, and Infra-Red or RS232 control signals when broadcasted along a single Cat5 UTP cable from a Smart-e transmitter or matrix. The signals are received along the Cat5 from the transmitter and then distributed as a Dual-Screen output to the displays and control equipment via the appropriate connections, and to speakers via a 3.5 mm mini jack.
  • Page 30 Installation and Operation—SLX-RX212/D 1. Connecting SLX-RX212 to the display device Making sure that the Cat 5 cable is connected to the transmitter output, connect the cable to the RJ45 socket on the receiver unit. If the cable connection is correct the power LED on the front of the receiver should illuminate (power is sent up the Cat 5 cable).
  • Page 31 Installation and Operation—SLX-RX212/D 2. Connecting SLX-RX212 to audio and Infra-Red control Connect the speakers or audio inputs on the displays to the audio outputs on the receiver, using 3.5mm jack plugs. If using the receiver to transmit Infra-Red signals back down the cable to the transmitter unit then connect an ‘eye’...
  • Page 32 Installation and Operation—SLX-RX212/D 3. Adjusting Equalisation and Contrast To adjust equalization the ‘pot’ labelled as EQ may be rotated clockwise: start by turning the ’pot’ completely ANTI-clockwise and then slowly turn clockwise until equalization is correct. As cable length increases the ’pot’ will need to be turned further clockwise. To adjust contrast (Gain) as with equalization begin by turning the ‘pot’...
  • Page 33 Installation and Operation—SLX-RX212/D Incorrect Skew adjustment. In this example the Green is under equalized and the slightly over equalized. Correct Skew adjustment. In this example colours are in alignment and hence correctly equalized.
  • Page 34 Installation and Operation—SLX-RX212/D 5. Setting the jumpers on the Receiver On the SLX-RX212 you are able to select the format of video outputted by the HD15s by altering the jumpers on the base of the unit shown in the diagram below.
  • Page 35 Installation and Operation—SLX-RX212D 6. How to Cascade the SLX-RX212D As well as having all the functions of the regular SLX-RX212, the SXL- RX212D also has the ability to be cascaded for up to 5 units. In order to cascade the SLX-RX212Ds Cat5 cable should be used to join together the supplementary units, with the Cat5 output on the first unit to be joined to the Cat5 input on the second unit, etc.
  • Page 36 Installation and Operation—SLX-RX212/D 7. Mounting the Receiver The receiver unit can compensate for cable losses over a length of 20-100m, and for mounting purposes the unit is provided with two ’mounting-hole’ points for fixing to the wall or screen (See diagram below). Simply hold receiver in place, mark position of holes and set screws in these locations.

  • Page 37: Technical Information

    Technical Information SCX-TX550 Video Input Signal Type - Connector………….. UXGA/RGBS/YUV/YPbPr/YC/CVBS - HD15 Bandwidth………………………………….. 400MHz Impedance…………………………………. 75 Ohm Audio Input Signal Type…………………………………. Stereo Audio Bandwidth………………………………….. 20kHz, 0dB Impedance…………………………………. 10k Ohm Connector………………………………….. 3.5mm mini-jack, Female Local Audio Output if app. Signal Type…………………………………. Stereo Audio Bandwidth…………………………………..
  • Page 38 Technical Information SLX-RX100 Video Input Signal Type - Connector………….. UXGA/YUV/YPbPr/YC/CVBS - RJ45 Bandwidth………………………………….. 400MHz Impedance…………………………………. 75 Ohm Audio Input Signal Type…………………………………. Stereo Audio Bandwidth………………………………….. 20kHz, 0dB Impedance…………………………………. 10k Ohm Connector………………………………….. RJ45 Video Output Signal Type - Connector………….. UXGA/YUV/YPbPr/YC/CVBS - HD15 Bandwidth…………………………………..
  • Page 39 Technical Information SLX-RX111 Video Input Signal Type - Connector………….. UXGA/RGBS/YUV/YPbPr/YC/CVBS - RJ45 Bandwidth………………………………….. 400MHz Impedance…………………………………. 75 Ohm Audio Input Signal Type…………………………………. Stereo Audio Bandwidth………………………………….. 20kHz, 0dB Impedance…………………………………. 10k Ohm Connector………………………………….. RJ45 Video Output Signal Type - Connector………….. UXGA-HD15 / RGBS / YUV-3xRCA / YC-4pin minidin / CVBS Bandwidth…………………………………..
  • Page 40 Technical Information SLX-RX211 Video Input Signal Type - Connector………….. UXGA/RGBS/YUV/YPbPr/YC/CVBS - RJ45 Bandwidth………………………………….. 400MHz Impedance…………………………………. 75 Ohm Audio Input Signal Type…………………………………. Stereo Audio Bandwidth………………………………….. 20kHz, 0dB Impedance…………………………………. 10k Ohm Connector………………………………….. RJ45 Video Output Signal Type - Connector………….. UXGA-HD15 / RGBS / YUV-3xRCA / YC-4pin minidin / CVBS Bandwidth…………………………………..
  • Page 41 Technical Information SLX-RX212/D Video Input Signal Type - Connector………….. UXGA/YUV/YPbPr/YC/CVBS - RJ45 Bandwidth………………………………….. 400MHz Impedance…………………………………. 75 Ohm Audio Input Signal Type…………………………………. Stereo Audio Bandwidth………………………………….. 20kHz, 0dB Impedance…………………………………. 10k Ohm Connector………………………………….. RJ45 Video Output Signal Type - Connector………….. UXGA/YUV/YPbPr/YC/CVBS - 2 x HD15 (+RJ45 on SLX-RX212D) Bandwidth…………………………………..

  • Page 42: Troubleshooting

    Troubleshooting No video? Are the green LEDs on both the transmitter and receiver units? If not check that the 24V power supply (PSU) is connected and the LED on the PSU is lit. Check the cable compensation dials on the underside of the unit. Over compensation of the Red and Blue channels can cause the display to misinterpret the sync pulses and not display an image.

  • Page 43: Limited Warranty Statement

    Customer is responsible for maintaining proof of date of purchase. Smart-e warranty covers only those defects which arise as a result of normal use of the product, and do not apply to any: a. Improper or inadequate maintenance or modifications b.

  • Page 45: Partial Product List

    SLX-212 Dual Transmitter and Receiver Pair with RS232/IR SmartCast - X SCX-TX600 One to Six Transmitter Unit SmartCast-X+ SCX-TX550 One to Five Transmitter Unit with RS232/IR SmartCast System TUSC-1042 SmartCast Eurocard Rack (Up to 16 cards) SCX-TX120E Dual Screen Transmitter Eurocard...
