JVC VS-DT2000R Service Manual

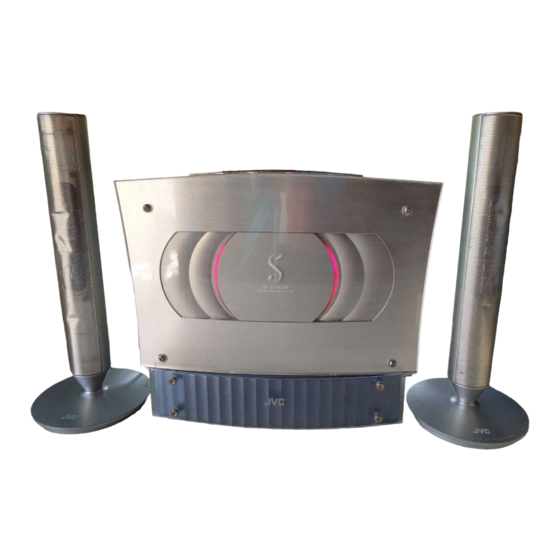

Compact component system
Hide thumbs Also See for VS-DT2000R:

Advertisement

Quick Links

SERVICE MANUAL
COMPACT COMPONENT SYSTEM
STANDBY/ON
1
2
3
PLAY MODE
4
5
6
REPEAT
7
8
9
FM MODE
10
+
10
BASS
TREBLE
SET
MD/AUX
CANCEL
PTY
PTY
TA/NEWS
SEARCH
SELECT
/INFO
DISPLAY
FM/AM
MODE
DIMMER
SLEEP
DISPLAY
CLOCK
OPEN/
COLOR
/TIMER
CLOSE
VOLUME
RM-SVSDT2000R REMOTE CONTROL
SP-VSDT2000
Contents
Safety precautions
Preventing static electricity
Important for laser products
Disassembly method
Flow of functional operation
until TOC read
VS-DT2000R
COMPACT COMPONENT SYSTEM
CA-VSDT2000R
1-2
1-4
1-5
1-6
1-19
COPYRIGHT
2002 VICTOR COMPANY OF JAPAN, LTD.
B ------------------------------- U.K.
E ----------- Continental Europe
EN ------------ Northern Europe
EV -------------- Eastern Europe
SP-VSDT2000
Error code
Maintenance of laser pickup
Replacement of laser pickup
Description of major ICs
VS-DT2000R
Area suffix
SP-PW2000
1-20
1-21
1-21
1-22
35
No.21078
May. 2002

Advertisement

loading
Need help?

Need help?

Do you have a question about the VS-DT2000R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JVC VS-DT2000R

Summary of Contents for JVC VS-DT2000R

  • Page 1 VS-DT2000R SERVICE MANUAL COMPACT COMPONENT SYSTEM VS-DT2000R Area suffix B ------------------------------- U.K. E ----------- Continental Europe EN ------------ Northern Europe EV -------------- Eastern Europe COMPACT COMPONENT SYSTEM STANDBY/ON PLAY MODE REPEAT FM MODE BASS TREBLE MD/AUX CANCEL TA/NEWS SEARCH SELECT...
  • Page 2 VS-DT2000R 1. This design of this product contains special hardware and many circuits and components specially for safety purposes. For continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Services should be performed by qualified personnel only.
  • Page 3 VS-DT2000R (U.K only) 1. This design of this product contains special hardware and many circuits and components specially for safety purposes. For continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer.
  • Page 4 VS-DT2000R Preventing static electricity 1. Grounding to prevent damage by static electricity Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
  • Page 5 VS-DT2000R Important for laser products 5.CAUTION : If safety switches malfunction, the laser is able 1.CLASS 1 LASER PRODUCT to function. 2.DANGER : Invisible laser radiation when open and inter lock failed or defeated. Avoid direct exposure to beam. 6.CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result in 3.CAUTION : There are no serviceable parts inside the...
  • Page 6 VS-DT2000R Disassembly method Top lens <Main body section> Removing the top lens (See Fig. 1.) From the top side of the main body, remove the four screws A attaching the top lens. Fig.1 Top panel Removing the bottom panel (See Figs. 2 and 3.) From the rear side of the main body, remove the three screws B attaching the bottom panel.
  • Page 7 VS-DT2000R Removing the CD mechanism assembly (See Fig. 5.) Remove the top lens. CD mechanism assembly Remove the bottom panel. Remove the top panel. CN801 From the top side of the main body, disengage the claw c of the CD mechanism assembly and then LED board remove the push button.
  • Page 8 VS-DT2000R Removing the tuner board (See Figs. 8 and 9.) Notch Remove the top lens. CD mechanism Remove the bottom panel. assembly wire Remove the top panel. Speaker board Remove the CD mechanism assembly. Tie band CN101 Disconnect the card wire from connector CN111 on CN102 the main board.
  • Page 9 VS-DT2000R Removing the main board (See Figs. 10 and 11.) Remove the top lens. Main board Power transformer Remove the bottom panel. Remove the top panel. Wire clamp Remove the CD mechanism assembly. Remove the front panel assembly. CN191 Remove the tuner board.
  • Page 10 VS-DT2000R Removing the power transformer (See Fig. 13.) Remove the top lens. Tie band Remove the bottom panel. Main board Power transformer Remove the top panel. Wire clamp Remove the CD mechanism assembly. Washers Disengage the wire clamp and tie band bundling CN191 the wires of the power transformer.
  • Page 11 VS-DT2000R <Front panel assembly section> Door motor assembly Remove the top lens. Switch board Remove the bottom panel. Remove the top panel. Remove the CD mechanism assembly. Remove the front panel assembly. Removing the switch board (See Fig. 15.) Front panel assembly...
  • Page 12 VS-DT2000R <CD mechanism assembly section> Claw a Removing the LED board (See Fig. 1.) LED board From the top side of the CD mechanism assembly, disengage the claw a of the top chassis attaching the LED board and then remove the LED board.
  • Page 13 VS-DT2000R Removing the traverse mechanism assembly (See Fig. 4.) Traverse mechanism CD servo board assembly bracket Remove the CD servo board. Remove the two screws C attaching the CD servo board bracket. Remove the two screws D attaching the traverse mechanism assembly.
  • Page 14 VS-DT2000R Attaching the pickup unit Section f (See Figs. 7 and 8.) [Reference] Refer to the explanation of "Removing the pickup unit" on the preceding page. Attach the P.S. spring and rack plate to the pickup unit. Groove g Insert the shaft into the pickup unit.
  • Page 15 VS-DT2000R Removing the CD switch board (See Fig.10.) CD mechanism assembly Clamper base assembly Remove the CD mechanism assembly. From the top side of the CD mechanism assembly, remove the screw K attaching the CD switch board. Lift the CD switch board slightly and then remove the wire from connector CN101 on the CD switch board.
  • Page 16 VS-DT2000R <Speaker section> Removing the amplifier assembly (See Figs. 1 and 2.) From the rear side of the speaker main body, remove the eleven screws A attaching the amplifier assembly. Remove the connectors from the speaker. Amplifier assembly Fig.1 Connectors Amplifier assembly Fig.2...
  • Page 17 VS-DT2000R Removing the pre-amplifier board Power supply board Volume bracket (See Fig. 4.) Remove the amplifier assembly. Remove the back panel. Remove the two screws C attaching the pre- amplifier board from the volume bracket. CN211 Disengage the tie band bundling the wires from the Pre-amplifier power transformer.
  • Page 18 VS-DT2000R Removing the power transformer (See Figs. 7 and 8.) Remove the amplifier assembly. Remove the back panel. Remove the pre-amplifier board. Cord cover Remove the power supply board. Remove the two screws G attaching the cord cover. Remove the four screws H and four washers attaching the power transformer.
  • Page 19 VS-DT2000R Flow of functional operation until TOC read Check Point Slider turns REST Power ON Play Key Confirm that the voltage at the pin3 SW ON. of CN611 is "H"\"L"\"H". Automatic tuning of TE offset Laser ON Detection of disc...
  • Page 20 VS-DT2000R Error code Error code indication Error code is indicated on the FL display. This unit is placed horizontally. SOURCE PRESET SOURCE PRESET C O M P A C T C O M P O N E N T S Y S T E M This unit is placed vertically.
  • Page 21 VS-DT2000R Replacement of laser pickup Maintenance of laser pickup (1) Cleaning the pick up lens Before you replace the pick up, please try to Turn off the power switch and, disconnect the clean the lens with a alcohol soaked cotton power cord from the ac outlet.
  • Page 22 VS-DT2000R Description of major ICs MN101C30AKJ1 (IC701) : System control microcomputer 1. Terminal layout 2. Pin function Pin No. Symbol Function THERM Temperature detection, ON/OFF control of FAN_SW signal(pin 57) KEY1 Key switch input of the main body KEY2 Key switch input of the main body...
  • Page 23 VS-DT2000R Pin No. Symbol Function Connect to ground Connect to ground Connect to ground CDRSI CD reset output (Connect to FMU-F1.) Connect to ground BLCTL Not connect PSAVE Power save mode ON/OFF signal, SAVE=H CD power supply ON/OFF, not use...
  • Page 24 VS-DT2000R MN662790RSC (IC651) : Digital servo & Digital signal prossesor 1. Terminal layout 2. Pin function Pin No. Symbol Function BCLK Bit clock output for SRDATA LRCK LR signal separation output SRDATA Serial data output DVDD1 Power supply for digital circuit...
  • Page 25 VS-DT2000R Pin No. Symbol Function PLLF2 Not use DSLBDA Not use WVEL Not use RF signal input IREF Referrence current input Bias pin for DSL DSLF Loop filter pin for DSL PLLF Loop filter pin for PLL VCOF Loop filter pin for VCO...
  • Page 26 VS-DT2000R UPD780024AGKB62 (IC251) : Unit microcomputer 1. Terminal layout 2. Pin function Pin No. Symbol Function P50/A8 Connect to ground P59/A9 Not use Synchronous/asynchronous output MRDY Ready signal input CDINDEX Not use CDEMP Not use CDTNO Not use CDCOPY Not use...
  • Page 27 VS-DT2000R Pin No. Symbol Function Connect to external crystal oscillator VSS1 Ground terminal FLAG Flag signal input BLKCK Sub code block clock signal input /RFDET RF signal amplitude detecting signal input EQx2 Equalizer select signal input EQx4 Equalizer select signal input...
  • Page 28 VS-DT2000R MN101C35DKB (IC811) : FL driver microcomputer 1. Terminal layout 2. Pin function Pin No. Symbol Function Not connect FLDATA FL driver communication data input/output FLCLK FL driver communication clock input Not connect FLCS FL driver communication chip select input...
  • Page 29 VS-DT2000R AN22000A (IC601) : RF & Servo amplifier 1. Terminal layout 2. Block diagram 3TOUT VDET /RFDET FEOUT TEOUT TEBPF OFTR OFTR 3TENV VDET COFTR SUBT SUBT CBDO FBAL TBAL C.AGC GCTRL NRFDET RF IN RF OUT RF_EQ 3. Pin function...
  • Page 30 VS-DT2000R LA1838 (IC1) : FM AM IF amplifier & Detector, FM MPX Decoder 1. Terminal layout & Block diagram DECODER ANIT-BIRDIE P-DET BUFF RF.AMP MUTE STEREO AM IF PILOT 384KHz COMP S-METER AM/FM S-CLRVE S-METER IF-BUFF TUNING STEREO DRIVE DRIVE FM IF 2.
  • Page 31 VS-DT2000R LA6575H (IC801) : Focus & Spindle & Feed & Tracking BTL driver 1. Terminal layout 2. Block diagram 28 27 26 25 24 23 22 21 20 19 18 17 16 15 Signal Input MUTE system power MUTE is as follows:...
  • Page 32 VS-DT2000R LC72136N (IC2) : PLL frequency synthesizer 1. Terminal layout 2. Block diagram XOUT Phase Reference Detector Driver LPFOUT Charge Pump LPFIN Swallow Counter ST/MONO Unlock FMOSC 1/16,1/17 4bit Detector AM/FM AMOSC IF REQ SDIN FM/AMIF 12bit Programmable Drivers Universal Data Shift Register &...
  • Page 33 VS-DT2000R LC72723 (IC3) : RDS decoder 1. Terminal layout 2. Block diagram VREF FLOUT CIN VREF RDS-ID/READY VDDA VDDD CLOCK RECOVERY REFERENCE (57kHz) RDCL (1187.5Hz) VOLTAGE VSSA VDDA RDDA 57kHz VSSA ANTIALIASING SMOOTHING RDDA DATA (SCF) FILTER FILTER DECODER FLOUT...
  • Page 34 VS-DT2000R LC75342M (IC501) : E. volume 1. Terminal layout 2. Block diagram RSELO RTRE RBASS1 RBASS2 ROUT DATA CLOCK VREF TEST ROUT LOUT RBASS2 LBASS2 TEST RBASS1 LBASS1 RTRE LTRE LVref CONTROL CIRCUIT RSELO LSELO LOGIC DATA CIRCUIT INTERFACE CLOCK...
  • Page 35 VS-DT2000R STK411-290E (IC221) : Power amplifier 1. Terminal layout 2. Block diagram 1 +VH TR31 TR21 Comparator TR14 TR13 TR11 TR23 +VL comp TR16 TR15 R2 C1 TR20 TR12 TR24 -LIN TR10 TR22 TR19 R7 TR7 TR17 -VL comp Comparator...
  • Page 36 VS-DT2000R VICTOR COMPANY OF JAPAN, LIMITED AUDIO & COMMUNICATION BUSINESS DIVISION PERSONAL & MOBILE NETWORK BUSINESS UNIT. 10-1,1Chome,Ohwatari-machi,maebashi-city,371-8543,Japan No.21078 200205...

  • Page 37: Block Diagram

    VS-DT2000R Block diagram Main body section CD servo board Main board Front board IC601 IC812 RF & Servo Front Pickup amplifier REMOCON CD switch IC811 board Loading motor DI811 board driver display MICOM IC251 Unit MICOM IC701 LVA10324-A2 Loading System...
  • Page 38 VS-DT2000R VS-DT2000R Standard schematic diagrams (To D-1 on page 2-4) (To G-3 and G-4 on page 2-6) System control section CN111 CN171 QGF1205C1-13 QGF1016C1-17 K7003 QQR1183-001Z C7201 0.01 C7210 Q7005 KRC102-X R7201 2.7K R7202 2.7K Q7006 KRA102S-X Q7008 DTA114TKA-X STBDIM...
  • Page 39 VS-DT2000R Power amplifier/Power supply section J3601 J3001 GP1FA550TZ QNB0092-002 R5305 S3601 QSW0454-001 2SD2114K/VW/-X 2SC2412K/R/-X Q1115 Q1102 R1116 2.2K R1118 R1112 QGA2501C1-05 QGA2501C1-04 CN102 CN101 3.3K C5104 R1108 10/35 C1109 R1114 R1307 0.0022 R1309 9.1K C1103 C1104 C5107 R1110 C1108 R1115...
  • Page 40 VS-DT2000R VS-DT2000R Tuner section Front end diagram QAU0160-001 0.0039 0.47/50 0.0022 0.047 22/50 1/50 0.047 470P 0.02 22/16 3.9K 10/25 0.001 10/16 10/16 1SS133-T2 100/16 1000P 1SS133-T2 0.018 0.018 3.3K QAX0420-001 LC72136N 1SS133-T2 LA1838 2SC1623/5-6/-X 2SC1623/5-6/-X 1SS133-T2 QNB0153-001 DTA114YKA-X QAX0458-001Z 5.6K...
  • Page 41 VS-DT2000R CD servo control section R601 220k TBAL R602 FBAL C604 0.022 CN671 C603 0.022 C607 C601 C602 SQCK R257 /SW3 GCTL KCMND /SW2 R259 MSTAT KCLK R263 IC251 R251 MCLK R262 R252 MDATA UPD780024AGKB62 R253 R254 /DMUTE STAT /RESET...
  • Page 42 VS-DT2000R VS-DT2000R FL control section DI811 QLF0100-001 C805 0.01/50 C810 C803 C808 C811 C804 100P/50 4.7/50 0.01/50 100P/50 4.7/50 C802 C801 CN811 0.01 100/6.3 QGF1016F2-17W C814 100P/50 C813 100P/50 X811 R893 NAX0248-001X FLDATA R892 FLCLK R891 FLCS Q821 IC811 DTC114TKA-X C812 0.01/50...
  • Page 43 VS-DT2000R Subwoofer section IC221 STK411-290E C2201 100P/50 D2201 D2202 R2223 R2224 R2203 MTZJ8.2C-T2 MTZJ8.2C-T2 C2213 C2219 C2218 C2217 1/50 S2101 10/35 10/35 8.2P/50 R2202 QSW0834-001 VR211 10KB C2204 C2252 10/35 R2252 C2101 R2103 R2105 10/50 D2205 D2206 C2203 MTZJ33C-T2 MTZJ33C-T2...
  • Page 44 VS-DT2000R VS-DT2000R Printed circuit boards <Main body section> Main board (Speaker board) (LED board) C5504 CN103 R5502 LF311 CN101 IC801 LF321 CN102 R8008 R8017 D5504 LF551 R8007 R8018 C3602 D5503 R8006 R8019 D5501 R8005 R8020 C3601 S3601 C3105 J5503 J3601...
  • Page 45 VS-DT2000R Front board CD servo board Forward side Reverse side Forward side K656 R656 R677 R655 R864 R619 K657 R657 R862 C616 K658 R658 R861 C615 R863 -VPP D.GND C612 SW5V SW10V US5V CN612 STBLED5V C607 LGND R605 R604 LGND...
  • Page 46 VS-DT2000R VS-DT2000R <Speaker section> Switch board Subwooofer board (Pre-amplifier board) (CD switch board) S101 (Switch board) D2506 R101 CN251 R2503 D2505 B8002 D2509 CN101 IC251 B6302 D2502 S2902 Q2501 C2506 C2501 R2505 R2504 R2122 D2503 R2123 IC213 R2520 B8301 R2507...

  • Page 47: Table Of Contents

    VS-DT2000R PARTS LIST [ VS-DT2000R ] * All printed circuit boards and its assemblies are not available as service parts. Area suffix B ------------------------------- U.K. E ----------- Continental Europe EN ------------ Northern Europe EV -------------- Eastern Europe - Contents - 3- 3 Exploded view of general assembly and parts list (Block No.M1)
  • Page 48 VS-DT2000R < M E M O >...
  • Page 49 VS-DT2000R Exploded view of general assembly and parts list Block No. Power amplifier board Main board Tuner board 69 72 Switch board Speaker board 16.10 16.20 Open/Close board FL board...
  • Page 50 VS-DT2000R VS-DT2000R Parts list (General assembly) Parts list (General assembly) Block No. M1MM Block No. M1MM Item Parts number Parts name Q'ty Description Area Item Parts number Parts name Q'ty Description Area SPACER GV40333-001A GV10091-001A MOVING BASE GV40330-001A SPACER 1 STICK ON TOP CH...

  • Page 51: Speaker Assembly And Parts List (Block No.m2)

    VS-DT2000R Speaker assembly and parts list Block No.
  • Page 52 VS-DT2000R Parts list (Speaker assembly) Block No. M2MM Item Parts number Parts name Q'ty Description Area LV10253-002A COVER LV20470-017A BACK PANEL LV41146-001A VOLUME BRACKET LV41147-001A AC BRACKET LV31303-002A HEAT SINK LV41211-001A HEAT SINK LV41148-002A CORD COVER LV30225-025A SPACER SPACER LV30225-026A...

  • Page 53: Cd Mechanism Assembly And Parts List (Block No.mb)

    VS-DT2000R CD mechanism assembly and parts list Block No. FMU-F1-1M Grease = JVG-31N = JC-803B = JVS-1003 Back side CD switch A=0.6 0.2mm board SLIT WASHER 131.3 0.1mm Gap 'A' Gap 'A' 13.3 0.1mm 0 0.1mm 6.7 0.1mm Tra-mecha CD servo board...
  • Page 54 VS-DT2000R Parts list (CD mechanism) Block No. MBMM Item Parts number Parts name Q'ty Description Area LV10647-005A LOADING BASE LV33481-004A KICK LEVER UNIT LV42819-002A COMP.SPRING LV21204-003A SLIDE CAM LV42977-001A CAM SPRING LV33336-001A UD GEAR WJM0294-002A E-SI C WIRE C-F QJJ024-041504...
  • Page 55 VS-DT2000R Parts list (CD mechanism) Block No. MBMM Item Description Parts number Parts name Q'ty Area LV42965-001A ROD SPRING QUQ210-0705DF FFC WIRE CD PWB BKT LV33345-001A QYSBSF2006Z SCREW 4 FOR PWB/BKT QYSBSF2006Z SCREW 2 FOR PWB LV10650-003A T.CHASSIS LV33349-002A MIDDLE GEAR...
  • Page 56 VS-DT2000R Electrical parts list (Main board) Block No. 01 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area NCB31CK-223X C CAPACITOR CN 1 QGF1205C1-13 CONNECTOR B,E,EV NCB31CK-103X C CAPACITOR CN 1 QGF1205F1-13 CONNECTOR QEKC1CM-106Z E CAPACITOR...
  • Page 57 VS-DT2000R Electrical parts list (Main board) Block No. 01 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area C1917 NCB31HK-103X C CAPACITOR C5210 QFVJ1HJ-104Z MF CAPACITOR .10MF 5% 50V C1918 QTE1E06-476Z E CAPACITOR C5211 NCS31HJ-151X...
  • Page 58 VS-DT2000R Electrical parts list (Main board) Block No. 01 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area D1917 1SS133-T2 SI DIODE L1215 QQL231K-470Y INDUCTOR D1918 1SS133-T2 SI DIODE L1801 QQL25CK-221Z INDUCTOR M.DRIVER D1919 MTZJ5.6B-T2...
  • Page 59 VS-DT2000R Electrical parts list (Main board) Block No. 01 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area Q7007 KRC102S-X D.TRANSISTOR R1119 NRSA63J-222X MG RESISTOR Q7008 DTA114TKA-X D.TRANSISTOR R1120 NRSA63J-272X MG RESISTOR Q7009 KTC3199/GL/-T TRANSISTOR...
  • Page 60 VS-DT2000R Electrical parts list (Main board) Block No. 01 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area R1935 NRSA63J-272X MG RESISTOR R7006 NRSA63J-103X MG RESISTOR R1936 NRSA63J-151X MG RESISTOR R7007 NRSA63J-103X MG RESISTOR R1937...

  • Page 61: Electrical Parts List (Block No.01~06)

    VS-DT2000R Electrical parts list (Main board) Block No. 01 Item Parts number Parts name Remarks Area R7206 NRSA63J-471X MG RESISTOR R8005 NRSA63J-221X MG RESISTOR R8006 NRSA63J-221X MG RESISTOR R8007 NRSA63J-331X MG RESISTOR R8008 NRSA63J-331X MG RESISTOR R8017 NRSA63J-221X MG RESISTOR...
  • Page 62 VS-DT2000R Electrical parts list (Front board) Block No. 02 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area C 801 NEA70JM-107X E CAPACITOR R 876 NRSA63J-122X MG RESISTOR C 802 NCB31HK-103X C CAPACITOR R 877...
  • Page 63 VS-DT2000R Electrical parts list (Sub woofer board) Block No. 03 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area CN211 QGB2016J1-15 CONNECTOR TO WOOF.PWB C2912 QEZ0223-478 E CAPACITOR 4700MF CN221 QGB2016K1-15 CONNECTOR TO CONT.PWB C2914...
  • Page 64 VS-DT2000R Electrical parts list (Sub woofer board) Block No. 03 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area R2103 QRE141J-563Y C RESISTOR 56K 5% 1/4W R2507 QRE141J-222Y C RESISTOR 2.2K 5% 1/4W R2104 QRE141J-563Y...
  • Page 65 VS-DT2000R Electrical parts list (CD servo board) Block No. 04 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area C 254 QERF1AM-476Z E CAPACITOR 47MF 20% 10V IC601 AN22000A-W RF AMP C 255 NCB31CK-104X C CAPACITOR...
  • Page 66 VS-DT2000R Block No. 04 Electrical parts list (CD servo board) Item Parts number Parts name Remarks Area R 669 NRSA63J-562X MG RESISTOR R 671 NRSA63J-684X MG RESISTOR R 675 NRSA63J-100X MG RESISTOR R 681 NRSA63J-0R0X MG RESISTOR R 682 NRSA63J-102X...

  • Page 67: Packing Materials And Accessories Parts List (Block No.m3,M5)

    VS-DT2000R Packing materials and accessories parts list Block No. Block No. A8,A9 A6,A7 A1~A5 A12,A15 P26 P22 3-21...

  • Page 68: Parts List

    VS-DT2000R Parts list (Packing) Block No. M3MM Item Parts number Parts name Q'ty Description Area GV30352-002A CARTON BOX CUSHION(L) GV10099-001A GV10099-002A CUSHION(R) GV30255-002A CARTON SPACER 1 ADJUST SPK+SET GV30358-001A CARTON SPACER(E 1 ADJUST SPK+SET CARTON SHEET GV40349-001A LV33489-005A CARTON SHEET...
  • Page 69 VS-DT2000R Parts list (Accessories) Block No. M5MM Item Description Parts number Parts name Q'ty Area INST BOOK 1 ENG LVT0854-009A LVT0854-010A INST.BOOK 1 ENG,FRE,DUT INST.BOOK 1 SWE,FIN,DAN,GER, LVT0854-011A FRE,SPA,ITA LVT0854-012A INST.BOOK 1 CZE POL HUN RUS GV40352-001A PAPER PATTERN B,E,EN...

This manual is also suitable for:

Sp-vsdt2000Sp-pw2000Vs-dt2000
