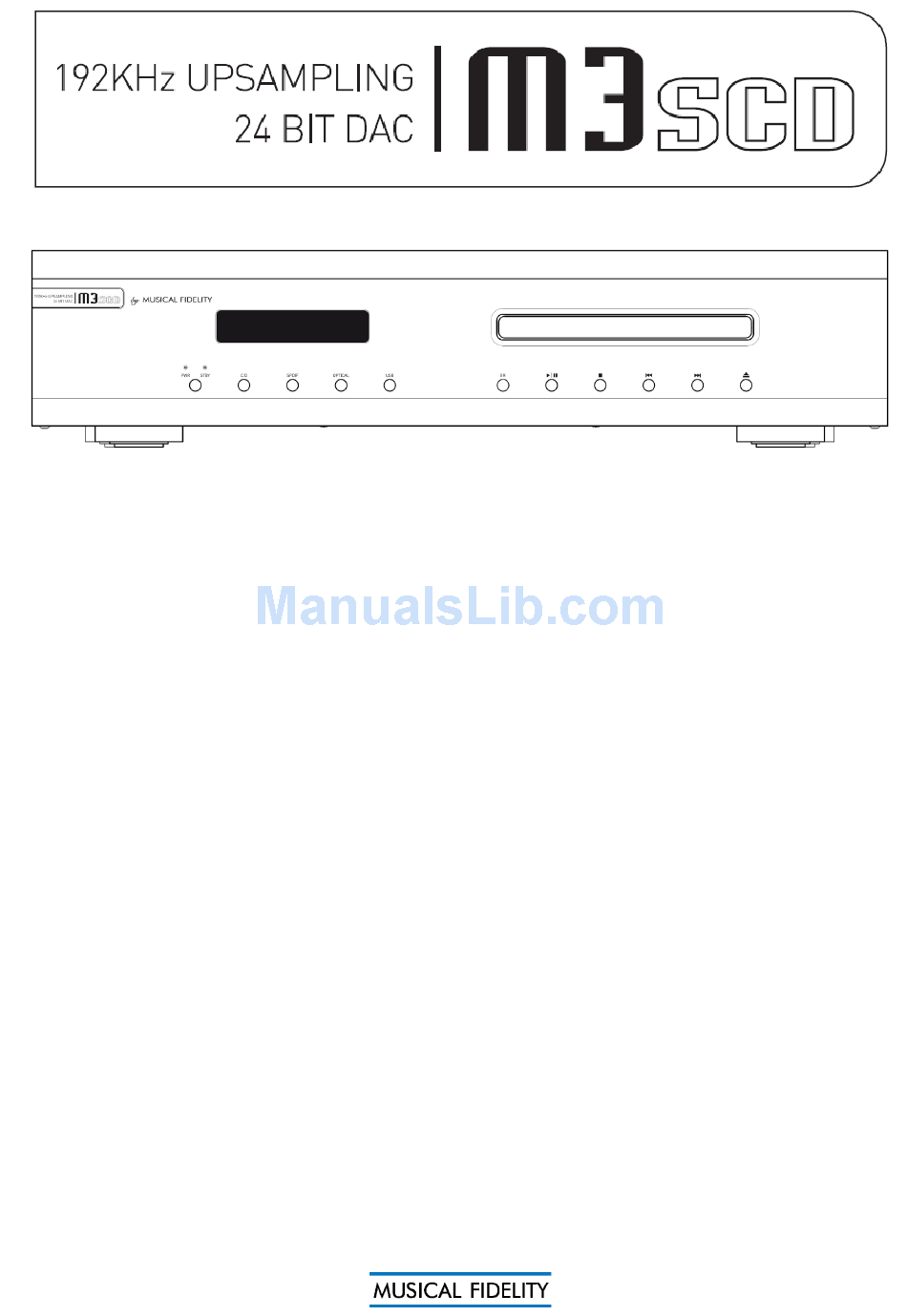

Instructions for use

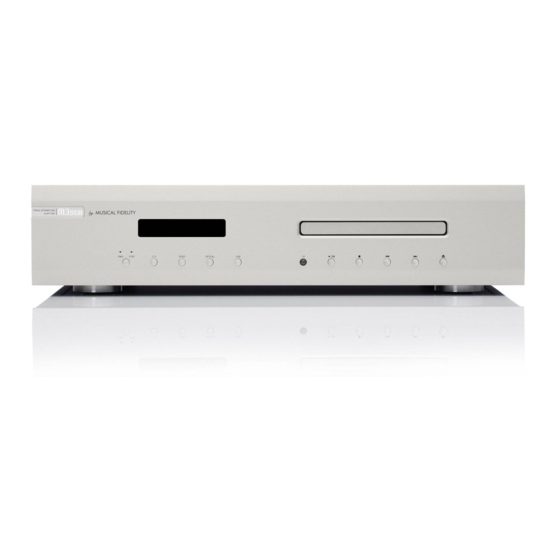

Thank you for purchasing the Musical Fidelity M3SCD player.
The M3SCD consists of a top quality CD mechanism with unsurpassed playability. The M3SCD includes digital
inputs to allow external digital audio sources such as TV, DAB tuners, computer, etc., to also benefit from its internal
high quality DAC circuits. All connections thus use a top quality over sampling 24 bit 192 kHz up sampling digital-to-
analogue converter. The up sampling action moves the digital artefacts to well outside the audio band, allowing easy
removal without detriment to the top end of the audio band. Our well tuned filtering circuit gives immeasurably small
jitter, noise and distortion artefacts allowing astounding imaging, detail and transparency, to deliver all music types
exactly as the artist originally intended.
The M3SCD is designed to be partnered with present and future M3/M3s and M6/M6s series products. This
combination yields one of the best high-fidelity systems available at any price.
Used properly and carefully, it should give many years of outstanding musical reproduction.
Dust regularly with a soft duster or soft brush, but be careful when using cleaning or polishing agents - they may
harm the surface finish.
If there are any questions about the audio system, please consult the dealer who is there to help and advise.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M3SCD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Musical Fidelity M3SCD

  • Page 1 The M3SCD is designed to be partnered with present and future M3/M3s and M6/M6s series products. This combination yields one of the best high-fidelity systems available at any price.
  • Page 2: M3Scd Issue

    M3SCD issue 1 Page 2 of 20...
  • Page 3: Table Of Contents

    – Display Digital inputs – SPDIF input – OPTICAL input USB input – PC users – MAC users Problems? – Basic fault finding Specifications – Disposal information – EU disposal information Manual history M3SCD issue 1 Page 3 of 20...
  • Page 4: Safety Information

    CLASS 1 LASER PRODUCT The M3SCD is a CD player which has been designed and manufactured according to FDA regulations "title 21, CFR, chapter 1, sub-chapter J, based on the Radiation Control for Health and Safety Act of 1968", and is classified as a Class 1 laser product.
  • Page 5 • If connecting to a BS1363 plug, a 13 amp fuse must be used. WARNING: MODIFICATIONS THIS PRODUCT EXPRESSLY APPROVED BY MUSICAL FIDELITY WHO IS THE PARTY RESPONSIBLE STANDARDS COMPLIANCE COULD VOID USER'S AUTHORITY TO OPERATE THIS EQUIPMENT. M3SCD issue 1...
  • Page 6: General Advice

    Heed all warnings shown on the back of the product. • Only connect the M3SCD to a mains outlet having the same voltage as marked at the back of the unit. • Always ensure that when disconnecting and reconnecting your audio equipment the mains supply is switched off.
  • Page 7: Installation

    Power Connections The M3SCD is supplied with a standard IEC mains cable which plugs into the IEC socket at the back of the unit Audio Connections RCA line outputs: Use good quality well shielded RCA phono audio cables (fully connected signal and ground), for optimum signal transfer.
  • Page 8: Facilities And Connections

    14 RCA line outputs 19 USB input 15 SP/DIF COAXIAL & OPTICAL digital 20 IEC mains input outputs 16 SP/DIF COAXIAL & OPTICAL digital inputs 17 TRIGGER input jack 18 TRIGGER output jack M3SCD issue 1 Page 8 of 20...
  • Page 9: Remote Control Handset

    CD – Sets CD player in normal CD CD inputs section (Grey buttons) player mode SPDIF – Selects CD player SPDIF USB – Selects CD player USB input input OPTICAL 1 – Selects CD player OPTICAL input M3SCD issue 1 Page 9 of 20...
  • Page 10: Operation

    Note: If the CD is ejected but not removed, it will be retracted back into the mechanism for safety after a few seconds. After the contents have been scanned, the CD is ready to be played or ejected again. M3SCD issue 1 Page 10 of 20...
  • Page 11: Track Selection

    ◄◄ ► to normal playing speed. 0:05 To speed up the search, press again. Pressing a third time or reverts to normal playing speed. ◄◄ ◄◄ ► ((( ((( 0:15 M3SCD issue 1 Page 11 of 20...
  • Page 12: Repeat Playback

    Tracks are also played in a different order each time the disc is restarted, or another disc loaded. This function is obtained by pressing SHUFFLE on the remote control with the unit either stopped or playing. If the M3SCD is already playing, play will continue in random order until all tracks on the disc have been played.
  • Page 13: Scan

    ►|▐▐ ► Press INTRO again to cancel introduction search mode. If INTRO mode is cancelled while the M3SCD is still playing, the remainder of the entire disc will be played. PROGRAMMED PLAY The built-in program memory allows you to store up to 30 track numbers and then play them back in the held order.
  • Page 14: Time

    Never open the case of the unit yourself, as this will invalidate the guarantee. If none of the above actions affect a cure, please contact your dealer or Musical Fidelity service agent. M3SCD issue 1...
  • Page 15: Digital Inputs

    88.2, 96, 176.4 and 192 kHz sample rates on its COAX input and up to 96 kHz on its optical and USB inputs, all inputs up to and including 24 bits. M3SCD issue 1 Page 15 of 20...
  • Page 16: Usb Input

    DAC. This device has been designed to work with Windows® 98, ME, 2000, XP, Vista, 7 and 8, Linux and Apple® OS The computer drivers for the USB input of the M3SCD should install automatically. To check correct installation follow these steps:...
  • Page 17 Please check device is listed in device manager (Windows®) or in Sound, audio devices for MAC OS X. Make sure the Musical Fidelity USB audio device is selected as the default OUTPUT device. Check USB port functions with another device.
  • Page 18: Specifications

    IEC type mains lead (10-Amp type) M3s remote control Batteries, LR03 or AAA, manganese alkaline type - 2 off Musical Fidelity reserves the right to make improvements which may result in specification or feature changes without notice. M3SCD issue 1...
  • Page 19: Item Disposal Information

    ΠΡΟΣ ΑΠΟΦΥΓΗ ΕΝ∆ΕΧΟΜΕΝΗΣ ΕΠΙΒΑΡΥΝΣΗΣ ΤΟΥ ΠΕΡΙΒΑΛΛΟΝΤΟΣ, ΞΕΧΩΡΙΣΤΕ ΤΟ ΠΡΟΙΟΝ ΑΠΟ ΤΑ ΑΛΛΑ ΑΠΟΡΡΙΜΑΤΑ ΩΣΤΕ ΝΑ ΕΞΑΣΦΑΛΙΣΘΕΙ Η ΑΝΑΚΥΚΛΩΣΗ ΤΟΥ ΜΕ ΤΟΝ ΠΡΕΠΟΝΤΑ ΤΡΟΠΟ. ΠΑΡΑΚΑΛΟΥΜΕ ΝΑ ΕΠΙΚΟΙΝΩΝΗΣΕΤΕ ΜΕ ΤΗΝ ΤΟΠΙΚΗ ΥΠΗΡΕΣΙΑ ΑΝΑΚΥΚΛΩΣΗΣ Η ΜΕ ΤΟ ΚΑΤΑΣΤΗΜΑ ΑΓΟΡΑΣ ΓΙΑ ΠΕΡΙΣΣΟΤΕΡΕΣ ΛΕΠΤΟΜΕΡΕΙΕΣ. M3SCD issue 1 Page 19 of 20...
  • Page 20: Manual History

    MANUAL HISTORY RELEASE DATE CHANGES M3SCD issue 1 11th September 2014 issue M3SCD issue 1 Page 20 of 20...
