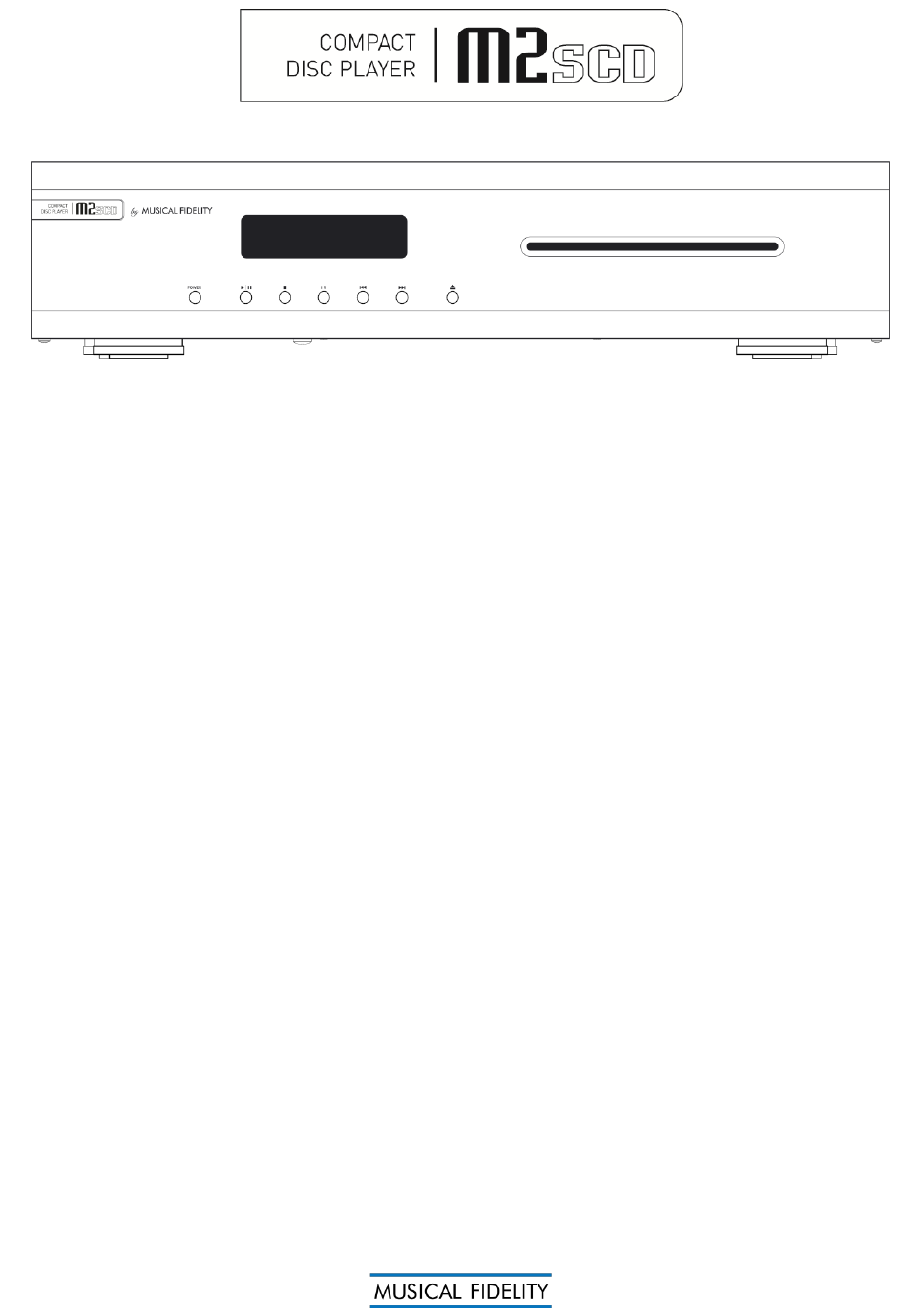

Instructions for use

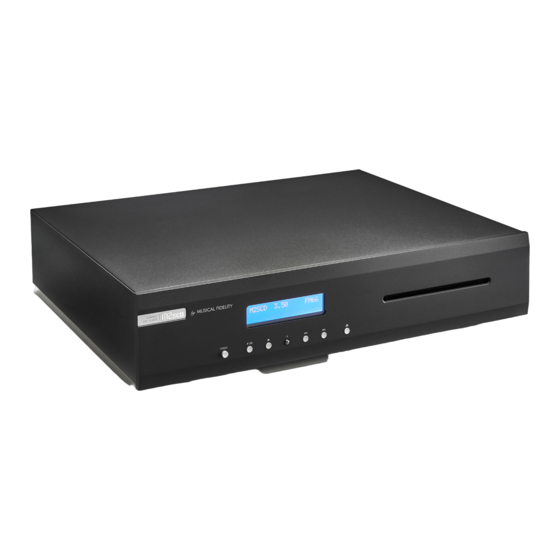

Thank you for purchasing the Musical Fidelity M2SCD player.
The M2SCD consists of a top quality CD slot-loading mechanism with unsurpassed playability and a top quality over
sampling 24 bit digital-to-analogue converter. This moves the digital artefacts to well outside the audio band, allowing
easy removal without detriment to the top end of the audio band. Our well tuned filtering circuit gives immeasurably
small jitter, noise and distortion artefacts allowing astounding imaging, detail and transparency, to deliver all music
types exactly as the artist originally intended.
The M2SCD is designed to be partnered with present M2si and future M3 and M6 series products. This combination
yields one of the best high-fidelity systems available at any price.
Used properly and carefully, it should give many years of outstanding musical reproduction.
Dust regularly with a soft duster or soft brush, but be careful when using cleaning or polishing agents - they may
harm the surface finish.
If there are any questions about the audio system, please consult the dealer who is there to help and advise.
Advertisement
Related Manuals for Musical Fidelity M2SCD
Summary of Contents for Musical Fidelity M2SCD
- Page 1 The M2SCD is designed to be partnered with present M2si and future M3 and M6 series products. This combination yields one of the best high-fidelity systems available at any price.
- Page 2 CONTENTS Section Page – Safety Information Laser information and warnings – Mains plug (UK only), modification warning – General advice Installation precautions – Disposal information EU disposal information – Installation Introduction, cleaning, installation, power connections, audio connections, digital connections – Facilities and connections Illustrations - main unit front &...
- Page 3 CLASS 1 LASER PRODUCT The M2SCD is a CD player which has been designed and manufactured according to FDA regulations "title 21, CFR, chapter 1, sub-chapter J, based on the Radiation Control for Health and Safety Act of 1968", and is classified as a Class 1 laser product.
- Page 4 USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE CAUSING EYE INJURY. IF THIS PRODUCT DEVELOPS A FAULT, PLEASE CONTACT YOUR AUTHORISED MUSICAL FIDELITY SERVICE AGENT. DO NOT ATTEMPT TO SERVICE IT YOUR-SELF AND DO NOT CONTINUE TO USE THIS PRODUCT IN A FAULTY STATE.
- Page 5 • If connecting to a BS1363 plug, a 13 amp fuse must be used. WARNING: MODIFICATIONS THIS PRODUCT EXPRESSLY APPROVED BY MUSICAL FIDELITY WHO IS THE PARTY RESPONSIBLE STANDARDS COMPLIANCE COULD VOID USER'S AUTHORITY TO OPERATE THIS EQUIPMENT. Page 5 of 18...
- Page 6 Heed all warnings shown on the back of the product. • Only connect the M2SCD to a mains outlet having the same voltage as marked at the back of the unit. • Always ensure that when disconnecting and reconnecting your audio equipment the mains supply is switched off.
- Page 7 ITEM DISPOSAL INFORMATION DISPOSAL The crossed out wheeled bin label that appears on the back panel of the product indicates that the product must not be disposed of as normal household waste. To prevent possible harm to the environment please separate the product from other waste to ensure that it can be recycled in an environmentally safe manner.
- Page 8 Power Connections The M2SCD is supplied with a standard IEC mains cable which plugs into the IEC socket at the back of the unit Audio Connections RCA audio outputs: Use good quality RCA phono audio cables (fully connected signal and ground), for optimum signal transfer.
- Page 9 FACILITIES & CONNECTIONS ▐◄◄ POWER Mains ON/OFF button - Track back button DISPLAY ►►▌ - Track forward button ►|▐▐ - PLAY/PAUSE button ▲ - EJECT button █ - STOP button CD SLOT IR RECEIVER lens 10 COAXIAL & OPTICAL digital outputs 12 IEC MAINS INPUT 11 RCA OUTPUTS right and left Page 9 of 18...
- Page 10 REMOTE CONTROL HANDSET The universal remote control shown below enables functions from this and related units to be operated from a convenient distance. Equivalent buttons on the remote control have the same functions as those on the front panel of the unit. Other functions are only available by remote control.
- Page 11 OPERATION LOADING AND PLAYING COMPACT DISCS Switch on unit. To load a CD gently introduce the CD into the slot in the front panel. The mechanism will sense the presence of the CD and draw it in automatically. There is no need to use any force, if a CD does not go in, please check there is no CD already in the unit, then refer to the troubleshooting section P.15.
- Page 12 OPERATION TRACK SELECTION |◄◄ ►►| To change track, the track skip buttons ►►| on the front panel can be pressed to jump forwards or |◄◄ backwards one track in either direction. Corresponding TRACK buttons on the remote control are marked ►►| |◄◄...
- Page 13 Tracks are also played in a different order each time the disc is restarted, or another disc loaded. This function is obtained by pressing SHUFFLE on the remote control with the unit either stopped or playing. If the M2SCD is already playing, play will continue in random order until all tracks on the disc have been played.
- Page 14 ► on the remote control. Press INTRO again to cancel introduction search mode. If INTRO mode is cancelled while the M2SCD is still playing, the remainder of the entire disc will be played. PROGRAMMED PLAY The built-in program memory allows you to store up to 30 track numbers and then play them back in the held order.
- Page 15 OPERATION If at any time you wish to add a track to the list, press the CLEAR button to obtain the next step number. Alternatively, to delete a previous entry, press CLEAR a second time to remove the last entry. Repeated pressing of CLEAR will then erase each step in reverse order.
- Page 16 Never open the case of the unit yourself, as this will invalidate the guarantee. If none of the above actions affect a cure, please contact your dealer or Musical Fidelity service agent.
- Page 17 IEC type mains lead (10-Amp type) M2 remote control Batteries, LR03 or AAA, manganese alkaline type - 2 off Musical Fidelity reserves the right to make improvements which may result in specification or feature changes without notice. Page 17 of 18...
- Page 18 MANUAL HISTORY Page 18 of 18...
