X-RAY V
3
UPSAMPLING 24 BIT COMPACT DISC PLAYER
POWER
OPEN•CLOSE
INSTRUCTIONS FOR USE

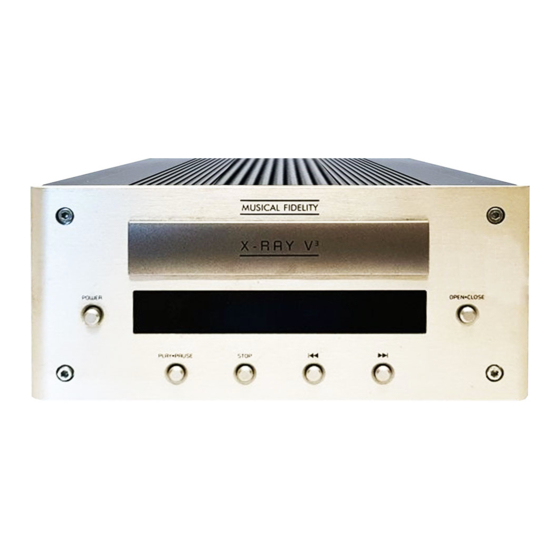

Thank you for purchasing the Musical Fidelity X-RAY Version 3,
24 bit CD Player.
Used properly and carefully, it should give many years of outstanding
musical reproduction.
This model uses the latest 24 Bit DAC technology and jitter reduction
techniques to achieve both an excellent technical specification and
unparalleled sound quality.
3
Aesthetically, the X-RAY V
is a perfect match for the
X-PLORA tuner and either X-150 or X-80 Integrated amplifier.
Together these components form one of the finest hi-fi systems available.
Dust regularly with a soft duster or soft brush, but be careful when using
cleaning or polishing agents - they may harm the surface finish.
If you have any questions about your audio system,
please consult your dealer who is there to help and advise.
X-RAY V
3
Instructions for Use Page 1 of 16
Issue 2: March 2004
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Musical Fidelity X-RAY V3
Summary of Contents for Musical Fidelity X-RAY V3
- Page 1 UPSAMPLING 24 BIT COMPACT DISC PLAYER POWER OPEN•CLOSE INSTRUCTIONS FOR USE Thank you for purchasing the Musical Fidelity X-RAY Version 3, 24 bit CD Player. Used properly and carefully, it should give many years of outstanding musical reproduction. This model uses the latest 24 Bit DAC technology and jitter reduction techniques to achieve both an excellent technical specification and unparalleled sound quality.
-
Page 2: Table Of Contents
PAGE Safety Information: Safety Information: User Information: General Advice: General Advice: Facilities and Connections: Remote Control: Basic Operation: Basic Operation: (continued) Special Features: Special Features: (continued) Special Features : (continued) Problems ? Specifications X-RAY V Issue 2: March 2004 CONTENTS Mains plug (U.K. -
Page 3: Safety Information
If connecting to a BS1363 plug, a 13 amp fuse must be used. WARNING: ANY MODIFICATIONS TO THIS PRODUCT NOT EXPRESSLY APPROVED BY MUSICAL FIDELITY WHO IS THE PARTY RESPONSIBLE FOR STANDARDS COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THIS EQUIPMENT. -
Page 4: Safety Information
CLASS 1 LASER PRODUCT This CD player has been designed and manufactured according to FDA regulations "title 21, CFR, chapter 1, sub- chapter J, based on the Radiation Control for Health and Safety Act of 1968", and is classified as a Class 1 laser product. -
Page 5: User Information
However, if interference is experienced, for instance to radio or TV broadcasts, the user is rec- ommended to try one or more of the following measures: • Identify the source of interference by turning off power to the CD player or other equipment individually, and checking whether the problem disappears. -
Page 6: General Advice
Do not remove any covers or try to gain access to the inside. There are no internal adjustments or fuses you can replace yourself. Refer all service work to an authorised Musical Fidelity agent. Note : Unauthorised opening of the equipment will invalidate any warranty claim. -
Page 7: General Advice
RCA/phono type plugs. These link the left and right AUDIO OUTPUT sockets on the rear panel of the CD player to the CD or auxiliary input sockets on the amplifier. Do not use any sockets on the amplifier intended for “vinyl”... -
Page 8: Facilities And Connections
LASER PRODUCT DIGITAL OUTPUT - optical Issue 2: March 2004 FRONT PANEL 5 Next track selector 6 CD player display (incorporates infra-red remote control receiver) 7 OPEN / CLOSE to open and close the CD drawer 8 CD transport loading drawer... -
Page 9: Remote Control
Remote control buttons shown below enable CD player functions to be operated from a conven- ient distance. Remaining buttons on this universal handset are for use with other Musical Fidelity products, and have no effect on the X-RAY V Except for separate PAUSE and PLAY (see page 10), equivalent buttons on the remote control have the same functions as those on the front panel of the unit. -
Page 10: Basic Operation
PLAY/PAUSE button to close the transport drawer again. If OPEN/CLOSE has been pressed, the disc drawer closes and the CD player scans the contents of the disc. After a short delay, the display window then shows the total number of tracks available on the CD, and total playing time. -
Page 11: Continued
TRACK SELECTION To change track, the track skip buttons >>| and |<< can be pressed to jump forwards or backwards one track in either direction. Corresponding TRACK buttons on the remote control have the same markings. If the unit has stopped playing, a specific track can be accessed directly by pressing either >>| or |<<... -
Page 12: Special Features
REPEAT PLAYBACK The REPEAT button on the remote control allows the repeated playback of either one track or all tracks on the disc. By pressing the REPEAT button once, only the current track is repeated, and the display shows “repeat track”. If the REPEAT button is pressed a second time, “repeat disc”... -
Page 13: Special Features
SCAN INTRODUCTION The scan-introduction function allows play back of just the start of each track on the disc, for instance to locate a preferred track by ear. Press INTRO on the remote control, and if the player has stopped, the display will show : The first ten seconds (approximately) of each track on the CD can then be played in... -
Page 14: Special Features
|<< button to obtain the previous track in the sequence. When all programmed tracks have been played, the CD player stops. The same track selection can then be played again by pressing the PLAY/PAUSE button on the front panel, or PLAY on the remote control. -
Page 15: Problems
Never open the case of the X-RAY V yourself, as this will invalidate the guarantee. If none of the above actions effect a cure, please contact your dealer or Musical Fidelity service agent. Issue 2: March 2004 Probable Cause... -
Page 16: Specifications
Digital outputs Power requirements Dimensions (approximate) Weight Standard accessories Musical Fidelity reserves the right to make improvements which may result in specification or feature changes without notice. Issue 2: March 2004 SPECIFICATIONS : 24 bit Delta-Sigma (Bitstream) Dual differential 8x oversampling...
