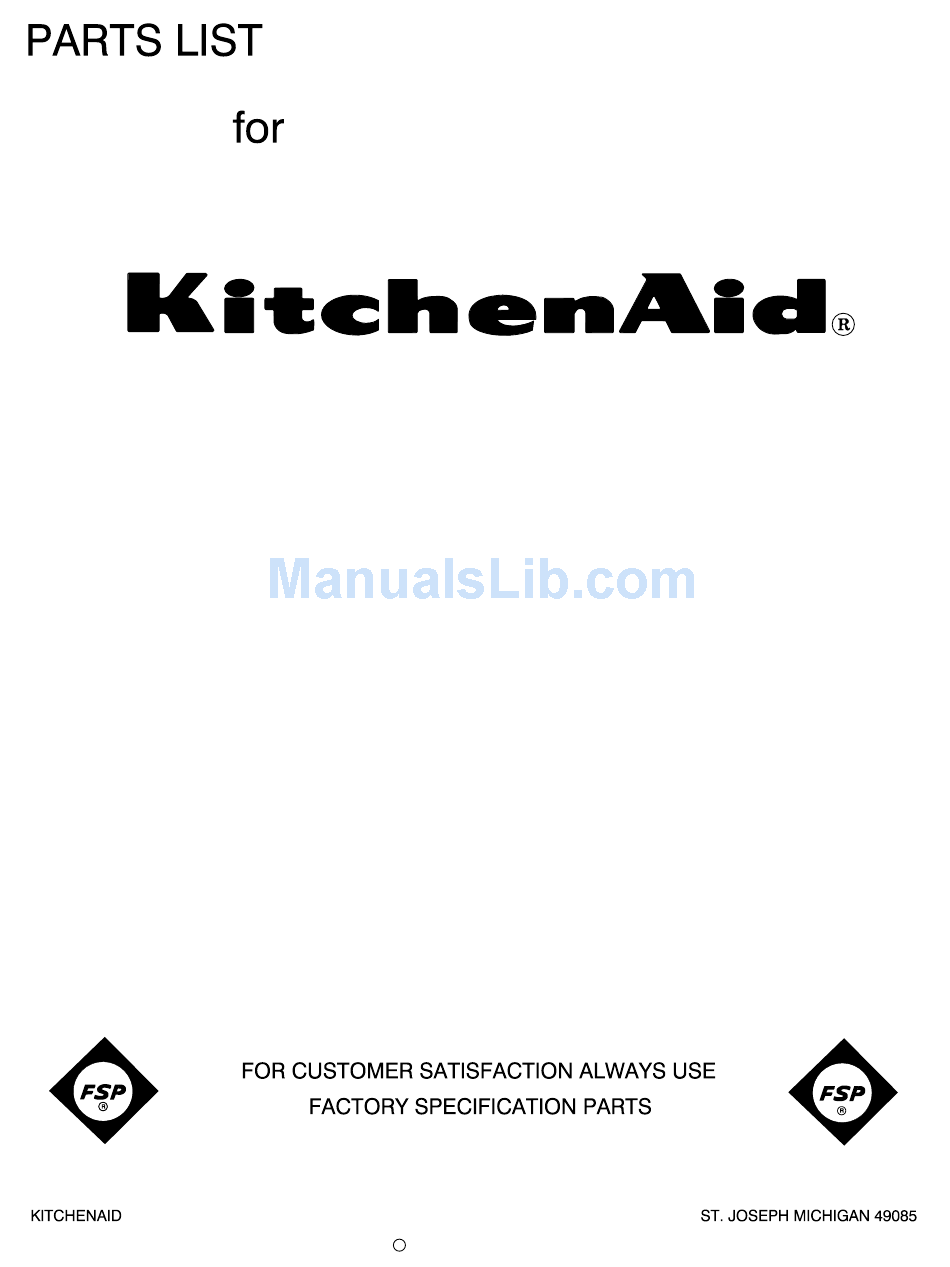

- Page 1 HOT WATER DISPENSER MODEL KHWC160PCR0 CR − Chrome SS − Stainless Steel 2005 KITCHENAID Part No. 8211564 Rev. A 5−05 Litho in U.S.A. (ebk)
- Page 2 OUTER COVER & INSULATION PARTS For Models: KHWC160PCR0, KHWC160PSS0 (Chrome) (Stainless Steel) 8211564...
- Page 3 OUTER COVER & INSULATION PARTS For Models: KHWC160PCR0, KHWC160PSS0 (Chrome) Illus. Part 8538287 Instructions, 3192031 End Cap 4169569 Screw, Drive 3192294 Screw, Machine 4159493 Lockwasher 3191431 Strain Releif, 3193265 Shell 8534011 Bushing, Molded 3192006 Displacer 3192011 Insulation, Top 3192012 Insulation, Bottom...
- Page 4 UPPER & LOWER TANK SHELL For Models: KHWC160PCR0, KHWC160PSS0 (Chrome) (Stainless Steel) 8211564...
- Page 5 UPPER & LOWER TANK SHELL For Models: KHWC160PCR0, KHWC160PSS0 (Chrome) Illus. Part DESCRIPTION 3192080 Ground Wire 4159072 Nut 3400829 Screw 3193068 Shell, Tank Upper 4159825 O−Ring 3191376 Element, Heating 4159824 O−Ring 4176126 Deflector 8565547 Shell, Tank Lower 3193512 Thermostat 4159493 Lockwasher...
- Page 6 8211564 SPOUT UNIT PARTS For Models: KHWC160PCR0, KHWC160PSS0 (Chrome) (Stainless Steel) Illus. Part DESCRIPTION Knob 8557945 Chrome 8557946 Stainless 8557546 Spring, Compression 8557544 Cam 8557545 Cam, Follower 8557791 Mechanical Valve 8558434 Tube 3193219 Elbow, Faucet 3191383 Water Union 3191385 Cover, Collet...
