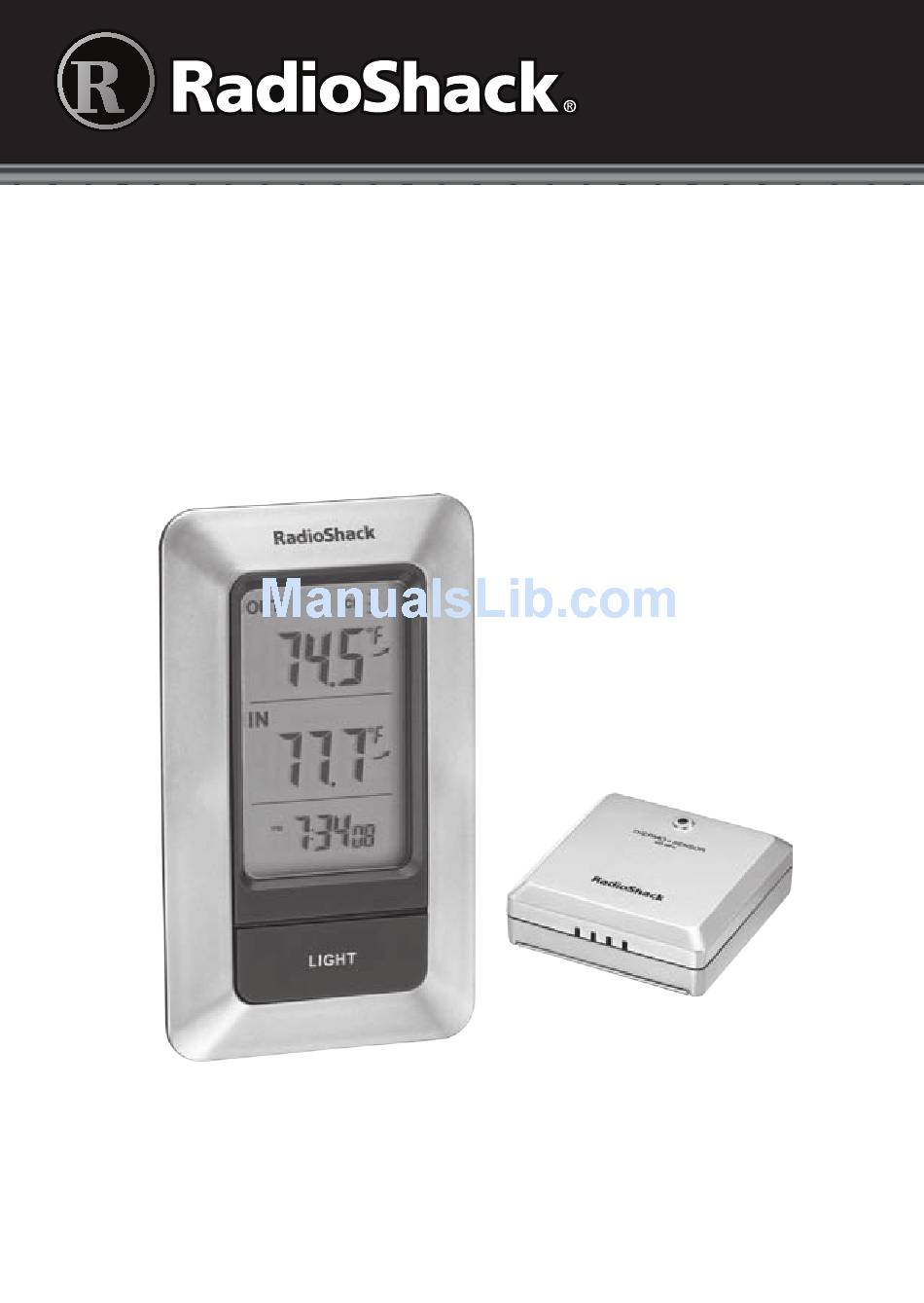

- Page 1 User’s Guide 6300769 Indoor/Outdoor Wireless Thermometer Thank you for purchasing your Wireless Thermometer from RadioShack. Please read this user’s guide before installing, setting up, and using your new thermometer.
-
Page 2: Package Contents
Package Contents • Thermometer • Screws (2) • Remote Sensor • User’s Guide Features • Transmits wirelessly up to 98 feet (30 meters) • Stores minimum and maximum indoor/outdoor temperature readings • Wall mounts for both the thermometer and the sensor • Works with up to three sensors (additional sensors not included) Important Installation and Location Notes • During initial installation, the thermometer and sensors may take up to an hour or more to acclimate to current conditions. • Place the thermometer in a well-ventilated indoor area located away from vents, heating or cooling elements, direct sunlight, windows, doors, or any other openings. • Place the sensor on a flat indoor or outdoor surface away from direct sunlight and moisture. Make sure the thermometer and sensor are within 98 feet (30m) of each other, without obstructions between them. To avoid interference, place the thermometer and sensor away from other electronic devices. • If the sensor is placed outdoor, the sensor should be mounted high enough off the ground where water, snow, and rain cannot accumulate and also high enough where it is out of reach... -
Page 3: Install Batteries
Install Batteries 1. Insert two AAA batteries (not included) into the sensor and two AAA batteries (not included) into the thermometer, matching the polarity symbols (+ and –) marked inside each battery compartment. RESET 2. Press RESET on both units. CHANNEL 1 2 3 RESET Battery Notes: • Reset your thermometer after replacing the batteries or if the system malfunctions. When you press RESET, all settings will return to default value, and all stored information will be lost. • When the low battery icon appears or the display dims, replace the batteries. - Page 4 Outdoor Temperature with Temperature Trend Display (Current, MAX, and MIN) Indoor Temperature with Temperature Trend Display (Current, MAX, and MIN) Clock Press to turn on the backlight for 7 seconds.
- Page 5 UP/°C/°F • Change between Celsius and Fahrenheit • Adjust the clock. MAX/MIN • Press to display current, maximum, and minimum temperature. • Press and hold to clear maximum and minimum records when MAX or MIN appears. CHANNEL • Press and hold to search the sensors. • Select sensor. MODE Press and hold for 3 seconds to enter clock setting mode. DOWN Adjust the clock.
- Page 6 Set the Thermometer and the Sensor 1. If you are using more than one sensor (up to three), choose a different channel for each sensor. Slide CHANNEL 1 2 3 to choose a channel. Press TX once after switching channel. 2. Place the sensor near the thermometer. 3. Press and hold CHANNEL to search for the sensors. Icon Description The thermometer is searching for a sensor. A sensor channel has been found. The sensor channel cannot be found. Use the Thermometer 1. Press CHANNEL to display the three different sensor channels. 2. Select the temperature format by pressing the UP/°C/°F. 3. Press MAX/MIN to select current, maximum, and minimum temperatures. 4. When MAX or MIN appears, press and hold MAX/MIN to clear all records.
-
Page 7: Set The Clock
Temperature Trend Rising Steady Falling Set the Clock 1. Press and hold MODE until the hour digits of the clock flash. 2. Press UP/°C/°F or DOWN repeatedly to adjust settings; press MODE to confirm and go to the next setting. • The setting order is hour, minute, 12/24 hour format. • When you select the 12-hour format, PM appears. Hints and Tips If the thermometer does not connect to the sensor, the following actions may establish the connection: • Press TX on the sensor and then press and hold CHANNEL. • Relocate the sensor and/or the thermometer until connection is found. • The sensor may not function properly in extreme temperatures that affect battery power. Replace the batteries. The unit will resume proper function in more moderate weather. -
Page 8: Care And Maintenance
Care and Maintenance • Handle the thermometer and sensor carefully. Do not drop them. • Keep the thermometer dry. If it gets wet, wipe it dry immediately. • Never submerge the product in water. This can cause electrical shock and damage the product. • Do not subject the thermometer to extreme force, shock, or fluctuations in temperature or humidity. • Do not tamper with internal components. Specifications Indoor Temperature Range ......32 – 122°F (0 – 50°C) Outdoor Temperature Range ....-4 – 122°F (–20 – 50°C) Temperature compensation range ..14 – 140°F (-10°C – 60°C) Sensor RF Frequency ............433 MHz Channel Number ................3 Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no... -
Page 9: Limited Warranty
• Consult your local RadioShack store or an experienced radio/TV technician for help. If you cannot eliminate the interference, the FCC requires that you stop using your equipment. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Product Indoor/Outdoor Wireless Thermometer Model 6300769 RadioShack Responsible 300 RadioShack Circle, Party Fort Worth, TX 76102 Phone 817-415-3200 Limited Warranty RadioShack warrants this product against defects in materials and workmanship under normal use by the original purchaser for one (1) year after the date of purchase from a RadioShack-owned store or an authorized RadioShack franchisee or dealer. RADIOSHACK MAKES NO OTHER EXPRESS WARRANTIES. This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current; (b) improper or incorrectly performed repairs by persons who are not a RadioShack Authorized Service Facility; (c) consumables such as fuses or batteries; (d) ordinary wear and tear or cosmetic damage; (e) transportation, shipping or insurance costs; (f) costs of product removal, installation, set-up service, adjustment or reinstallation; and (g) claims by persons other than the original purchaser. Should a problem occur that is covered by this warranty, take the product and the RadioShack sales receipt as proof of purchase date to any RadioShack store in the U.S. RadioShack will, at its option, unless otherwise provided by law: (a) repair... - Page 10 RADIOSHACK EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDITIONS NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND, IF APPLICABLE, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, SHALL EXPIRE ON THE EXPIRATION OF THE STATED WARRANTY PERIOD. EXCEPT AS DESCRIBED ABOVE, RADIOSHACK SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO THE PURCHASER OF THE PRODUCT OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE AND ANY LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT AND ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RADIOSHACK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. You may contact RadioShack at: RadioShack Customer Relations, 300 RadioShack Circle, Fort Worth, TX 76102 04/08 www.RadioShack.com Complies with the European Union’s “Restriction of Hazardous Substances Directive,” which protects the environment by restricting specific hazardous materials and products. ©2013. RadioShack Corporation. All rights reserved. RadioShack is a registered Printed 05A13 trademark used by RadioShack Corporation. in China 6300769...
