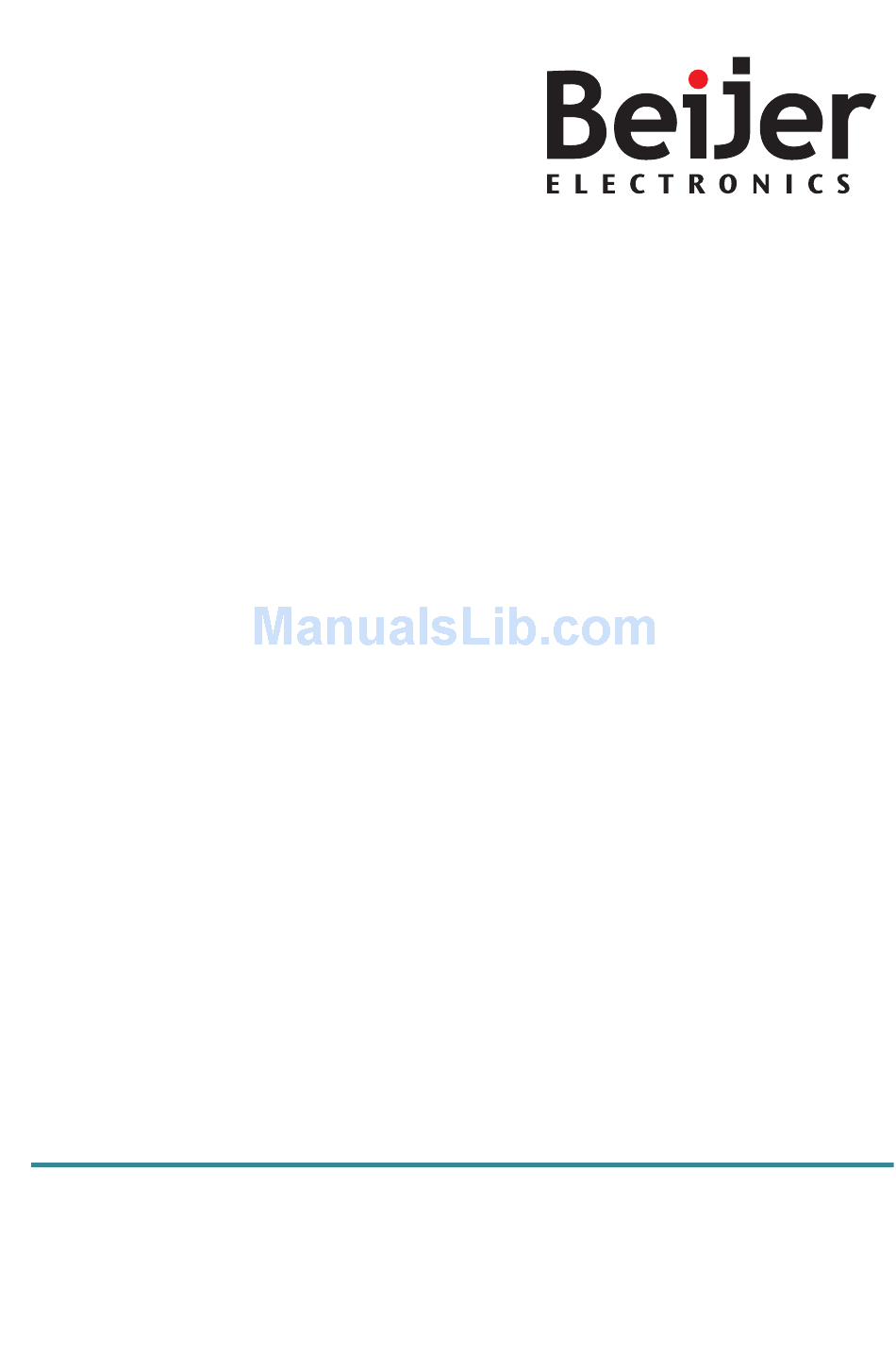

- Page 1 DT150 Installation Manual English MAEN844A 2007-02...
- Page 2 The information in this document is subject to change without notice and is provided as available at the time of printing. Beijer Electronics AB reserves the right to change any information without updating this publica- tion. Beijer Electronics AB assumes no responsibility for any errors that may appear in this document.
-
Page 3: Table Of Contents
Operation Messages ..............14 Video Input Timing..............15 Audio Support ................15 Calibrate the Touch Screen ............15 4 Chemical Resistance ................17 Metal Casing................17 Touch Screen and Overlay ............18 5 Drawings ....................23 DT150 Outline ................. 23 Beijer Electronics, MAEN844A... - Page 4 Contents Beijer Electronics, MAEN844A...
-
Page 5: Safety Precautions
– The supplier neither guarantees that the monitor is suitable for your particu- lar application, nor assumes responsibility for your product design, installa- tion or operation. Beijer Electronics, MAEN844A... -
Page 6: During Use
– Clean the display and surrounding front cover with a soft cloth and mild de- tergent. Dismantling and Scrapping – The monitor or parts thereof shall be recycled according to local regulations. – The following components contain substances that might be hazardous to health and the environment: electrolytic capacitor and display. Beijer Electronics, MAEN844A... -
Page 7: Installation
Installation Installation Space Requirements Installation plate thickness: 1.5 - 9.0 mm (0.06 - 0.35 inch) Space requirements when installing DT150: 50 mm (2.0 inch) 304 mm (11.97 inch) 45 mm (1.77 inch) 25 mm 25 mm (1.0 inch) (1.0 inch) 50 mm (2.0 inch) - Page 8 2. Place the panel cut out where the monitor is to be situated, draw along the outer sides of the holes and cut according to the markings. 3. Secure the monitor in position, using all the fastening holes and the pro- vided brackets and screws: x 14 0.5 - 1.0 Nm Beijer Electronics, MAEN844A...
- Page 9 Monitor 115/230 V AC Ground connected power cord Industrial PC AC/DC Adaptor 12 V DC 5. Carefully remove the laminated film over the monitor display, to avoid static electricity that could damage the monitor. Beijer Electronics, MAEN844A...
- Page 10 Installation Beijer Electronics, MAEN844A...
-
Page 11: Technical Data
-20 ° to +70 °C Storage temperature Relative humidity 5 - 85% non-condensed The monitor conforms with the essential protection requirements of the directive 2004/108/EC. Noise tested according to EN61000-6-3 emission and EN61000-6-2 immunity. * See section 4 Chemical Resistance Beijer Electronics, MAEN844A... -
Page 12: The On Screen Display Menu
Opens the OSD menu and works as Select and Deselect button. Down Arrow Return or Exit in the OSD menu. Automatic display configuration Decrease/left key Audio decrease Increase/right key Audio increase VGA/DVI Source select (VGA or DVI) Power Turns on/off the monitor. Beijer Electronics, MAEN844A... - Page 13 Adjust sharpness of pictures in 5 levels Exit Exit to main menu Main Menu Sub Menu Function Function Auto Auto configuration of geometry. Adjust Clock and Phase are adjusted and position is centered Auto Color Automatic color adjustment Exit Exit to main menu Beijer Electronics, MAEN844A...
-
Page 14: Operation Messages
Self diagnostics (analog RGB mode): No input signal after power-on with power switch. The message will disappear after 10 seconds of activity of input signal. NO SUPPORT Out of Range: The input signal exceeds the supported range. Beijer Electronics, MAEN844A... -
Page 15: Video Input Timing
The industrial monitor has a built in touch screen. This is not operational when shipped from the supplier and must be installed. Instructions and drivers for in- stallation of the touch screen function are available at: www.hmi.beijerelectronics.com Beijer Electronics, MAEN844A... - Page 16 Technical Data Beijer Electronics, MAEN844A...
-
Page 17: Chemical Resistance
Ethanol 99.5% denaturalized Lactic acid 10% Urea saturated FAM-Normal petrol Sodium di-chromate Hydro peroxide 3% saturated Alcohol 95% Caustic soda 5% Acetic acid 10% Phosphoric acid 43% Sodium hypo chlorite Alu-cleaner solution Glycol Sodium carbonate 10% Industrial petrol Sodium chloride 20% Beijer Electronics, MAEN844A... -
Page 18: Touch Screen And Overlay
Dioctyl Phthalate Caustic soda <40% Paraffin oil Sodium carbonate Hydrogen peroxide <25% Blown castor oil Petrol Alkalicarbonate Silicone oil Teepol Bichromate Turpentine substitute Water Diesel oil Univeral brake fluid Sea water Acetonitrile Decon Sodium bisulphate Aviation fuel Beijer Electronics, MAEN844A... - Page 19 4.2.2 Touch Screen Surface The touch screen surface on the monitor withstands exposure to the following solvents without visible change: Solvents Time Acetone 10 minutes Isopropanol 10 minutes Toluene 5 hours Beijer Electronics, MAEN844A...
- Page 20 Chemical Resistance 4.2.3 Autoflex EB It is recommended to use the Autoflex EB touch display protection film, that can be ordered from Beijer Electronics. Solvent Resistance Autoflex EB withstands exposure of more than 24 hours duration under DIN 42 115 Part 2 to the following chemicals without visible change: Potassium ferrocyanide/ Sodium hypchlorite <20%...
- Page 21 Very slight discoloration was noted under critical viewing conditions with the following materials: Tomato juice Tomato ketchup Lemon juice Mustard Outdoor Use In common with all polyester based films Autoflex EB is not suitable for use in conditions of long term exposure to direct sunlight. Beijer Electronics, MAEN844A...
- Page 22 Chemical Resistance Beijer Electronics, MAEN844A...
-
Page 23: Drawings
Drawings Drawings DT150 Outline Beijer Electronics, MAEN844A... - Page 24 Drawings Beijer Electronics, MAEN844A...
