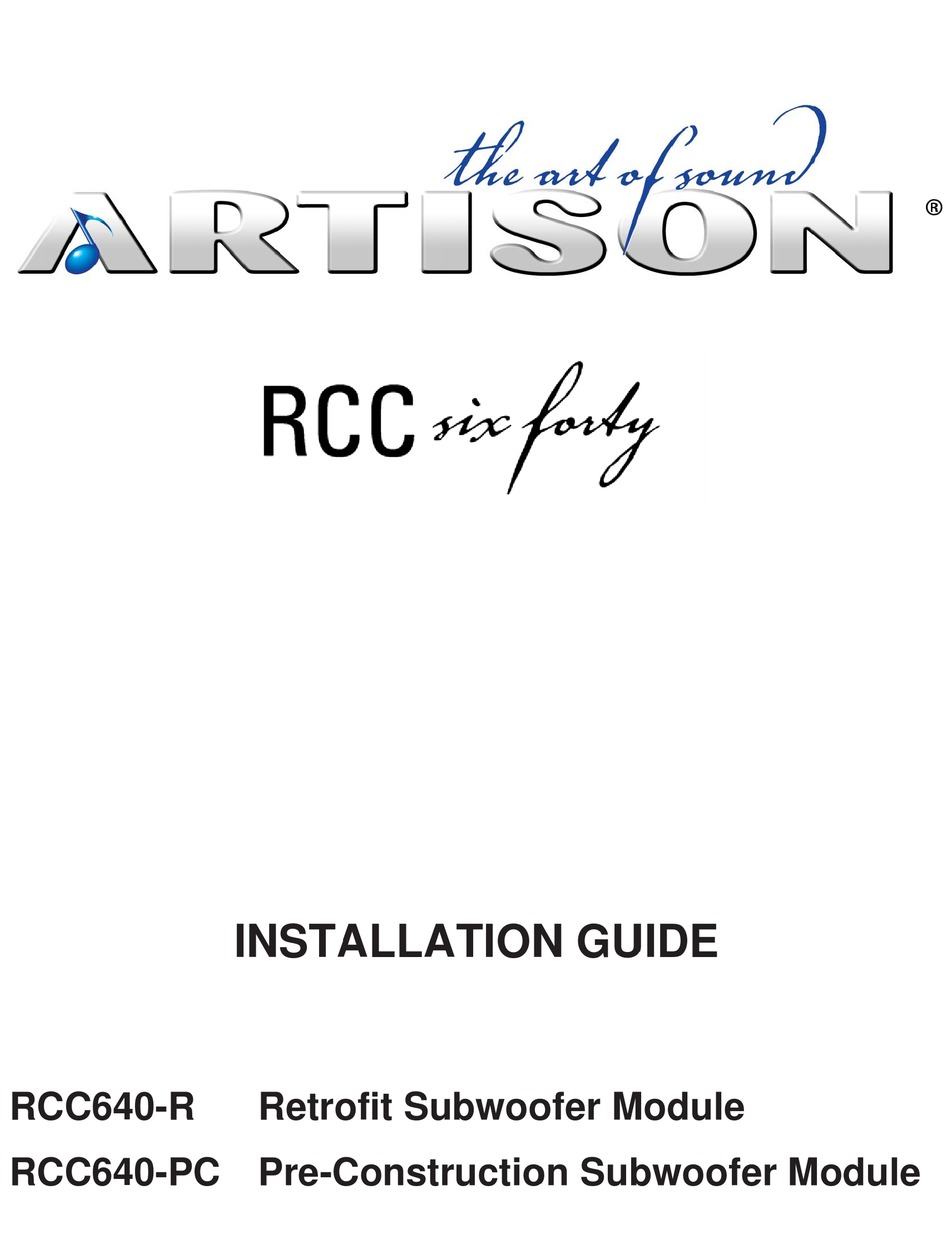

- Page 1 NSTA ALLA ATION N GU UIDE CC640 Retro ofit Su ubwoo ofer M Module CC640 0-PC Pre-C Const ructio on Sub bwoof fer Mo o dule...
-
Page 2: Carton Contents
1. Installation Guide If you are missing any of these parts or if you need assistance during the installation of your RCC640 Subwoofer System, please contact Artison’s Customer Service Department during normal business hours, Pacific Time at (775) 783-4770. - Page 3 INTRODUCTION The following information will guide you through the installation and setup of your Artison RCC640 Retrofit Subwoofer or RCC640 Pre-Construction Subwoofer. The RCC320 and RCC640 model series are in wall subwoofers featuring second generation of Artison’s Reactance Cancelling Configuration which allows vibration free operation.
- Page 4 RCC640 RETROFIT SUBWOOFER [RCC640-R] The RCC640-R was designed be installed into a 2 x 4 stud wall with a minimum of 16” on center spacing. The retrofit subwoofer is not impacted by cabinet orientation but needs to be used vertically to fit into standard 16” on center stud spacing. The classical rule for subwoofer placement is that the subwoofer should be placed on the same wall the front channels are located, positioned at one-third of the total distance of the wall.
- Page 5 3. Paint the Grille / Trim Ring with a spray method or a low nap roller. Be sure to not clog the perforations in the grille mesh. Use compressed air to blow excess paint out before it dries. 4. DO NOT get paint on the speaker baffle or speaker cones. Paint can damage these components which would VOID your Warranty.
- Page 6 When using 3 or 4 spacers use the included Long Grille Spacer Screws to accommodate the greater thickness. NOTE: If your combined wallboard thickness is larger than 1.0”, then please contact Artison for additional Grille Spacers. PAINTING THE GRILLE & TRIM RING 1.
- Page 7 Remove the magnet strips by removing the 8 mounting screws and add the required spacing underneath. When using 3 or 4 spacers use the included longer length screws to accommodate the greater thickness. NOTE: If your combined wallboard thickness is larger than 1.0”, then please contact Artison for additional Grille Spacers.
-
Page 8: Specifications And Dimensions
SPECIFICATIONS & DIMENSIONS: RCC 640 Retrofit Subwoofer RCC640-R Cut Out Dimensions: H 25.4” [645 mm] x W 14.3” [363 mm] Mounting Depth: 3.8” [97.5 mm] Grille: H 26.9” [683 mm] x W 16.0” [405 mm] x D 0.16” [4 mm] Driver Complement: 8 ea. - Page 10 RCC 640 Pre-Construction Subwoofer RCC640-PC Cabinet: H 28.6” [727 mm] x W 14.0” [354 mm] x D 3.5” [89 mm] Grille: H 29.3” [745 mm] x W 3.7” [95 mm] x D 0.16” [4 mm] Grille Cut Out: H 28.6” [727 mm] x W 3.0” [78 mm] Driver Complement: 8 ea.
-
Page 12: Limited Warranty
We will promptly advise you of what action to take. We may direct you to an authorized Artison Service Center or ask you to send your speaker to the factory for repair. You will need to present the original bill of sale to establish the date of purchase.
