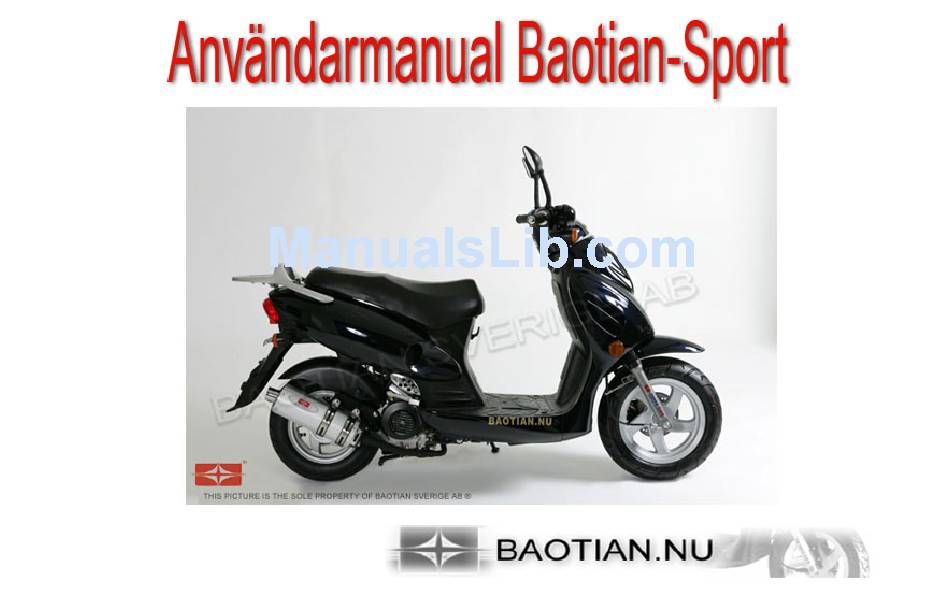

- Page 1 BAOTIAN SVERIGE AB...
- Page 2 This manual gives you information about the general structure, function, operation and maintenance methods of BT49QT-7. In order to enable your beloved motorcycle to render a best performance and a longer life, please read this manual carefully, pay particular attention to the running-in part in it and follow all the operating instruction. It is of great importance to make your riding safer and more comfortable.
-
Page 3: Table Of Contents
Controlling parts …………………………………………………………………………………… 6 Starting lever ……………………………………………………………………………………… 8 Fuel tank …………………………………………………………………………………….. 8 Fuel and engine oil …………………………………………………………………………………… 8 Pre-riding inspection ………………………………………………………………………………… 9 BAOTIAN SVERIGE AB Engine starting ……………………………………………………………………………………… 10 Running-in ………………………………………………………………………………………. 11 Regular maintenance …………………………………………………………………………………. 12 Tools ……………………………………………………………………………………………. 18 Technical Parameters ………………………………………………………………………………. -
Page 4: Guidance
Please read the details in the relevant chapter for your safety. WARNING 2. Helmet BAOTIAN SVERIGE AB It is dangerous to drive on the wet road. Do Do remember to wear helmet while riding. not make an abrupt turning while 3. - Page 5 When your motorcycle needs inspection, repair or other special service, the number will enable you to get good service from our sale agency. Please note .down your number here: BAOTIAN SVERIGE AB □ The frame number: □ The engine number:...
-
Page 6: Names Of Parts
1 2 3 10 111213 18 19 20 21 22 23 24 BTAO TI AN BAOTIAN SVERIGE AB (1) brake assy. Left rear turning light (17) Right front turning light (2) brake Disk (10) Starting pedal (18) Rear brake lever (3) Head light &... -
Page 7: Controlling Parts
Km / h 2. Switches on the left handle . Left turning lights indicator . High beam indicator BAOTIAN SVERIGE AB . Right turning lights indicator . Speedometer indicates the speed in km/ hour . Odometer indicates the total distance the motor- cycle has run Fuel gauge. - Page 8 Press it tightly and the front brake functions. engine works. 6. Ignition switch 5. Switches on the right handle BAOTIAN SVERIGE AB OFF The whole circuit is cut. Engine and lights cannot be operated and the key can be withdrawn.
-
Page 9: Starting Lever
Don’t overfill the gasoline over the designated scale Do not add anything into the gasoline. ¢ Ù Fuel tank Fuel and engine oil BAOTIAN SVERIGE AB Usage of the cap: . Gasoline 1.Insert the key and open the seat. High-quality fuel is essential to the engine. -
Page 10: Pre-Riding Inspection
Brake system 1.Interval between front brake and rear brake 2.No break on the cable 3.Flexible function Tires 1.Proper pressure 2.No crack or cutting Fuel Sufficient fuel BAOTIAN SVERIGE AB Engine oil Sufficient engine oil Lights Workable Horn Workable Gear oil... -
Page 11: Engine Starting
2. Turn the ignition switch to the “ON” position. BAOTIAN SVERIGE AB ¢ Ù Pr ess t he r ear br ake l ever ¢ Ú " O N " posi t i on... -
Page 12: Running-In
Running in circuit and s tart the motor. When using electric starting, don’t operate the BAOTIAN SVERIGE AB To maintain your motorcycle running in a good starting motor continually, or it may cause damage to the starting motor and the battery. -
Page 13: Regular Maintenance
Cylinder cap, cylinder and muffler* Carburetor Air cleaner Clean it between every 2000km Spark plug Fuel line Replace every four years BAOTIAN SVERIGE AB Clutch * V-strap Engine oil Replace every 3000km Brake * Front fork and steering * Rear suspension... - Page 14 Electrode identification: “+”—red line, “-”—black line. Change a new battery every 4 years. BAOTIAN SVERIGE AB 2. Carburetor and idle speed adjustment Keep the engine warmed up for 2-3 minutes. Pour the non-inflammable detergent into a Adjust the idling speed screw to set the engine basin and immerse the core of air cleaner Into at speed lf abort 1800 rpm.
- Page 15 Adjust the gap to 0.6-0.7mm with a thickness gauge. Use (NGK) C7HSA when replacement is needed. BAOTIAN SVERIGE AB 5.Fuel Remove the oil dipstick. Refill the recommended unleaded gasoline with Remove the oil plug to drain the used oil.
- Page 16 10-20mm. the positions from free status to the beginning The front brake performance of the brake. Pay attention to the sensitivity of the brake. BAOTIAN SVERIGE AB a=10~20mm The rear brake Turn the adjusting nut to get a proper stroke.
- Page 17 Never change or mix other oil, otherwise it would BAOTIAN SVERIGE AB Check if there is any leakage ; damage the brake system. Check if there is any leakage or crack on the If the brake oil is insufficient, it might be possible oil pressed hose;...
- Page 18 Tread depth: It is suggested to replace a new tire when the tread depth is less than l mm. When a light or circuit fails suddenly, check the fuse first. BAOTIAN SVERIGE AB Warning: The fuse cannot be replaced by any iron or aluminum wire.
-
Page 19: Tools
How to change gear oil Stand the scooter Take off the oil plug on the gear oil sprue BAOTIAN SVERIGE AB Take off the oil plug for displacement, let off all the After supplement, please make sure you have locked the... -
Page 20: Technical Parameters
1045mm Wheel base 1285mm Min. distance above ground 80mm Unloaded weight 92kg Weight Loaded weight 95kg Mass weight 170kg BAOTIAN SVERIGE AB Max. Speed 45km/h (e-mark) Min. Speed ≤1.8km/h Capacity Slope ≥16.8° Turning Conner ≥25° Diameter of turning Conner ≤3200mm... - Page 21 49cm Engine Compression ratio 10.5:1 Max. power 2.61 kW /8000 r/min Max. torque 3.56N·m /5000-5500 r/min Carburetor GY50-7 BAOTIAN SVERIGE AB Air cleaner Polyurethane plastic core Ignition type Starting mode Electric/kicking start Cooling mode Forced air-cooled Lubrication Pressure spray Frame Steel tube frame Rock-arm variable-pitch spring &...
-
Page 22: Electrical Circuit Chart
Rear right singal light 12V 1.7W 12V 10W Right wink 12V 1.7W Brake/Rear light Fuel gauge 12V 5W/21W BAOTIAN SVERIGE AB Meter light 12V 3W Left wink Rear left singal light 12V 3W 12V 10W Hight beam light 12V 3W...
