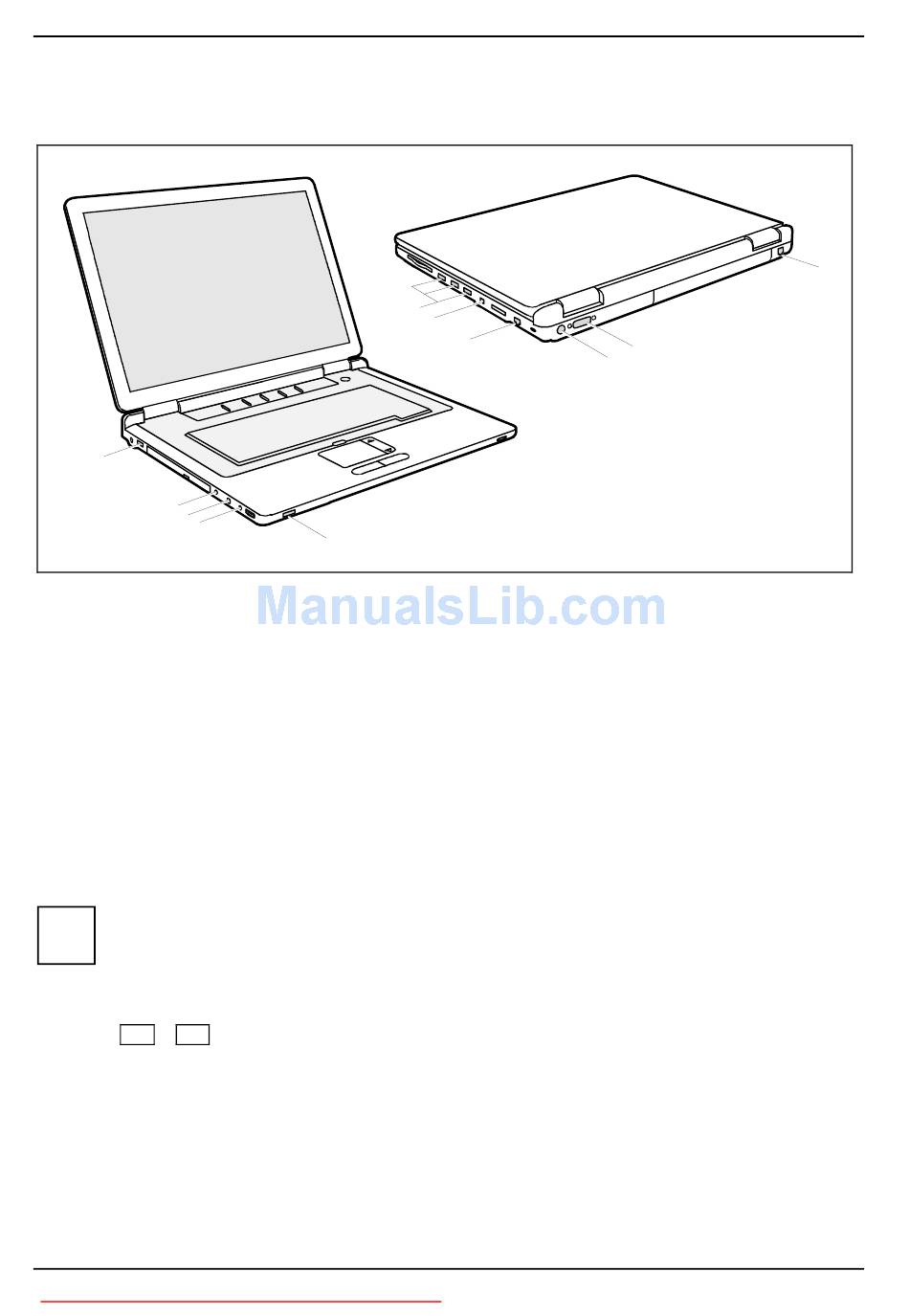

Connecting external devices

Ports

11
10
9
8
1 = Modem port
2 = DVI-I connector
3 = S-Video out socket
4 = LAN port
5 = FireWire port
6 = USB ports

Connecting an external monitor

An external monitor can be connected to the notebook.
► Switch off the notebook and the external monitor.
► Connect the data cable of the external monitor to the DVI-I connector of the notebook.
If you want to connect an analogue monitor, first connect the monitor adapter provided to
i
the DVI-I connector of your notebook.
► First switch on the external monitor and then the notebook.
Using the Fn + F4 key combination you can switch back and forth between the external monitor
and the LCD screen.
You can display the same picture on the external monitor and the LCD screen simultaneously.
54
Downloaded from LpManual.com Manuals
6
5
4
7
7 = CIR interface
8 = Microphone jack
9 = Headphone port/SPDIF
(Loudspeaker connector/Line out)
10 = Line-In
11 = USB port
