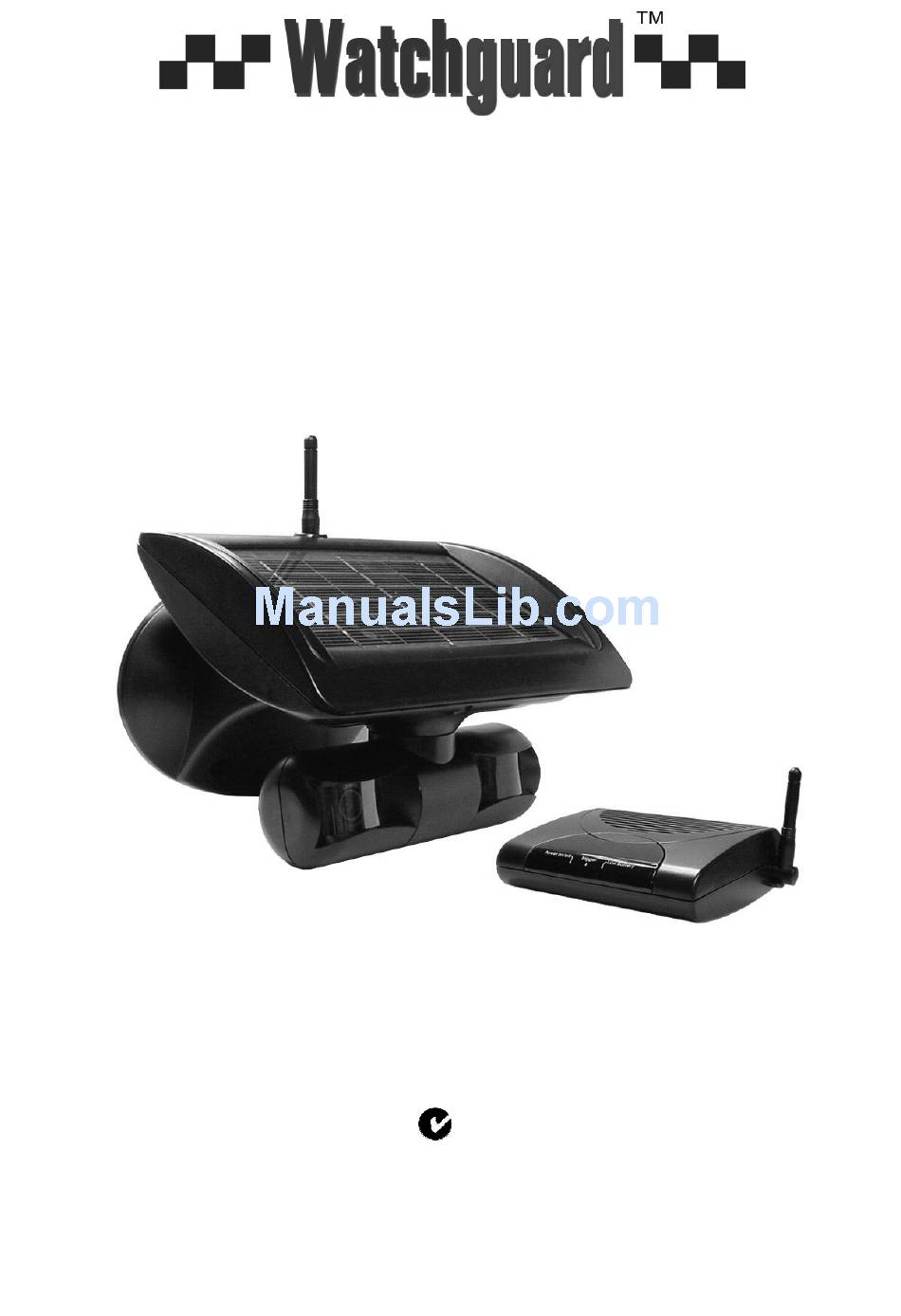

- Page 1 MODEL: VSWSC WIRELESS SOLAR POWERED SURVEILLANCE CAMERA WITH PASSIVE INFRARED MOVEMENT SENSOR INSTALLATION MANUAL V1.0 N517...
- Page 2 It has often been difficult for a DIY Handyperson to even consider installing an outdoor surveillance camera system – until now! Using a combination of Solar and 2.4GHz Wireless Video Technology, the Watchguard Model VSWSC provides a revolutionary solution that is unequalled in its ease of installation and use.
-
Page 3: Installation Diagram
INSTALLATION DIAGRAM... -
Page 4: Before Commencing Installation
BEFORE COMMENCING INSTALLATION Please pay attention to the following factors before you commence installation: 1. Camera location with sufficient daylight: The camera solar panel requires exposure to direct sunlight during daylight hours to provide sufficient charge to the internal battery. Please mount the camera in a sunny location where it will receive at least 3 –... -
Page 5: Installation
Installation Battery Hold Down Strap Transmission Time Switch (SW3) Optional Input For 9VDC 300mA Plugpack Channel Selection Switch (SW2) Reset Switch (SW1) Step 1: Installing The Camera Carefully cut & remove the plastic binding strap that is holding the backplate to the main camera body and then remove the backplate from the rear of the camera housing. - Page 6 selected. Use the fixing template provided to mark the position of the four backplate fixing holes. Drill four 5mm-diameter holes. Note: If mounting onto a brick or cement surface, you will need to insert suitable wall anchors for that type of surface. If mounting onto wood or a non-brick surface, you can use the wood screws included.
-
Page 7: Operating Instructions
Operating Instructions: (1) Buzzer/Light ON/OFF Switch: The Buzzer / Light Switch has three selectable positions: "ON" In the left switch position, when the PIR camera detects movement, video and audio will be automatically transmitted to the receiver. Upon receiving the signals, the receiver beeps twice and the Trigger LED on the front of the receiver will flash for 1 minute. -
Page 8: Troubleshooting
Replace the camera on the wall mount, and tighten the 2 screws on the bottom of the camera. d. Turn off the receiver, then turn it back on. If system still does not operate correctly, call the Watchguard Help Desk... -
Page 9: Specifications
SPECIFICATIONS Made In China Receiver Camera Picture Type Color CMOS TV System Transmission Range Up to 100m in open space Sensitivity 3Lux@F1.2 Channel Selection Switch 3 positions for 1~3 selection Lens Angle 78° Diagonal Buzzer & Light Switch 3 positions for buzzer & light on / buzzer off/off Lens 4.3mm F2.0... -
Page 10: Fcc Radio Frequency Interference Statement
FCC Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
