04 Safety
Electrical Assembly
When wiring the unit in, a suitable
disconnect device such as a fused spur
should be used, do not use a plug. The
means of disconnecting the unit from the
mains power supply must be incorporated
in the fixed wiring in accordance with the
wiring rules.
There must be a necessity to allow
disconnection of the appliance from the
supply after installation, unless the appliance
incorporates a switch complying with the
wiring regulations The disconnection may
be achieved by incorporating a switch in the
fixed wiring in accordance with the wiring
regulations.

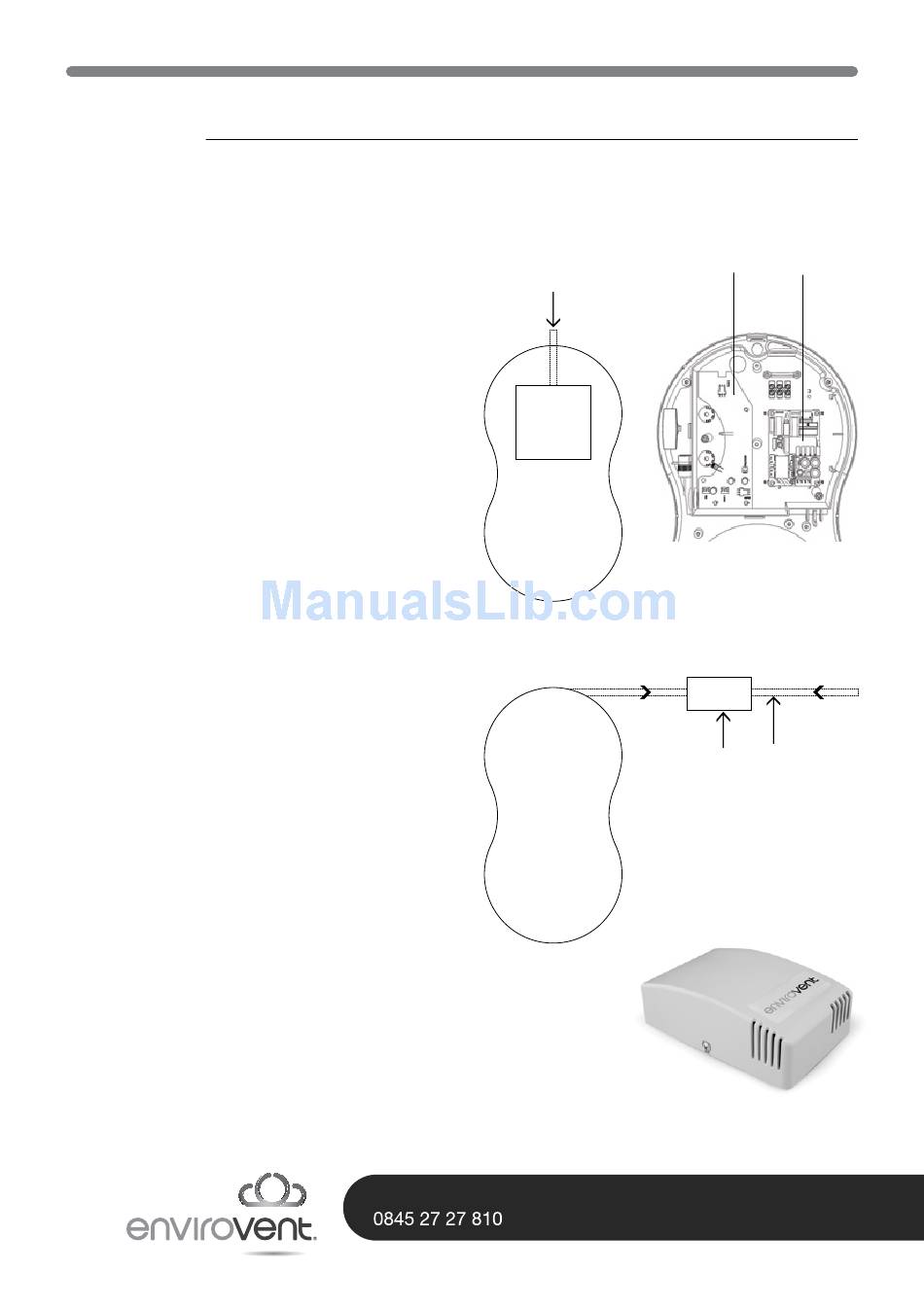

The electrical install comprises of a power
supply unit (Fig.1) or a low voltage box
- SELV (Fig.2). See pages 4-5 for wiring
diagrams.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in
order to avoid a hazard.
07
Connect 2 core
& earth cable into
existing wiring
MAINS
Cables must be
restrained inside
SELV box.
Fig.2
SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING THIS UNIT CALL
Fan
Board Supply
Fig.1
2 core
2 core & earth
SELV
Connect 2 Connect
core cable 2 core
from SELV & earth
box into unit cable to
existing
wiring
SELV Box
Power
