Summary of Contents for Frontgate 720-0170

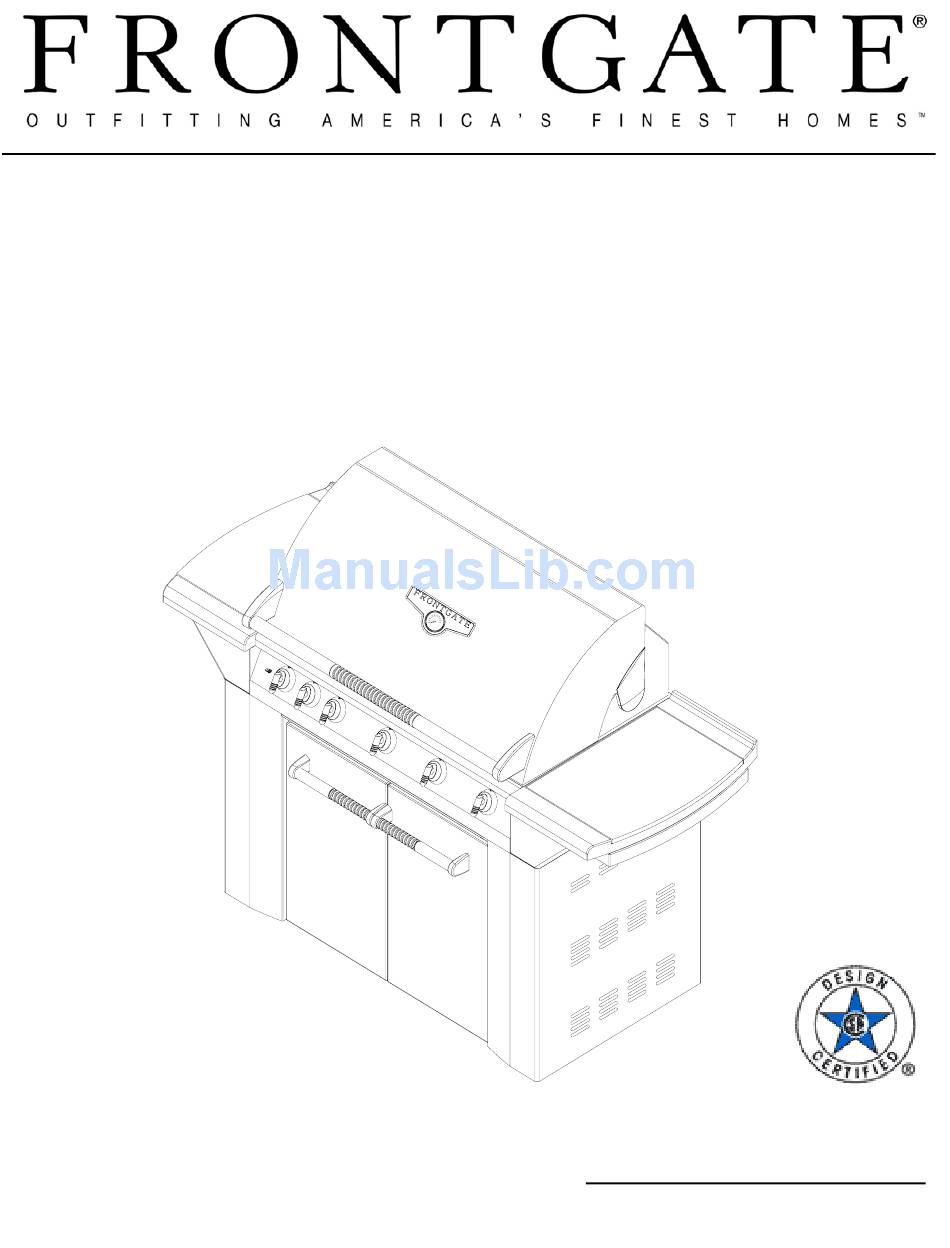

- Page 1 Frontgate Design Series I Model: 720-0170 USE AND CARE MANUAL FOR OUTDOOR USE ONLY...
-
Page 2: Table Of Contents
Thank you for choosing Frontgate to meet your grilling needs. We’re confident this grill will provide excellent performance and many years of enjoyment and lasting value selecting our stainless steel gas grill. For future reference, record your Frontgate Grill purchase:... -
Page 3: Important Safety Instructions Pages
IMPORTANT SAFETY INSTRUCTIONS We recommend you read this entire manual to be sure your grill is properly assembled, installed and maintained. Failure to follow theses instructions could result in serious bodily injury and/or property damage. This grill is intended for outdoor use only and is not intended to be installed in or on recreational vehicles or boats. - Page 4 IMPORTANT SAFETY INSTRUCTIONS Grease is flammable. Let hot grease cool before Do not allow clothing, pot holders or other attempting to handle it. Avoid letting excess flammable materials come in contact with or too grease deposits collect in the grease tray at the close to any grate, burner or hot surface until it bottom of the grill’s firebox.
- Page 5 IMPORTANT SAFETY INSTRUCTIONS DO NOT USE BRIQUETTES OF ANY KIND IN Do not use the grill for cooking excessive fatty THE GRILL. meats or products the promote flare- ups. The grill is designed for optimum performance Do not operate the grill under unprotected, without the use of briquettes.
-
Page 6: Placement Of The Grill
PLACEMENT OF THE GRILL CLEARANCE UTILITIES For your safety, a minimum of 3” clearance is For natural gas grills, consult your local gas utility required from the back of the grill to non- company for hook-up requirements, All gas combustible construction and at lease 6” side connections should be made by a plumber or a gas supply company. -
Page 7: Electronic Ignition Battery Installation
INSTALLATION INSTRUCTIONS Getting Ready Make sure all packing material is removed from the grill, including the burner tie-down straps. Installation of Electronic Ignition Battery The electronic ignition requires one AA battery be installed to operate. To install the AA battery included with the grill, remove the battery box housing by using the threaded cap. -
Page 8: Gas Requirements
Natural Gas or vice versa, the conversion must be done by a service agent authorized by Frontgate. This conversion will only be warranted if the service is provided by an authorized service agent. All costs associated with a conversion including, but not limited to the parts and... -
Page 9: Propane) Tank Installation
INSTALLATION INSTRUCTIONS Installation of the Propane Tank If grill is operated using L.P. (Liquid Propane) located the brass 3/8” flared fitting coming out of the underside of the grill and attach the gas hose assembly provided with the grill. Attach the other end of the gas hose assembly to a standard QCC-1 (screw- on) 20 lb. -
Page 10: Leak Testing
LEAK TESTING Overview If after testing, gas continues to leak from any or all of the fittings, turn off the gas supply, and Although all gas connections on the grill are leak contact one of our grill specialists or a certified tested at the factory prior to shipment, a grill service agent. -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS General Overview Note: This grill is designed to grill efficiently without the use of lava rocks or briquettes of any The main grill burners encompass the entire kind. Heat is radiated by the stainless steel flame cooking area and are side ported to minimize tamers positioned above each burner. -
Page 12: Grill Lighting Instructions
If the flame is yellow, it indicates insufficient air. If the grill. If a replacement is necessary, contact the flame is noisy and tends to lift away from the Frontgate or a certified grill technician for proper burner, it indicates too much air. If any of these replacement. -
Page 13: Grill Lighting Instructions
LIGHTING ILLUSTRATIONS Main Burner Lighting Illustration Rear Burner Lighting Illustration 1. Make sure the lid is open. 1. Make sure the lid is open. 2. Push and turn one of main knobs to 2. Push and turn the rear burner knob the HI position. -
Page 14: Match Lighting The Grill
MATCH LIGHTING THE GRILL If the burner will not light after several attempts, a burner can be match lit. If you have just attempted to light the burner with the igniter, allow 5 minutes for any accumulated gas to dissipate before attempting to match light the grill. -
Page 15: Optional Rotisserie Installation
OPTIONAL ROTISSERIE INSTALLATION Locate and loosen the screws pre- attached on the left- hand rotisserie bracket. Slide the rotisserie motor onto the rotisserie bracket and tighten the bracket screws to secure the motor to the bracket. Plug the rotisserie motor into a 110/120 volt electric supply GFI receptacle (6.5 amp min.). Using the Optional Rotisserie The rotisserie motor is capable of turning up to a 20lbs cut of meat or poultry. -
Page 16: Care And Maintenance
CARE AND MAINTENANCE Stainless Steel Always remove grates from the grill for cleaning if using any type of cleaning agent. A dishwashing Wipe off the outside of the grill with a damp cloth liquid which contains a degreasing agent will be before lighting each time. -
Page 17: Troubleshooting Pages
TROUBLESHOOTING General Troubleshooting You should inspect the burners at least once a year or immediately if any of the following conditions occur: The smell of gas in conjunction with the burner flames appearing yellow. The grill does not reach temperature. The burner make a popping noise. - Page 18 TROUBLESHOOTING Problem Solution Check gas connection. Fuel level may be low. Flame is erratic. Grill may be in need of cleaning. Check flavor tamers and cooking grates for excess build-up. Flare- Ups Ensure grill is not placed directly in path of wind. Be sure the drip tray is clean (do not use aluminum foil in grease tray).
-
Page 19: Parts Diagram Detail
Frontgate Design Series I Grill Parts Diagram Detail... -
Page 20: Part Item Numbers
PART LIST REF# DESCRIPTION Q'TY REF# DESCRIPTION Q'TY Lid, Front Bottom Panel Nameplate 3" Caster With Brake Heat Insulating Spacer Bracket of Tank Tray Slide Handle Assembly Seat Gas Tank Tray Slide Handle Assembly Tube Door Frame Fire Box Buckle Spit Rod Door Handle Seat Key Washer... -
Page 21: Parts Ordering
ORDERING PARTS HOW TO ORDER REPLACEMENT PARTS IMPORTANT To make sure you obtain the correct Use only factory authorized parts. The use of any replacement part(s) for your grill, please refer to part that is not factory authorized can be the parts list. -
Page 22: Cooking Charts Pages
GRILL COOKING CHART WEIGHT OR FLAME APPROXIMATE SPECIAL INSTRUCTIONS FOOD THICKNESS SIZE TIME AND TIPS Slice. Dot with butter or margarine. Wrap in VEGETABLES heavy-duty foil. Grill, turning occasionally. Fresh Beets Grill, turning once. Brush Medium 12 to 20 minutes Carrots occasionally with melted butter or margarine. - Page 23 GRILL COOKING CHART WEIGHT OR FLAME APPROXIMATE SPECIAL INSTRUCTIONS FOOD THICKNESS SIZE TIME AND TIPS Well-done 1 inch Medium 17 to 30 minutes Remove excess fat from edge. Slash remaining PORK fat at 2-inch intervals. Grill, turning once. Cook 1 inch Medium 20 to 30 minutes Chops...
-
Page 24: Warranty
The warranty period is not extended by such repair or replacement. Warranty claim procedure: If you require service or parts for your grill, please contact Frontgate at 1-800- 537-8484.
