Einstein E-collar 400TS Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

400TS
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for Einstein E-collar 400TS

Summary of Contents for Einstein E-collar 400TS

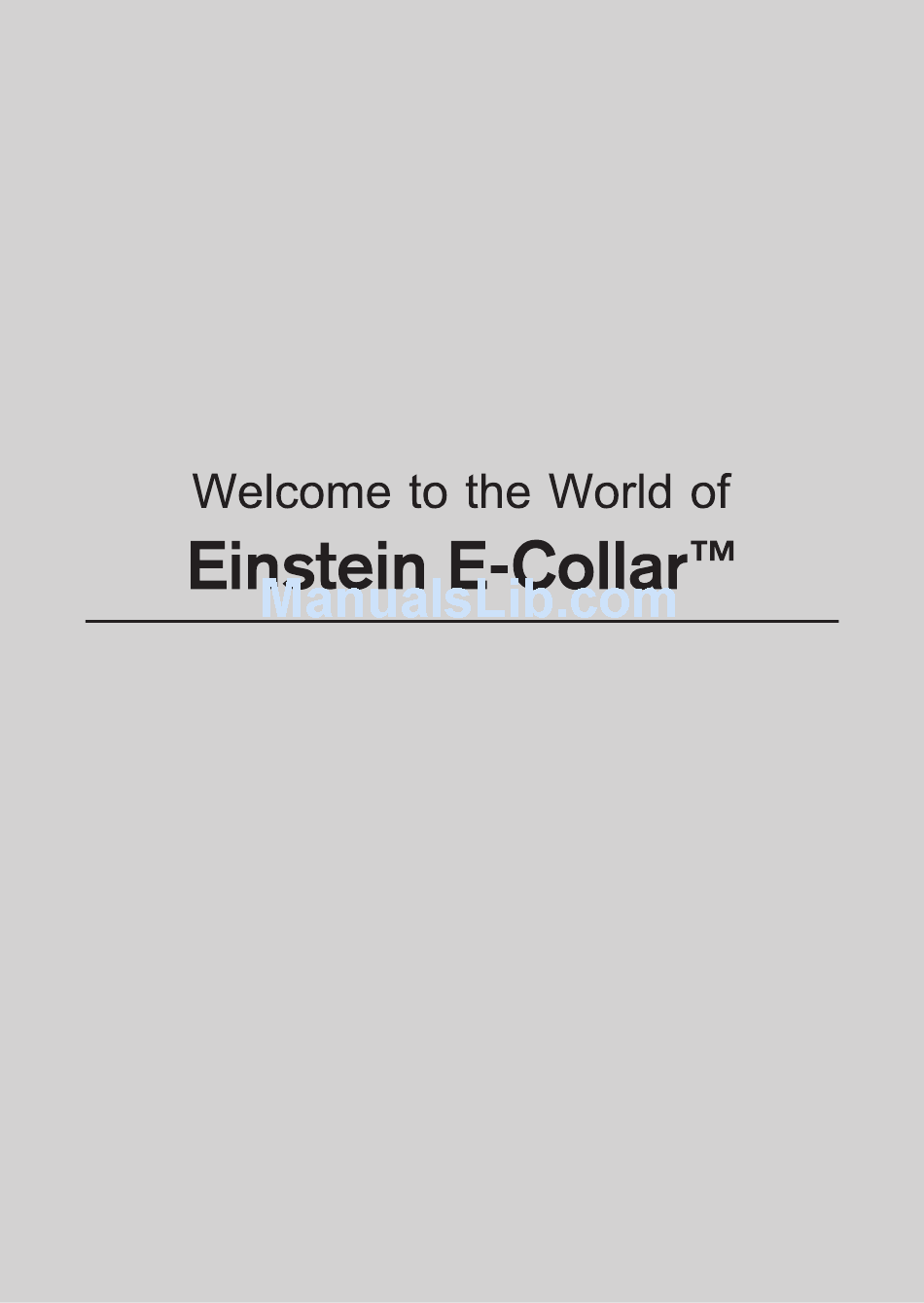

  • Page 1 400TS Owner's Manual...
  • Page 2 400TS Owner's Manual Einstein Remote Education Collar Thank you for purchasing the Einstein Remote Education Collar from E-Collar Technologies, Inc. We have made every attempt to provide you with the most technologically advanced product using the most stringent quality and manufacturing standards.
  • Page 3 Stimulation Levels Adjustable from 0 to 100 • Collar Receiver Light for Night Tracking • Lock and Set Stimulation Feature • Stimulation Boosting mode Provides Instant Responses to • Emergency Situations User Adjustable Boosting Levels • Einstein Owner's Manual 400TS...
  • Page 4 CONTENTS • • Transmitter Collar Receiver with Strap and 5/8” Contact Points • • Battery Charger Owner’s Manual 400TS Owner's Manual • • Contact Points 3/4" Test Light • • Contact Point Tool Lanyard Einstein Owner's Manual 400TS...

  • Page 5: Table Of Contents

    Safety and General Information • Transmitter Parts • Collar Receiver Parts • Charging the Batteries • Turning Your Einstein On/Off • The LCD Display Features • Button Functions • Changing the Intensity Level of Stimulation • Lock/Unlock the Stimulation Intensity Level •...

  • Page 6: Safety And General Information

    Hospital or Health Care Facility or enter the facility without turning off both units. An FCC license is not needed to operate Einstein E-Collar transmitters. However, any change or modification made to the transmitter, including the supplied antenna, without the expressed written approval of E-Collar Technologies, Inc.

  • Page 7: Transmitter Parts

    / Set and Lock Knob Indicator Light Stimulation Button(Black) (LED Window) LCD Display Stimulation Boost Button or Continuous Button(Red) Momentary / Continuous Mode Button Light and On/Off Button Tapping Sensation Button Battery Charging Receptacle On/Off Magnetic Dot and Rubber Cover Einstein Owner's Manual 400TS...

  • Page 8: Collar Receiver Parts

    COLLAR RECEIVER PARTS Collar Strap 5/8” Contact Points On/Off Magnetic Dot Indicator and Tracking Light (LED Window) THIS D-CLIP IS NOT TO BE USED AS A TIE OUT Battery Charging Receptacle and Rubber Cover Einstein Owner's Manual 400TS...

  • Page 9: Charging The Batteries

    Indicator Light will blink “Green” under normal operation. It will flicker “Red” when stimulation is applied and will blink “Red” when recharging is required. We recommend you fully charge your Einstein every six months when not in use to maintain battery life. Battery Charger...
  • Page 10 “memory effect” like other rechargeable battery types. It is recommended that every six months you recondition the batteries by fully discharging them and then fully charging them, this will ensure you get the rated 500 charges per battery. Einstein Owner's Manual 400TS...

  • Page 11: Turning Your Einstein On/Off

    TURNING YOUR Einstein ON/OFF COLLAR RECEIVER ON/OFF MAGNETIC SWITCH • To turn the Collar Receiver On or Off : Position the red dot on the Transmitter close to the small red dot hole on the receiver. After turning on the unit push the tapping sensation button to assure the collar receiver is turned on and functioning properly before putting it on your dog.

  • Page 12: The Lcd Display Features

    “HI” means the highest level(100 ) Indicates current stimulation mode: “M” indicates Momentary/ Momentary Boost, “C” indicates Continuous/Continuous Boost, Both “M” and “C” illuminated indicates Momentary/Continuous/ Both Button Boost. “M” and “C” mode is recommended for first time e-collar users. Einstein Owner's Manual 400TS...

  • Page 13: Button Functions

    Power lines and foliage will also reduce the range. Stimulation Button(Black) Stimulation Boost Button or Continuous Button Determined by the Mode Setting(Red) Momentary/Continuous Mode Button Tapping Sensation Light and On/Off Button Button Einstein Owner's Manual 400TS...
  • Page 14 LCD window. - Continuous Mode : Stimulation (Black) Button “S” and Stimulation Booster (Red) Button “S” will send Continuous Stimulation. In this mode, “C” icon will be displayed in the LCD window. Einstein Owner's Manual 400TS...
  • Page 15 1 through 20, larger more stubborn breeds can use 20 through 60. - If current level is higher than “100-boosting level”, output intensity level will be 100 (HI). - Useful function in emergency situation. Einstein Owner's Manual 400TS...
  • Page 16 1 up to 60. Press S(Black) button again to save new level and exit from Booster Level Change Mode. If any other button is pressed or 20 sec passes, Booster Level Change Mode will be cancelled. Einstein Owner's Manual 400TS...
  • Page 17 Please turn the stimulation to “0” and press both stimulation buttons and the tapping sensation button at the same time for 2 seconds. The mode and boost level will revert back to the default settings. Einstein Owner's Manual 400TS...

  • Page 18: Changing The Intensity Level Of Stimulation

    “conditioning” level a few levels to get your dog to respond, some dogs are more stubborn and need more stimulation. The ‘corrective” level is typically 10 to 30 levels higher than the “conditioning level. Einstein Owner's Manual 400TS...
  • Page 19 On average, it is normally 20 to 40 levels higher than the “Conditioning” level. This higher level will only be used in “Momentary” mode as not to over-stimulate your dog. Einstein Owner's Manual 400TS...
  • Page 20 “e-collar training” or “remote dog training techniques”. Good Luck with your training! * CAUTION : Do not put the Einstein E-Collar receiver on a human being. * WARNING : E-Collar Technologies, Inc. is not responsible for any misuse of the Einstein E-Collar and loss and damages as a result of a dog bite.

  • Page 21: Lock/Unlock The Stimulation Intensity Level

    If the stimulation level doesn’t change when you rotate the stimulation knob, you have successfully locked the stimulation level. To unlock the stimulation level simply press the stimulation knob again and it will unlock the stimulation level. Einstein Owner's Manual 400TS...

  • Page 22: Indicator Light

    “green” (ready for use) to “amber” (need to charge soon) and then to “red” (charge immediately). When any of the function buttons of the transmitter are pressed, the indicator light on the collar receiver will flicker “red” indicating a control signal has been successfully received. Einstein Owner's Manual 400TS...

  • Page 23: Lost Transmitter Mode

    Lost Transmitter Mode Your Einstein E-Collar transmitter allows the user to turn on a 6 hour timer. After 6 hours the transmitter will begin beeping providing the ability to locate the transmitter in tall grass. Lost transmitter mode is activated by first pressing light button and then simultaneously pressing the stimulation Button(Black) when the intensity level is zero.

  • Page 24: Testing Your Einstein

    The collar receiver light will flicker red while the stimulation is on. Next, press the button to Tapping Sensation test the tapping sensation feature. Your Einstein E-Collar is ready to use. Einstein Owner's Manual 400TS...

  • Page 25: Replacing The Contact Points

    2. Install the 3/4” contact points onto the bolt and tighten the contact points by rotating them clockwise with the contact point tool. * For short haired breeds such as boxers, dachshund, pit bulls, etc, please contact customer service and get the micro-probe contact points. Einstein Owner's Manual 400TS...

  • Page 26: Correctly Fitting The Collar

    Antibiotic ointment will aid in the healing process. Some dog breeds have very thick fur that requires special contact points, please contact our customer service or visit www.ecollar.com for more information. Einstein Owner's Manual 400TS...

  • Page 27: Warranty

    WARRANTY To Register for the Limited Lifetime Warranty : To register your Einstein product, please log onto our website at www.ecollar.com, click on the warranty registration link and fill out the required information. Please register your product within 30 days of your purchase.

  • Page 28: Accessories

    ACCESSORIES • Micro-Probes Contact Points • Thick-Hair Contact Points • Car Adapter • Belt Clip Einstein Owner's Manual 400TS...

  • Page 29: Contact Information

    CONTACT INFORMATION E-Collar Technologies, Inc. 2120 Forrest Park Drive Garrett, IN 46738 Toll-Free 1-855-326-5527 Toll-Free Fax 1-855-226-5527 www.ecollar.com sales@ecollar.com Einstein Owner's Manual 400TS...
