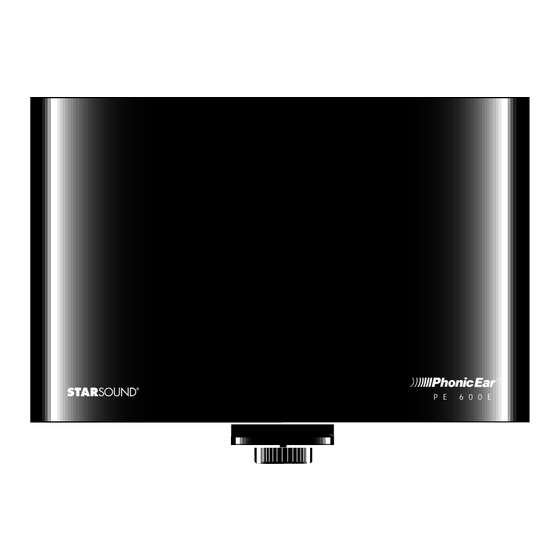

Phonic Ear PE 600E StarSound User Manual

Hide thumbs Also See for PE 600E StarSound:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
Sync Out
Sync In
(Channel B/Right)
(Channel B/Right)
White
Red
Audio In
Sync In
(Channel B/Right)
(Channel A/Left)

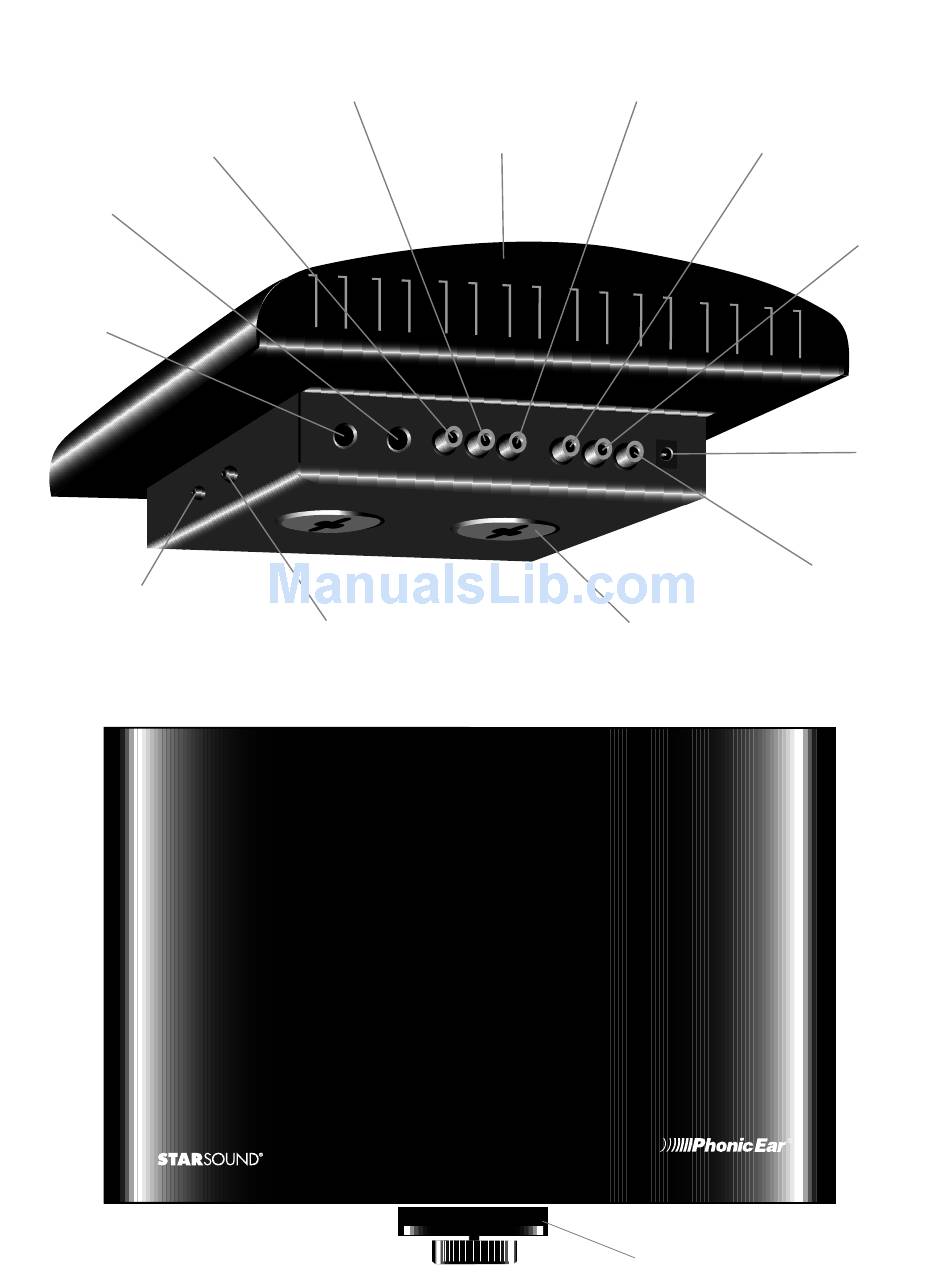

PE 600E emitter
Yellow
Red
Mic In
Sync Out
(Channel A/Left)
(Channel A/Left)
White
Mic In
(Channel B/Right)
DC In
Audio In
(Channel A/Left)
Input level detector
Yellow
(Channel B/Right)
Input level detector
Wall mounting
Red
(Channel A/Left)
hole
Green
P E
6 0 0 E
Mounting support

Advertisement

loading

Related Manuals for Phonic Ear PE 600E StarSound

Summary of Contents for Phonic Ear PE 600E StarSound

  • Page 1 Sync Out Sync In (Channel B/Right) (Channel B/Right) White Audio In Sync In (Channel B/Right) (Channel A/Left) PE 600E emitter Yellow Mic In Sync Out (Channel A/Left) (Channel A/Left) White Mic In (Channel B/Right) DC In Audio In (Channel A/Left) Input level detector Yellow (Channel B/Right)

  • Page 2: Wall Mount

    where to mount it floor/table mount Point toward listening area: AT579-IR AT579-T-IR AT582-IR 370m /4000 ft maximum stereo installation wall mount (using PE601R headset) AT701 Plug into emitter first Plug into outlet second Audio In (Left) AT702 House sound system Audio In (Right) AT703...

  • Page 3: Simultaneous Interpretation

    two-channel installation simultaneous interpretation (using PE602R headset) (using PE 602R headset) AT701 AT701 Plug into emitter first Plug into Plug into Listener outlet second Plug into outlet second emitter first Audio In House (Channel A) Audio In sound system AT702 House (Channel A) sound system...
  • Page 4 how to use the how to use the body-worn receiver receiver headsets (using PE600R receiver) A. battery charging B. replacing dead A. battery installation AT534-S batteries alkaline alkaline battery Plug in battery Plug in – – Push off Battery Battery PE 600R door door...

  • Page 5: Specifications

    specifications receiver: PE 600R/601R/602R emitter: PE 600E transmitting frequency receiving frequency 2.3 MHz & 2.8 MHz 2.3 MHz & 2.8 MHz (simultaneously) modulation modulation FM wide-band FM wide-band frequency response 100Hz to 7kHz ± 3dB (600R) supply voltage 28VDC 60Hz to 7kHz ± 3dB (601R/602R) current drain 700mA typical signal-to-noise ratio >55dB (600R)

  • Page 6: Basic Operation

    Never recharge alkaline batteries! • Clear path from emitter to receiver. outside u.s./canada: call your C. operation • Avoid heavy light saturation in the room. local Phonic Ear dealer • Avoid direct sunlight. receiver lens channel (Do not block) (On back)

  • Page 7: Warranty

    6. Products damaged in transit, unless investigated by the shipper and returned to the warrantor with the investigation report. Phonic Ear, Inc. reserves the right to make changes in the design or construction of any of its instruments at any time without incurring any obligation to make any changes whatsoever on units previously purchased.
