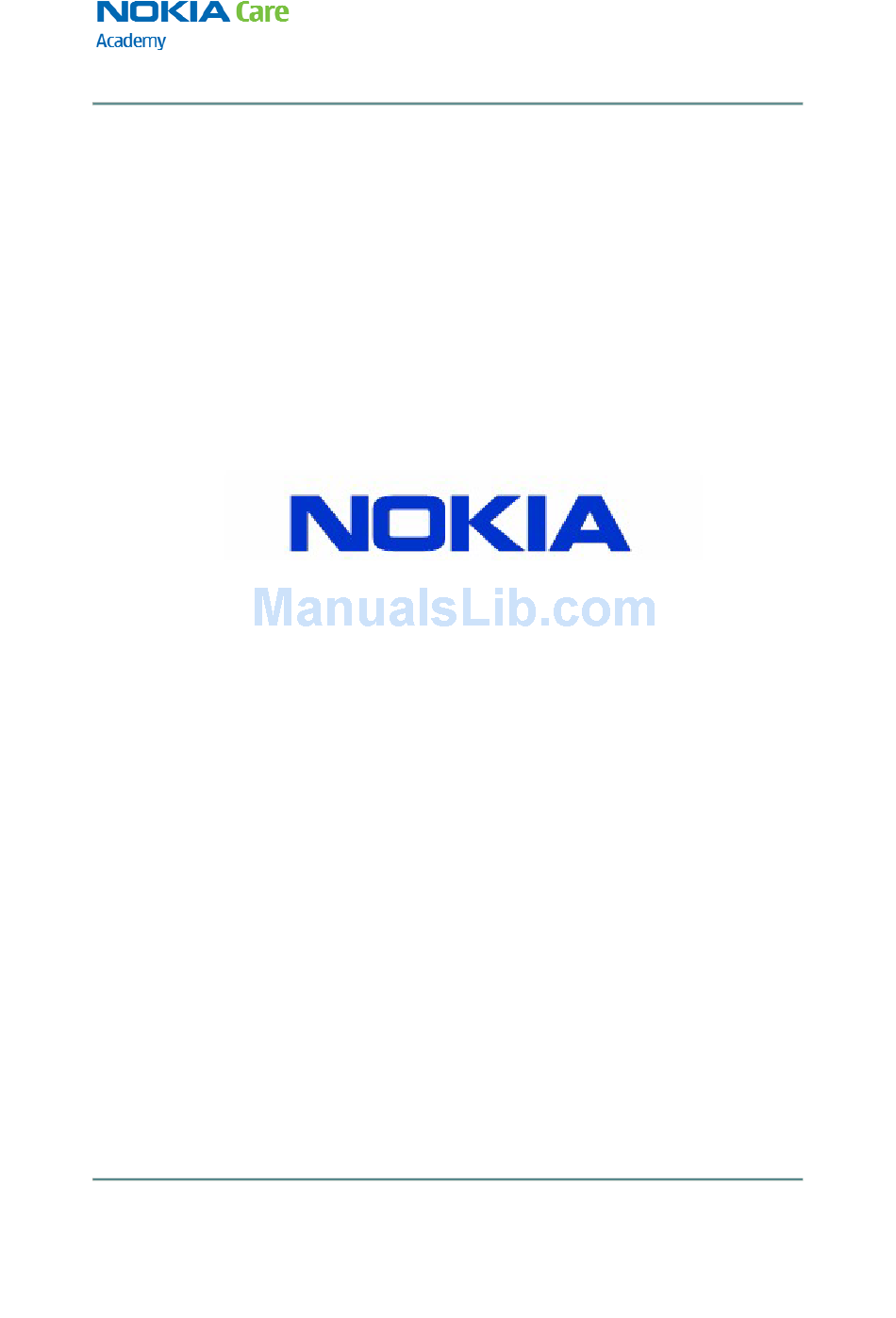

RM-678
Service Manual Level 1&2
X5-00
Service Manual
Level 1&2
Version 1.0
1
COMPANY CONFIDENTIAL
Copyright © 2010 Nokia. All rights reserved.

Advertisement

Table of Contents
loading

Related Manuals for Nokia X5-00

Summary of Contents for Nokia X5-00

  • Page 1 RM-678 Service Manual Level 1&2 X5-00 Service Manual Level 1&2 Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 2 Service Manual Level 1&2 Transceiver characteristics Modes: TD-SCDMA ： 2.0G GSM： 900/1800/1900MHz, EDGE,HSDPA Main Display: 2.4″ 240*320 16 million colors QVGA Operating System： Series 60 Connectors: Micro-USB connector Audio jack Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 3 Transceiver with BL-4C 860mAh Li-Ion battery pack Talk time Standby time Note 250 min (TD-SCDMA) 210 hrs (TD-SCDMA) Depends on 200 min (GSM) 200 hrs (GSM) network 150 min (VT) parameters Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 4 RM-678 Service Manual Level 1&2 Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.

  • Page 5: Table Of Contents

    Warnings and cautions........................10 WARNINGS ............................10 CAUTIONS ............................11 For your safety............................12 ESD production............................13 Care and maintenance ........................15 Battery information ..........................17 Exploded view ............................20 Service devices............................23 Software update ..........................25 Disassembly instructions .........................26 Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 6 RM-678 Service Manual Level 1&2 Assembly and disassembly hints ....................39 Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.

  • Page 7: Amendment Record Sheet

    1/2010 Fu Qian The purpose of this document is to guide technicians of Nokia service levels 1 and 2 workshop to carry out services to Nokia products. This Service Manual is Company confidential and to be used by authorized Nokia service suppliers. Nokia also provides other guidance documents (e.g.
  • Page 8 RM-678 Service Manual Level 1&2 Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.

  • Page 9: Copyright

    Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused. The contents of this document are provided "as is". Except as required by applicable...

  • Page 10: Warnings And Cautions

    Note also the following: WARNINGS CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE MANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.

  • Page 11: Cautions

    Use only approved components as specified in the parts list. Ensure that all components, modules screws and insulators are correctly re–fitted after servicing and alignment. Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.

  • Page 12: For Your Safety

    Use only approved accessories and batteries. Do not connect incompatible products. CONNECTING TO OTHER DEVICES When connecting to any other device, read its user’s guide for detailed safety instructions. Do not connect incompatible products. Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.

  • Page 13: Esd Production

    RM-678 Service Manual Level 1&2 ESD production Nokia requires that product service points have sufficient ESD protection (against static electricity) when servicing products. Any product of which the covers are removed must be handled Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 14 ESD protected spare part packages MUST NOT be opened/closed out of an ESD Protected Area. For more information and local requirements about ESD protection and ESD Protected Area, contact your local Nokia After Market Services representative. Version 1.0 COMPANY CONFIDENTIAL...

  • Page 15: Care And Maintenance

    Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics. Do not store the phone in cold areas. When it warms up (to its normal temperature), Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 16 All of the above suggestions apply equally to the product, battery, charger or any accessory. Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.

  • Page 17: Battery Information

    Unplug the charger when not in use. Do not leave the battery connected to a charger for longer than a week, since overcharging may shorten its lifetime. If left unused a fully charged battery will Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 18 15°C and 25°C (59°F and 77°F). A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Batteries' performance is particularly limited in temperatures well below freezing. Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 19 RM-678 Service Manual Level 1&2 Do not dispose of batteries in a fire! Dispose of batteries according to local regulations (e.g. recycling). Do not dispose as household waste. Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.

  • Page 20: Exploded View

    Refer to the image below for the recommended ecologically sound disposal of components. Colorized components show the different categories. Refer to the corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on the Nokia Online (NOL) website. Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 21 RM-678 Service Manual Level 1&2 Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 22 RM-678 Service Manual Level 1&2 Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.

  • Page 23: Service Devices

    Camera removal tool This jig is used to separate the camera from the socket. FLS-5 Dongle Dongle and flash device incorporated into one package, developed specifically for POS use. Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 24 USB connector of the phone and allows Point of Sale (POS) locations to flash the mobile terminal. CA-100C Charging Cable This is used to disassemble DC jack WH-102 Headset This is used to disassemble audio jack Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.

  • Page 25: Software Update

    RM-678 Service Manual Level 1&2 Software update Point of Sales Flashing Check always for the latest version of flash software, which is available on Nokia Online. For instructions, refer to Care Suite User Guide. Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.

  • Page 26: Disassembly Instructions

    RM-678 Service Manual Level 1&2 Disassembly instructions Release BATTERY COVER and remove it in arrow direction. Open USB Door. Unscrew the cross-slot screw. Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 27 Use the SRT-6 to release the first clip of the TOP Open the second clip on the opposite side of the COVER. TOP COVER. Remove the TOP COVER in arrow direction as shown. Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 28 Unscrew the two 4IP torx plus screws. There are two dig hole for A Cover disassembly Release the first clip of the A-COVER with SS-93. Release the second clip. Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 29 Remove A-COVER in arrow direction. the clip on the other side Protect the LCD with a protection foil. Take the A-COVER and release the first of the six clips with an SS-93. Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 30 RM-678 Service Manual Level 1&2 Than the second clip. The third clip. The fourth clip. The fifth clip. Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 31 Remove the Bottom Deco in arrow direction. Remove adhesive residues from D-Cover. Use the tweezers to open the first clip of the UI Open the second clip of the UI SHIELDING. SHIELDING Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 32 Release the UI FPC ASM connector with SS-93 simultaneously lift up the UI SHIELDING. carefully. Remove the UI FPC ASM with tweezers carefully. Lift up LCD CONNECTOR SHIELDING with an angled tweezers lightly on right-hand side. Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 33 Then lift up LCD CONNECTOR SHIELDING with an And remove the LCD CONNECTOR SHIELDING angled tweezers on left-hand side Remove the LCD CONNECTOR SHIELDING. Open the connector of the LCD MODULE with an SS-93 tool. Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 34 Use an SS-93 tool to lift up the LCD MODULE. Remove the LCD MODULE. Unscrew the four 6IP torx plus screws. Use an SS-93 tool to release the SHIELDING and remove it. Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 35 Lift up the adhesive and dust-net combination. remove it. Remove the adhesive and dust-net combination. Open the connector of the SIDE KEY FLEX with an Remove the SIDE KEY FLEX. SS 93 tool. Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 36 Lift up PWB and remove it in arrow direction. Use the SS-88 to disassemble the CAMERA….. ….out of the camera socket. Remove the FRONT CAMERA RUBBER with a tweezers. Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 37 Do the same with the second guiding pin. Lift up the FRONT CAMERA PWB with an SS-93 tool and remove it. Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 38 Release the DC JACK with a plug and remove it. End of disassembling! Release the SECOND CAMERA PCBA connector. Note: To assemble the mobile terminal, follow the “Disassembly Instructions” in reverse order. Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.

  • Page 39: Assembly And Disassembly Hints

    RM-678 Service Manual Level 1&2 Assembly and disassembly hints Order for screw assembly Torque: 4.5 Ncm Torque: 14 Ncm Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 40 RM-678 Service Manual Level 1&2 Torque: 14 Ncm Order for screw disassembly Torque: 4.5 Ncm Torque: 14 Ncm Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
  • Page 41 RM-678 Service Manual Level 1&2 Torque: 14 Ncm Version 1.0 COMPANY CONFIDENTIAL Copyright © 2010 Nokia. All rights reserved.
