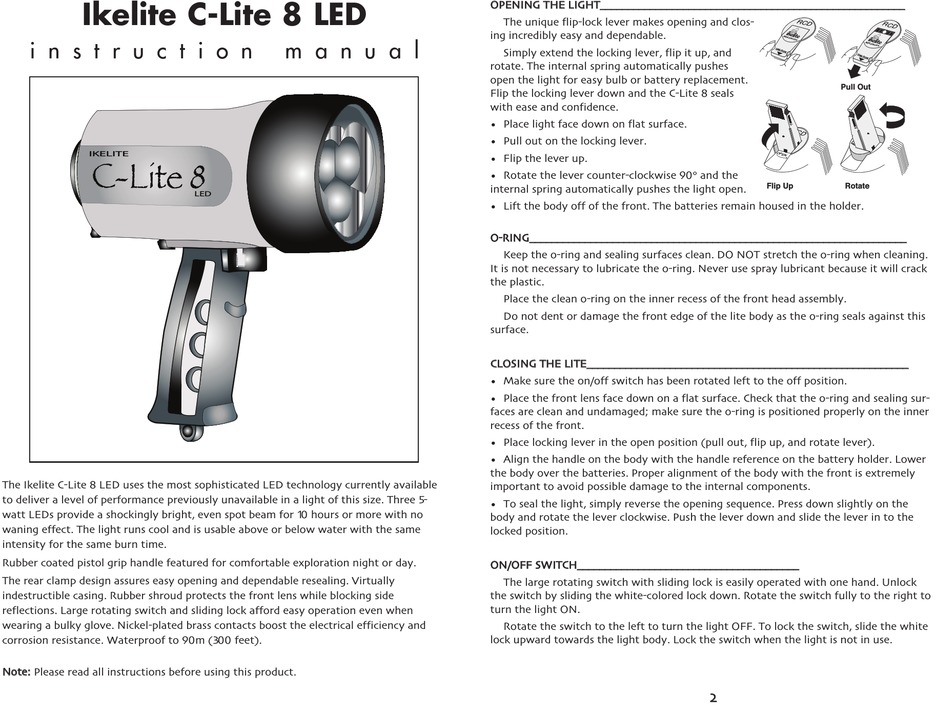

Ikelite C-Lite 8 LED Instruction Manual

Ikelite C-Lite 8 LED
i n s t r u c t i o n
The Ikelite C-Lite 8 LED uses the most sophisticated LED technology currently available
to deliver a level of performance previously unavailable in a light of this size. Three 5-
watt LEDs provide a shockingly bright, even spot beam for 1 0 hours or more with no
waning effect. The light runs cool and is usable above or below water with the same
intensity for the same burn time.
Rubber coated pistol grip handle featured for comfortable exploration night or day.
The rear clamp design assures easy opening and dependable resealing. Virtually
indestructible casing. Rubber shroud protects the front lens while blocking side
reflections. Large rotating switch and sliding lock afford easy operation even when
wearing a bulky glove. Nickel-plated brass contacts boost the electrical efficiency and
corrosion resistance. Waterproof to 90m (300 feet).
N N o o t t e e : : Please read all instructions before using this product.
m a n u a l
O O P P E E N N I I N N G G T T H H E E L L I I G G H H T T _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
The unique flip-lock lever makes opening and clos-
ing incredibly easy and dependable.
Simply extend the locking lever, flip it up, and
rotate. The internal spring automatically pushes
open the light for easy bulb or battery replacement.
Flip the locking lever down and the C-Lite 8 seals
with ease and confidence.
• Place light face down on flat surface.
• Pull out on the locking lever.
• Flip the lever up.
• Rotate the lever counter-clockwise 90° and the
internal spring automatically pushes the light open.
• Lift the body off of the front. The batteries remain housed in the holder.
O O - - R R I I N N G G _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Keep the o-ring and sealing surfaces clean. DO NOT stretch the o-ring when cleaning.
It is not necessary to lubricate the o-ring. Never use spray lubricant because it will crack
the plastic.
Place the clean o-ring on the inner recess of the front head assembly.
Do not dent or damage the front edge of the lite body as the o-ring seals against this
surface.
C C L L O O S S I I N N G G T T H H E E L L I I T T E E _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
• Make sure the on/off switch has been rotated left to the off position.
• Place the front lens face down on a flat surface. Check that the o-ring and sealing sur-
faces are clean and undamaged; make sure the o-ring is positioned properly on the inner
recess of the front.
• Place locking lever in the open position (pull out, flip up, and rotate lever).
• Align the handle on the body with the handle reference on the battery holder. Lower
the body over the batteries. Proper alignment of the body with the front is extremely
important to avoid possible damage to the internal components.
• To seal the light, simply reverse the opening sequence. Press down slightly on the
body and rotate the lever clockwise. Push the lever down and slide the lever in to the
locked position.
O O N N / / O O F F F F S S W W I I T T C C H H _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
The large rotating switch with sliding lock is easily operated with one hand. Unlock
the switch by sliding the white-colored lock down. Rotate the switch fully to the right to
turn the light ON.
Rotate the switch to the left to turn the light OFF. To lock the switch, slide the white
lock upward towards the light body. Lock the switch when the light is not in use.
OPENING THE LITE
Pull Out
Flip Up Rotate
